Each plate of an air filled parallel plate air capacitor has an area of 0 040m^2,...

Each plate of an air filled parallel plate air capacitor has an area of 0 040m^2, and the separation of the plate is 0.800mm. A battery with voltage V is attached to the capacitor and it stores a potential energy of 39.7uJ bw the plates . Determine the battery voltage.
a. 1.8MV
b. 38V
c.420V
d.1.3 kV
e.2.1 MV

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

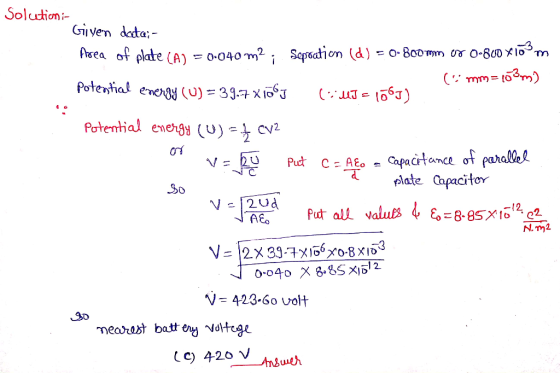

Answer #1

0 0
