Two masses m1 = 5 kg and m2 = 10 kg which are connected by a...

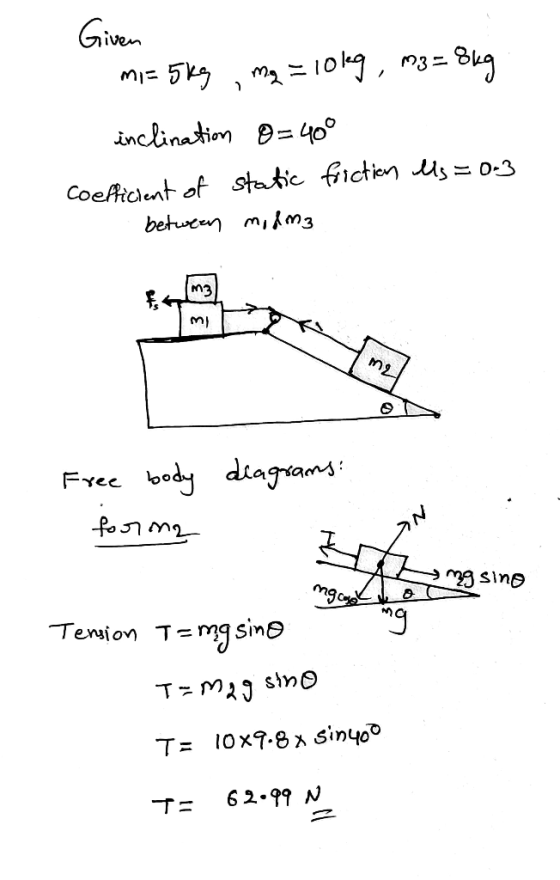

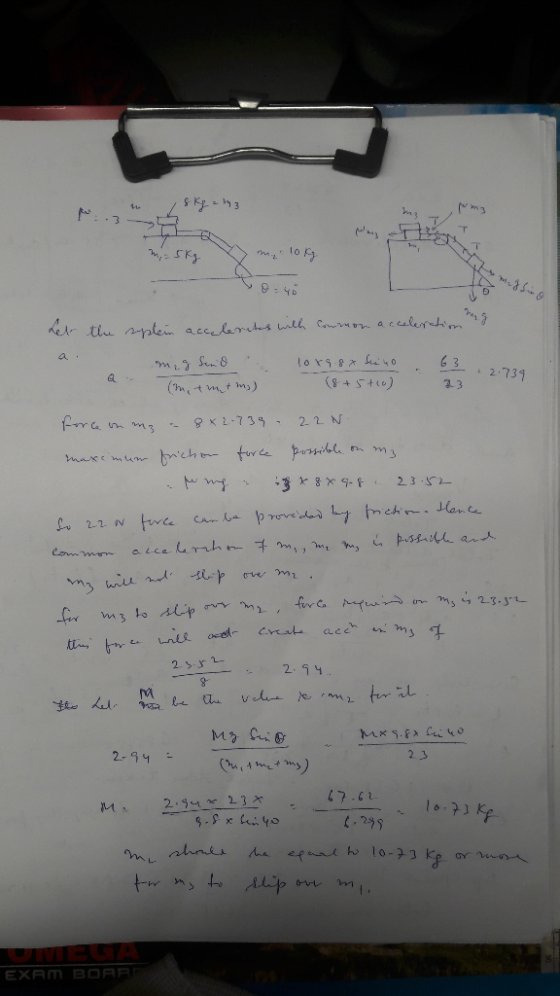

Two masses m1 = 5 kg and m2 = 10 kg which are connected by a pulley with mass m2 on an inclined plane of θ= 40. A third block m3 = 8kg is found on block m1. The horizontal surface and inclined surface have no friction, but the coefficient of static friction between the two blocks is 0.3.

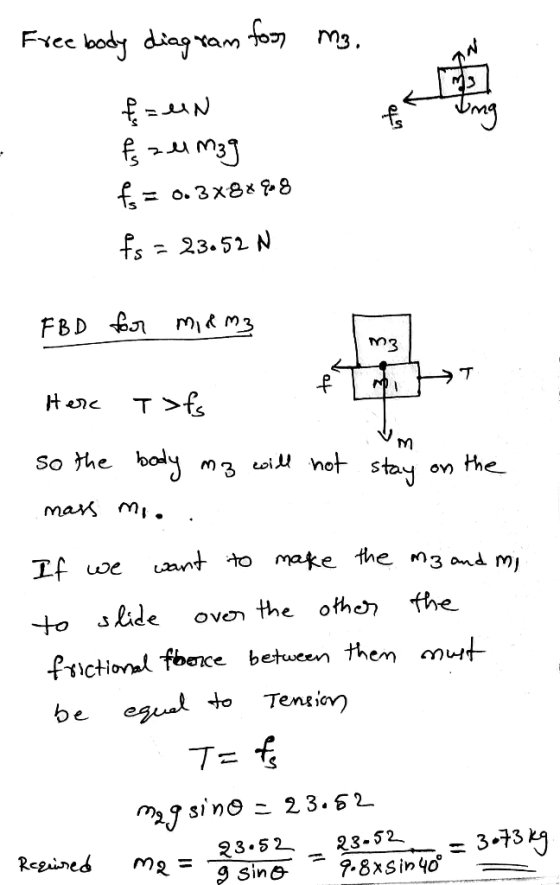

Will the m3 block stay on block m1 or will it slip?
What m2 mass would be needed to cause the two blocks to slide
one over the other?
