A tablet has a 7.5- × 5.8-inch screen size with a resolution of 326 pixels per...

A tablet has a 7.5- × 5.8-inch screen size with a resolution of 326 pixels per inch. (a) How many pixels does it have? (b) With 256 levels of brightness for each color subpixel, what is the MiB size of the display memory

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1
a)
total number of pixels = (7.5*326)*(5.8*326) = ‭46,23,006‬
Answer: 4623006‬

b)
for 256 levels, it takes log(256) = 8 bits, which is 1 byte
there are 3 colors(red, green, blue).
so, total size for one pixel is 3 bytes
total amount of memory = 4623006‬*3 = ‭13869018‬ bytes.
= ‭13869018‬ / 1024 KB
= ‭13543.962890625‬ KB
= 13543.962890625‬/1024 KB
= ‭13.2265262603759765625‬ MB
Answer: 13.23 MB
0 0
Add a comment
Know the answer?
Add Answer to:
A tablet has a 7.5- × 5.8-inch screen size with a resolution of 326 pixels per...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • 17. (a) A desktop laser printer has a 300 dots-per-inch resolution. If each dot is stored...

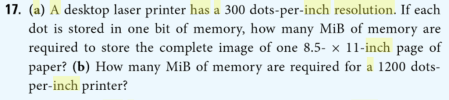

    17. (a) A desktop laser printer has a 300 dots-per-inch resolution. If each dot is stored in one bit of memory, how many MiB of memory are required to store the complete image of one 8.5-x 11-inch page of paper? (b) How many MiB of memory are required for a 1200 dots- per-inch printer?
