Question

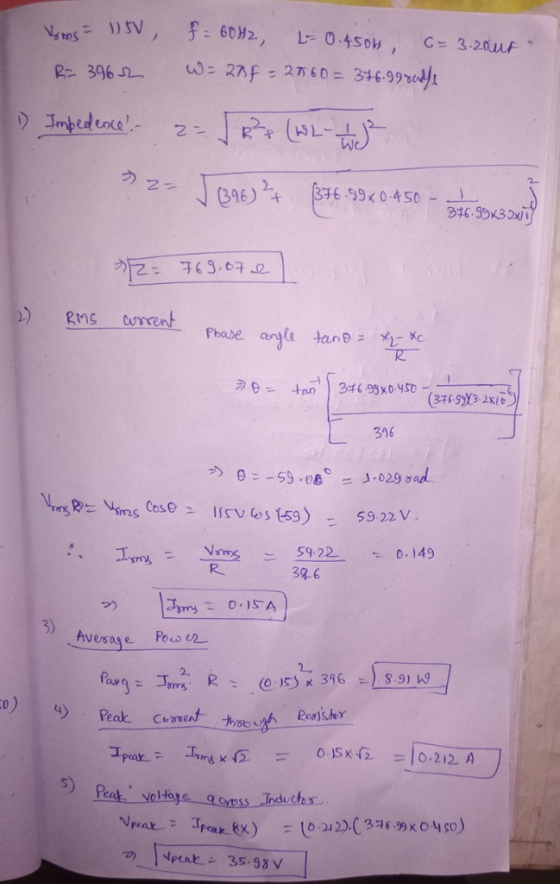

An AC generator supplies an rms voltage of 115 V at 60.0 Hz. It is connected in series with a 0.450 H inductor, a 3.20 μF capacitor and a 396 Ω resistor.

What is the impedance of the circuit?
7.69×10² ohm

You are correct.

Previous Tries

What is the rms current through the resistor?
1.50×10^-1 A

You are correct.

Previous Tries

What is the average power dissipated in the circuit?

Power is only dissipated in a resistor. Thus, you have to multiply the rms current times the rms voltage for the resistor.

Incorrect.

Tries 1/20

Previous Tries

What is the peak current through the resistor?

You can use an equation similar to Ohm's law for an RLC circuit. Remember the relation between peak and rms currents or voltages.

Incorrect.

Tries 1/20

Previous Tries

What is the peak voltage across the inductor?

Use an equation similar to Ohm's law that includes the inductive reactance.

Incorrect.

Tries 1/20

Previous Tries

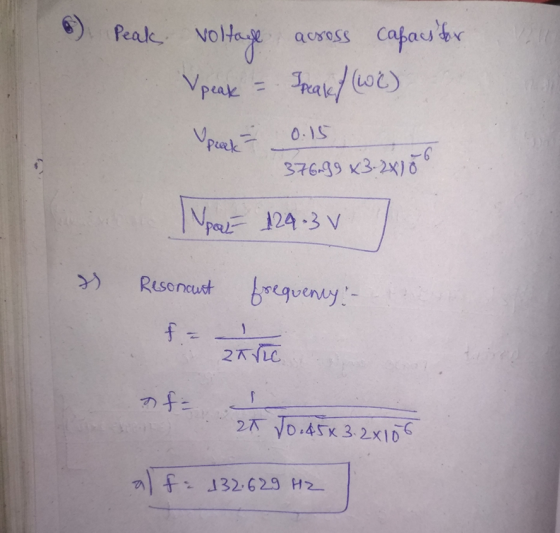

What is the peak voltage across the capacitor?

Use an equation similar to Ohm's law that includes the capacitive reactance.

Incorrect.

Tries 1/20

Previous Tries

The generator frequency is now changed so that the circuit is in resonance. What is that new (resonance) frequency?

Answer 1
