A 6 cylinder, 4-stroke spark ignition engine operates at 5000 RPM. The engine burns gasoline at...
A 6 cylinder, 4-stroke spark ignition engine operates at 5000 RPM. The engine burns gasoline at the rate of 0.01 kg/s. Each cylinder has a stroke of 8 cm and a bore of 6.5 cm. The indicated fuel conversion efficiency is 28%. The brake mean effective pressure is 800 kPa. Calculate the mechanical efficiency and the brake specific fuel consumption for this engine
Using text Book: John B. Heywood - Internal Combustion Engine Fundamental 2nd edition
Homework Answers

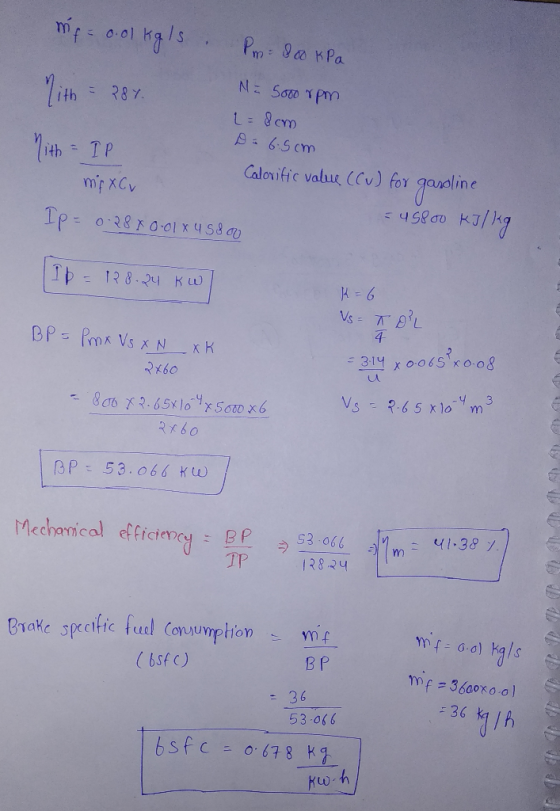

I have solved the question
step by step and neatly so that you can understand the solution
easily and quickly. Hope you thumpsup for the efforts. Thank
you.
