A series R-L circuit is connected to a 120 V, 60 Hz source. The circuit consists...

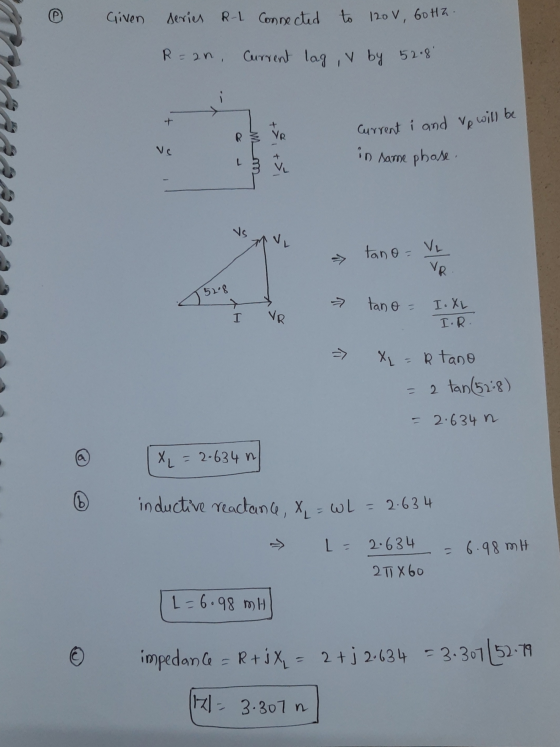

A series R-L circuit is connected to a 120 V, 60 Hz source. The circuit consists of a 2 Ω resistor and an inductor. The current is lagging the voltage by 52.8°.

a. Calculate the reactance, XL.

b. Calculate the value of the inductor L, in henries.

c. Calculate the impedance, ZT.

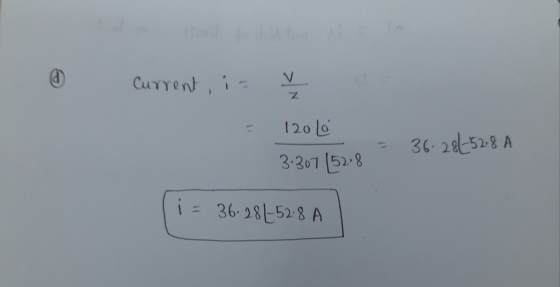

d. Calculate the current.

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
