A 1.00 cm tall bug is 40cm from a convex spherical mirror of radius 20cm. A....

A 1.00 cm tall bug is 40cm from a convex spherical mirror of radius 20cm.

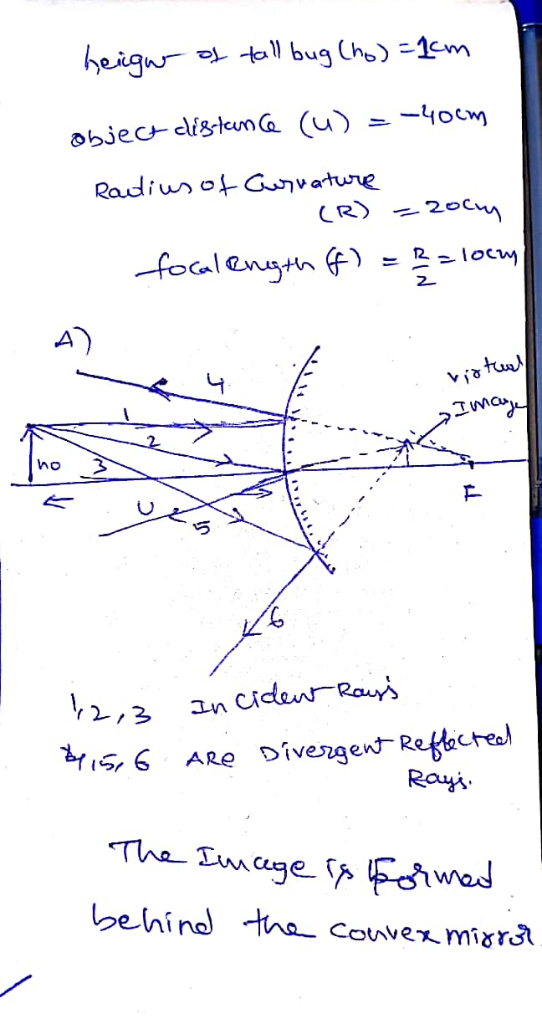

A. Graphically locate the image of the bug, find the height if the bugs image. Is it real/virtual? Erect/inverted?

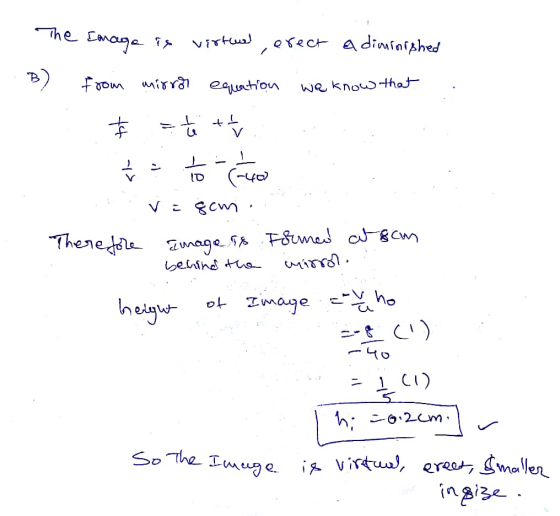

B. Repeat all of part A, but use the mirror equation method.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A 1.00 cm tall bug is 40cm from a convex spherical mirror of radius 20cm. A....
