A fluid in a saturated soil is 6.5 m above a reference datum. The fluid pressure...
A fluid in a saturated soil is 6.5 m above a reference datum. The fluid pressure is 1800 Pa, and the flow velocity is 3.4 × 10−5 m/s. The fluid density is 1.01 × 103 kg/m3 .

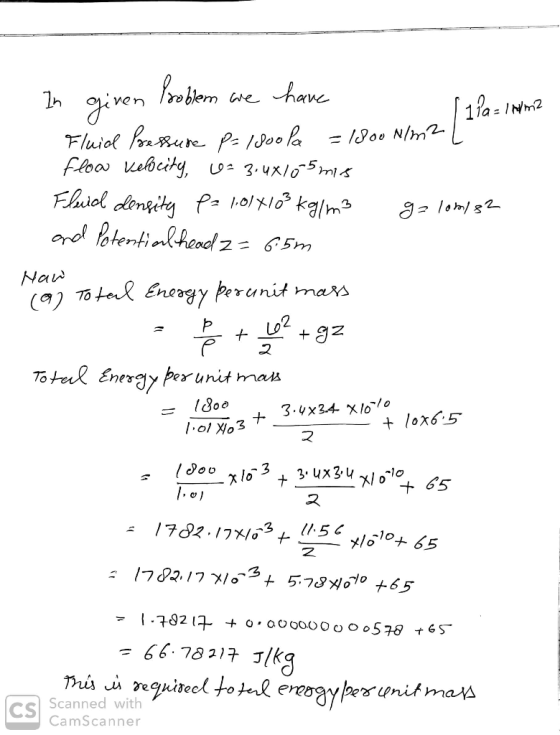

(a) What is the total energy per unit mass?

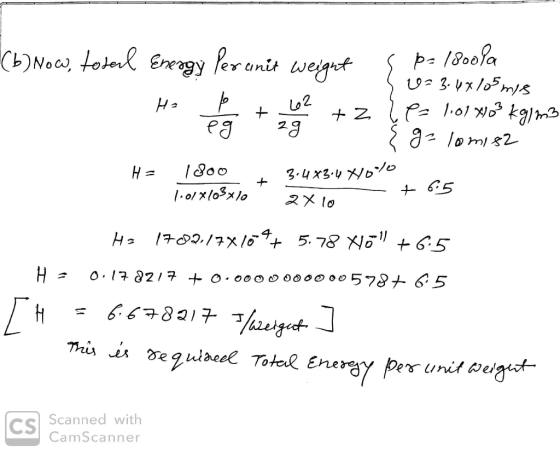

(b) What is the total energy per unit weight?
Homework Answers
