What is the resistance of a 60.1 -m-long aluminum wire that has a diameter of 8.43...

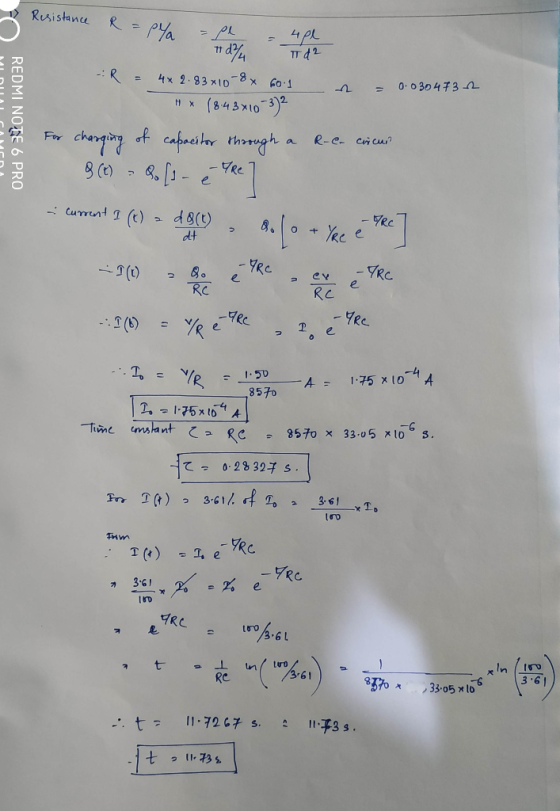

What is the resistance of a 60.1 -m-long aluminum wire that has a diameter of 8.43 mm ? The resistivity of aluminum is 2.83×10−8 Ω · m .
Resistance=?
An initially uncharged 33.05×10−6 F capacitor and a 8570Ω resistor are connected in series to a 1.50 V battery that has negligible internal resistance.
What is the initial current ?0I0 in the circuit?
?0=
Calculate the circuit's time constant ?τ .
?=
s
How much time ?t must elapse from the closing of the circuit for the current to decrease to3.61% of its initial value?
Homework Answers
Add Answer to:
What is the resistance of a 60.1 -m-long aluminum wire that has
a diameter of 8.43...
An initially uncharged 4.59×10−6 F capacitor and a 7910 Ω resistor are connected in series to...
An initially uncharged 4.59×10−6 F capacitor and a 7910 Ω resistor are connected in series to a 1.50 V battery that has negligible internal resistance. What is the initial current ?0 in the circuit? ?0= ________A Calculate the circuit's time constant ? . ?=______________ s How much time ? must elapse from the closing of the circuit for the current to decrease to 2.23 % of its initial value? ?= __________s
An initially uncharged 3.49 x 10-6 F capacitor and a 6770 12 resistor are connected in...
An initially uncharged 3.49 x 10-6 F capacitor and a 6770 12 resistor are connected in series to a 1.50 V battery that has negligible internal resistance. What is the initial current I, in the circuit? Io = 2.2 x10-4 Calculate the circuit's time constant T. T= 2.3 x10-2 How much time t must elapse from the closing of the circuit for the current to decrease to 2.29% of its initial value? t= 3.4 X10-2
increase by a factor of 4 deacrease by a factor of 4 increase by a factor...
increase by a factor of 4
deacrease by a factor of 4
increase by a factor of 2
decrease by a factor of 2
be unaltered
23.5 ms
46.5 ms
62.5 ms
80.5 ms
100 ms
If a 2-Ohm resistor is used instead of a 1-Ohm resistor for the charging process of the capacitor shown in the circuit, the time constant will: An initially uncharged 3.27 uF capacitor and a 7.35 kn resistor are connected in series to a 1.50...
What is the resistance of a 61.1-m-long aluminum wire that has a diameter of 7.77 mm?...
What is the resistance of a 61.1-m-long aluminum wire that has a diameter of 7.77 mm? The resistivity of aluminum is 2.83x 10-8 Ω . m. resistance:
An initially uncharged 3.83 × 10-6 F capacitor and a 8590 Ω resistor are connected in...
An initially uncharged 3.83 × 10-6 F capacitor and a 8590 Ω resistor are connected in series to a 1.50 V battery that has negligible internal resistance. What is the initial current in the circuit?
A 16.50 ?? long wire has a diameter of 0.355 ?? and a resistivity of7.65 ?...
A 16.50 ?? long wire has a diameter of 0.355 ?? and a resistivity of7.65 ? 10,- Ω ??. ( a ) Calculate its resistance (b) If a 3.85 ???? battery is connected to the wire, what current exists in the circuit? I changed those three values to meters as below, what do I do next please Length = 0.165 m Diameter = 0.000355 m Resistivity = 7.65 * 10^-9 Ω m
Calculate the ratio of the resistance of 11.0 m of aluminum wire 2.5 mm in diameter,...
Calculate the ratio of the resistance of 11.0 m of aluminum wire 2.5 mm in diameter, to 23.0 m of copper wire 1.9 mm in diameter. The resistivity of copper is 1.68×10−8Ω⋅m and the resistivity of aluminum is 2.65×10−8Ω⋅m. --------------------- A length of aluminum wire is connected to a precision 10.00-Vpower supply, and a current of 0.4132 A is precisely measured at 23.5 ∘C. The wire is placed in a new environment of unknown temperature where the measured current is...
Calculate the ratio of the resistance of 12.0 m of aluminum wire 2.4 mm in diameter,...
Calculate the ratio of the resistance of 12.0 m of aluminum wire 2.4 mm in diameter, to 26.0 m of copper wire 1.8 mm in diameter. The resistivity of copper is 1.68× 10 −8 Ω⋅m and the resistivity of aluminum is 2.65× 10 −8 Ω⋅m .
Calculate the ratio of the resistance of 12.0 m of aluminum wire 2.0 mm in diameter,...
Calculate the ratio of the resistance of 12.0 m of aluminum wire 2.0 mm in diameter, to 20.0 m of copper wire 2.5 mm in diameter. Assume electrical resistivity of aluminum is 2.65×10−8 Ω⋅m and electrical resistivity of copper is 1.68×10−8 Ω⋅m. Answer in RAl/RCu =
You charge an initially uncharged 87.5 -mF capacitor through a 42.7 -Ω resistor by means of...
You charge an initially uncharged 87.5 -mF capacitor through a 42.7 -Ω resistor by means of a 9.00 -V battery having negligible internal resistance. Find the time constant τ of the circuit. τ = s What is the charge Q on the capacitor 1.13 time constants after the circuit is closed? Q = C What is the charge Q 0 after a long amount of time has passed? Q 0 = C
An initially uncharged 3.49 x 10-6 F capacitor and a 6770 12 resistor are connected in series to a 1.50 V battery that has negligible internal resistance. What is the initial current I, in the circuit? Io = 2.2 x10-4 Calculate the circuit's time constant T. T= 2.3 x10-2 How much time t must elapse from the closing of the circuit for the current to decrease to 2.29% of its initial value? t= 3.4 X10-2
increase by a factor of 4
deacrease by a factor of 4
increase by a factor of 2
decrease by a factor of 2
be unaltered
23.5 ms
46.5 ms
62.5 ms
80.5 ms
100 ms
If a 2-Ohm resistor is used instead of a 1-Ohm resistor for the charging process of the capacitor shown in the circuit, the time constant will: An initially uncharged 3.27 uF capacitor and a 7.35 kn resistor are connected in series to a 1.50...
What is the resistance of a 61.1-m-long aluminum wire that has a diameter of 7.77 mm? The resistivity of aluminum is 2.83x 10-8 Ω . m. resistance:
