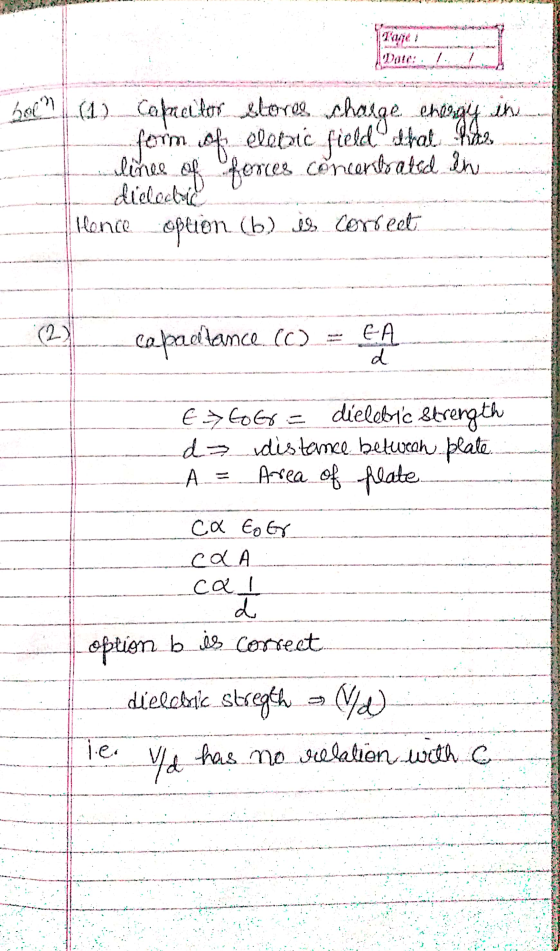

1) Capacitor stores energy in the form of electric field that has lines of force concentrated:...
|
||||||||||
|
Homework Answers
Add Answer to:
1)
Capacitor stores energy in the form of electric field that has
lines of force concentrated:...
A parallel plate capacitor has square plates with sides of length 11 cm. The distance between...
A parallel plate capacitor has square plates with sides of length 11 cm. The distance between the plates is 2 mm. The plates are charged up to 20volts. Part A What is the electric field between the plates? Express your answer using three significant figures. Electric field = N/C Part B What is the amount of charge on each plate? charge = C Part C What is the capacitance? Capacitance = μF Part D What is the energy stored by...
An electron is released from rest at the negative plate of a parallel plate capacitor and...
An electron is released from rest at the negative plate of a
parallel plate capacitor and accelerates to the positive plate (see
the drawing). The plates are separated by a distance of 1.7 cm, and
the electric field within the capacitor has a magnitude of 2.7 x
106 V/m. What is the kinetic energy of the electron just as it
reaches the positive plate? The figure shows a vertical plate on
the left that is negatively charged and another vertical...
(a) State the units of electric potential and electric potential energy. Sketch an equipotential ...
(a) State the units of electric potential and electric potential energy. Sketch an equipotential surface at a distance r from a point charge q and state the magnitude of the work done in moving a small test charge along that surface. [5 marks] (b) The figure below shows four representations (labelled A, B, C and D, respectively), of the electric field lines between the plates of a parallel plate capacitor. Identify which drawing is correct and indicate what is incorrect...
Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A...
Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A and distance between plates d. Capacitor is connected to the battery of voltage V, fully charged and then disconnected. A slab of dielectric material with dielectric constant 4 is then inserted into capacitor, completely filling region between plates. Electric field between plates of capacitor: decreases twice stays the same increases twice decreases 4 times increases 4 times
Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A...
Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A and distance between plates d. Capacitor is connected to the battery of voltage V, fully charged and stays connected. A slab of dielectric material with dielectric constant 4 is then inserted into capacitor, completely filling region between plates. Electric field between plates of capacitor: O stays the same O increases twice O decreases twice O decreases 4 times O increases 4 times
1. part A)In the electric field mapping experiment, the direction of electric field lines for a...
1. part A)In the electric field mapping experiment, the direction of electric field lines for a positively charged object is outward or inward the object? part B) In the electric field mapping experiment, the direction of electric field lines for a negatively charged object is outward or inward the object? part C) In the electric field mapping experiment, the electric potential increases as you move from negative plate (on the left) to positive plate (on the right). What is the...
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of...
A parallel-plate capacitor has a plate area of A = 250 cm2 and a separation of d = 2.00 mm. The capacitor is charged to a potential difference of V0 = 150 V by a battery. A dielectric sheet (κ = 3.50) of the same area but thickness ℓ = 1.00 mm is placed between the plates without disconnecting the battery. (See figure 24-18 on page 642). Determine the initial capacitance of the air-filled capacitor. Determine the charge on the...
A parallel plate capacitor is made of plates of area 0.05 m? each. The plates are...
A parallel plate capacitor is made of plates of area 0.05 m? each. The plates are separated by a distance of 0.200 mm. Initially, the space between the plates is filled with air. (a) What is the capacitance of this air-filled capacitor? (b) If the electric field inside the capacitor exceeds 3.00 x 106 V/m, the air undergoes electrical break- down. (This maximum field is known as the dielectric strength of air.) From this, calculate the maxi- mum voltage (potential...
A fully charged capacitor consists of parallel plates, which have an overlapping area of 4.00 mm2...
A fully charged capacitor consists of parallel plates, which have an overlapping area of 4.00 mm2 and are separated by a dielectric material with a relative permittivity of 4.50. The charge on the capacitor is 1.85 × 10-11 C. Calculate the strength of the electric field between the plates.
Which of the following would increase the capacitance of a parallel-plate capacitor? I. Insert a dielectric...
Which of the following would increase the capacitance of a parallel-plate capacitor? I. Insert a dielectric between the plates. II. Increase the surface area of each plate. III. Increase the separation distance between the plates. O I and II only OII and III only All of the above. A capacitor is charged with a battery to a voltage V and then disconnected from the battery. A dielectric is inserted between the plates. When the dielectric is inserted, what happens to...
An electron is released from rest at the negative plate of a
parallel plate capacitor and accelerates to the positive plate (see
the drawing). The plates are separated by a distance of 1.7 cm, and
the electric field within the capacitor has a magnitude of 2.7 x
106 V/m. What is the kinetic energy of the electron just as it
reaches the positive plate? The figure shows a vertical plate on
the left that is negatively charged and another vertical...
(a) State the units of electric potential and electric potential energy. Sketch an equipotential surface at a distance r from a point charge q and state the magnitude of the work done in moving a small test charge along that surface. [5 marks] (b) The figure below shows four representations (labelled A, B, C and D, respectively), of the electric field lines between the plates of a parallel plate capacitor. Identify which drawing is correct and indicate what is incorrect...
Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A and distance between plates d. Capacitor is connected to the battery of voltage V, fully charged and then disconnected. A slab of dielectric material with dielectric constant 4 is then inserted into capacitor, completely filling region between plates. Electric field between plates of capacitor: decreases twice stays the same increases twice decreases 4 times increases 4 times
Question 4 1 pts A parallel-plate capacitor of capacitance C has the area of plates A and distance between plates d. Capacitor is connected to the battery of voltage V, fully charged and stays connected. A slab of dielectric material with dielectric constant 4 is then inserted into capacitor, completely filling region between plates. Electric field between plates of capacitor: O stays the same O increases twice O decreases twice O decreases 4 times O increases 4 times
A parallel plate capacitor is made of plates of area 0.05 m? each. The plates are separated by a distance of 0.200 mm. Initially, the space between the plates is filled with air. (a) What is the capacitance of this air-filled capacitor? (b) If the electric field inside the capacitor exceeds 3.00 x 106 V/m, the air undergoes electrical break- down. (This maximum field is known as the dielectric strength of air.) From this, calculate the maxi- mum voltage (potential...
Which of the following would increase the capacitance of a parallel-plate capacitor? I. Insert a dielectric between the plates. II. Increase the surface area of each plate. III. Increase the separation distance between the plates. O I and II only OII and III only All of the above. A capacitor is charged with a battery to a voltage V and then disconnected from the battery. A dielectric is inserted between the plates. When the dielectric is inserted, what happens to...
