A square frame with 2.0 m on each side moves horizontally at a speed of 0.95c...

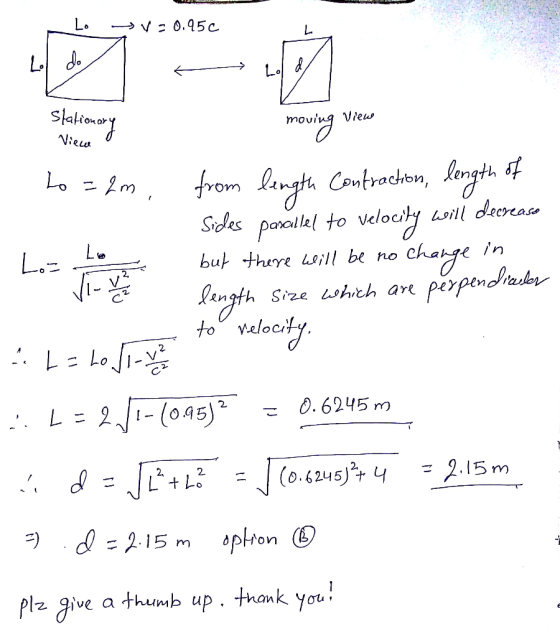

A square frame with 2.0 m on each side moves horizontally at a speed of 0.95c parallel to one of its sides. What is the size of the diagonal as seen by the observer watching the frame moving?
A. 2.6 m
B. 2.1 m
C. 0.62 m
D. 0.88 m
E. 2.80 m
Homework Answers
