962) A spring that can be assumed to be ideal hangs from a stand, as shown...
962) A spring that can be assumed to be ideal hangs from a stand,
as shown above.

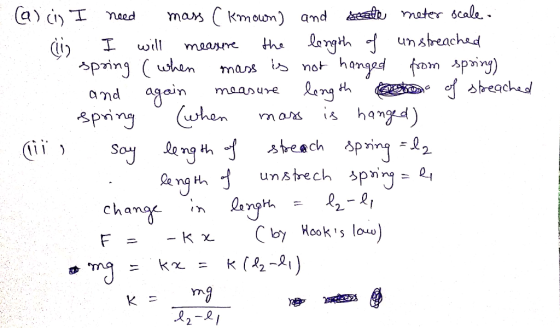

a. You wish to determine experimentally the spring constant k of
the spring. i. What additional, commonly available equipment would
you need?
ii. What measurements would you make?
iii. How would k be determined from these measurements?

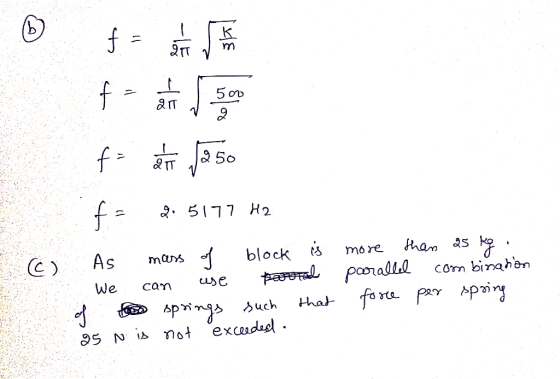

b. Assume that the spring constant is determined to be 500 N/m.
A 2.0-kg mass is attached to the lower end of the spring and
released from rest. Determine the
frequency of oscillation of the mass.
c. Suppose that the spring is now used in a spring scale that is limited to a maximum value of 25 N, but you would like to weigh an object of mass M that weighs more than 25 N. You must use commonly available equipment and the spring scale to determine the weight of the object without breaking the scale.
