V3+(aq) + e− ⇌ V2+(aq) E° = -0.255 V 2H+(aq) + 2e− ⇌ H2(g) E° =...
| V3+(aq) + e− ⇌
V2+(aq) E° = -0.255 V |
2H+(aq) + 2e− ⇌ H2(g) |

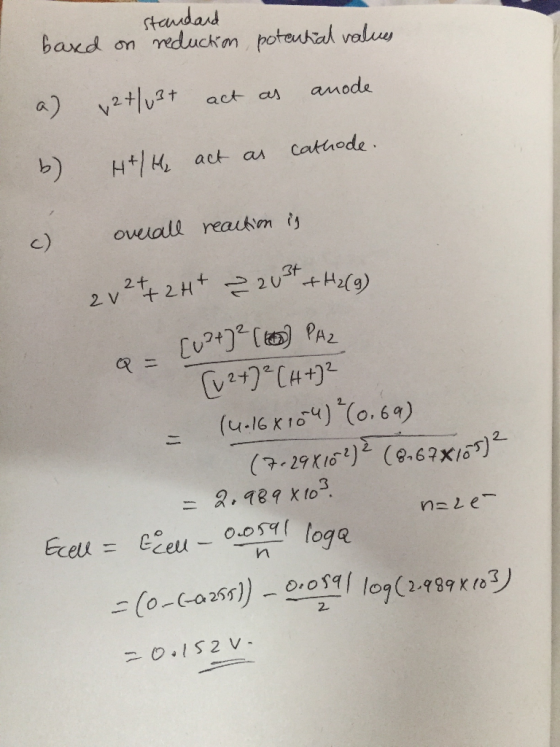

3. The electrochemical
cell is comprised of a Pt electrode in a 4.16 × 10-4 M
solution of V3+ and 7.29 × 10-2 M solution of
V2+ coupled to a Pt electrode where the [H+]
is 8.67 × 10-5 M and the partial pressure of
H2(g) is 0.690 atm. The temperature of this cell is held
constant at 298.15 K
(a) Under these conditions, the half-cell containing V2+
and V3+ is the anode/cathode
(b) Under these conditions, the half-cell containing H+ and H2 is the anode/cathode
(c) What is Ecell (in V) for this electrochemical cell? Report your answer to three decimal places in standard notation (i.e., 0.123 V).
Homework Answers
Pb2+(aq) + 2e− ⇌ Pb(s) E° = -0.126 V 2H+(aq) + 2e− ⇌ H2(g) E° =...
Pb2+(aq) + 2e− ⇌ Pb(s) E° = -0.126 V 2H+(aq) + 2e− ⇌ H2(g) E° = 0.000 V E°cell (in V)= 0.126 V 2. The electrochemical cell is comprised of a Pb electrode in a 1.67 × 100 M solution of Pb2+ (aq) coupled to a Pt electrode in a solution containing H+ (aq) where the pH of the solution is 0.37 and the partial pressure of H2(g) is 0.571 atm. The temperature of the cell is held constant at...
1. Answer the following questions under standard conditions
Ag3+(aq) + e− ⇌ Ag2+(aq)E° = 1.800 V2H+(aq) + 2e− ⇌ H2(g)E° = 0.000 V1. Answer the following questions under standard conditions(a) The half-cell containing Ag2+/Ag3+ is the cathode .(b) The half-cell containing H+/H2 is the anode .(c) What is E°cell (in V)? Report your answer to three decimal places in standard notation (i.e., 0.123 V).1.800 V(b) What is ΔG° (in kJ/mol) for the process that is occurring in the electrochemical cell? Report your answer to three significant figures in...
An electrochemical cell consists of a Pt|H+(aq,1.00 M)|H2(g) cathode connected to a Pt|H+(aq)|H2(g) anode in which...
An electrochemical cell consists of a Pt|H+(aq,1.00 M)|H2(g) cathode connected to a Pt|H+(aq)|H2(g) anode in which the H+ concentration is that of a buffer consisting of a weak acid, HA(0.160 M), mixed with its conjugate base, A-(0.120 M). The measured cell voltage is E°cell = 0.228 V at 25 °C, with PH2 = 1.00 atm at both electrodes. Calculate the pH in the buffer solution and the Ka of the weak acid. pH = Ka =
An electrochemical cell consists of a Pt|H+(aq,1.00 M)|H2(g) cathode connected to a Pt|H+(aq)|H2(g) anode in which...
An electrochemical cell consists of a Pt|H+(aq,1.00 M)|H2(g) cathode connected to a Pt|H+(aq)|H2(g) anode in which the H+ concentration is that of a buffer consisting of a weak acid, HA(0.136 M), mixed with its conjugate base, A-(0.142 M). The measured cell voltage is E°cell = 0.196 V at 25 °C, with PH2 = 1.00 atm at both electrodes. Calculate the pH in the buffer solution and the Ka of the weak acid. pH = _______ Ka = _______
Answer the following questions related to the givenelectrochemical cell under standard conditions.W3+(aq) + 3e−...
Answer the following questions related to the given electrochemical cell under standard conditions.W3+(aq) + 3e− ⇌ W(s)E° = 0.100 VCo2+(aq) + 2e− ⇌ Co(s)E° = -0.280 V1. Answer the following questions.(a) The half cell containing W/W3+ is the anode/ cathode(b) Which one of the following statements isTRUE for the half cell containing W and W3+.W3+ will be oxidized to form W.W3+ will be reduced to form W.W will be reduced to form W3+.W will be oxidized to form W3+.(c) The half...
8) An electrochemical cell consists of a Pt|H+(aq,1.00 M)|H2(g) cathode connected to a Pt|H+(aq)|...
8) An electrochemical cell consists of a Pt|H+(aq,1.00 M)|H2(g) cathode connected to a Pt|H+(aq)|H2(g) anode in which the H+concentration is that of a buffer consisting of a weak acid, HA(0.115 M), mixed with its conjugate base, A-(0.192 M). The measured cell voltage is E°cell = 0.168 V at 25 °C, with PH2 = 1.00 atm at both electrodes. Calculate the pH in the buffer solution and the Ka of the weak acid. pH = Ka =
2. The electrochemical cell is comprised of a Mo electrode in a 3.87 × 10-1 M...
2. The electrochemical cell is comprised of a Mo electrode in a 3.87 × 10-1 M solution of Mo3+ (aq) coupled to a Pt electrode in a solution containing H+ (aq) where the pH of the solution is 0.16 and the partial pressure of H2(g) is 1.018 atm. The temperature of the cell is held constant at 25°C. (a)What is Ecell (in V) for the electrochemical cell? Report your answer to three decimal places in standard notation (i.e., 0.123 V)...
OV L'0000 V Whats Report you to two three decalcesidad (b) the electrochemical comprised of all...
OV L'0000 V Whats Report you to two three decalcesidad (b) the electrochemical comprised of all electrode in a 7.86 10 solution of led to a 15 marks the of the col competent on the is incredo answer to three decimal places in standard m one, 123V). Tit(aq) + e- TH(s) E = -0.336 V 2H(aq) + 2e- H2() E = 0.000 V (a) [1 mark] What is Eºcell (in V)? Report your answer to two three decimal places in...
consider the electrochemical cell 2H^+ (aq)+ Cd(s) = Cd^2+ (aq) + H2(g) Ecell°=0.40 V what would...
consider the electrochemical cell 2H^+ (aq)+ Cd(s) = Cd^2+ (aq) + H2(g) Ecell°=0.40 V what would increase measured cell potential reducing H+ in hydrogen cell increasing the mass of the solid CD electrode reducing cd^2+ ion concentration increasing pressure of hydrogen gas in hydrogen cell none when 1.00kj(1000 j) of heat is added to 50.0 g of water how should the temp of the water change?
1. Use the following standard cell potentials to answer the questions below. Yb3+(aq) + 3e− ⇌...
1. Use the following standard cell potentials to answer the questions below. Yb3+(aq) + 3e− ⇌ Yb(s) E° = -2.190 V Au3+(aq) + 2e− ⇌ Au+(aq) E° = 1.401 V (a) What is ΔG° (in kJ/mol) for this reaction? Report answer to three significant figures in scientific notation (i.e., 1.23e2 kJ/mol) (b) ) This reaction is （spontaneous or not spontaneous）. 2. Determine Ecell (in V) at 298.15 K for a cell composed of a platinum electrode in a mixture of...
OV L'0000 V Whats Report you to two three decalcesidad (b) the electrochemical comprised of all electrode in a 7.86 10 solution of led to a 15 marks the of the col competent on the is incredo answer to three decimal places in standard m one, 123V). Tit(aq) + e- TH(s) E = -0.336 V 2H(aq) + 2e- H2() E = 0.000 V (a) [1 mark] What is Eºcell (in V)? Report your answer to two three decimal places in...
