Can someone help me finish my prelab please? PROCEDURE (Pre-lab) Series: Draw a schematic diagram of...

Can someone help me finish my prelab please?

PROCEDURE (Pre-lab)

Series:

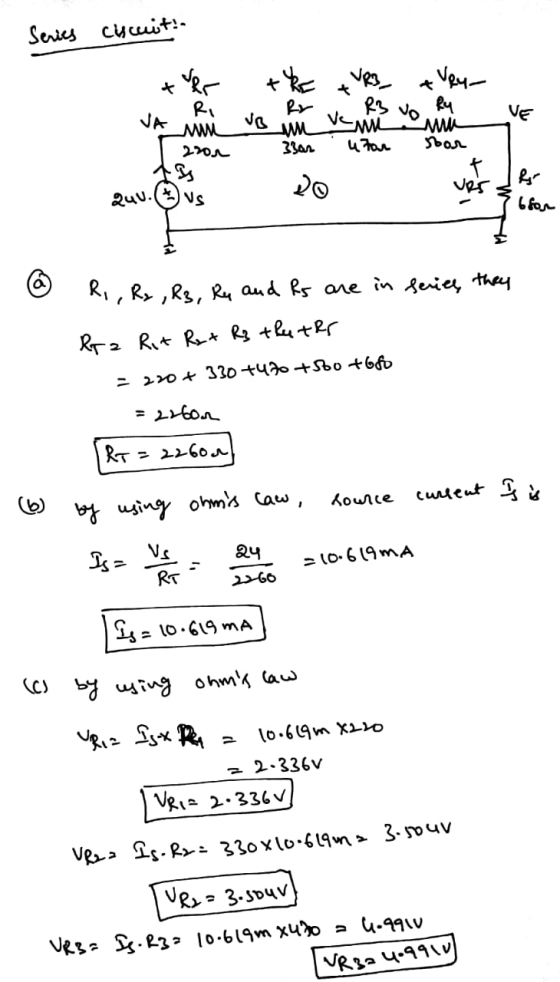

  1. Draw a schematic diagram of a series circuit consisting of a 24V d-c voltage source and 5 series resistors. Label the resistors R1 through R5. Use standard symbols to represent the voltage source and resistors. Also, make sure to label the REFERENCE (lowest point of potential). The resistor values to be used in the experiment are 220 Ω, 330 Ω, 470 Ω, 560 Ω, and 680 Ω.

    Label points (nodes) around the circuit as points A, B, C, etc.
  2. Calculate:
    1. Calculate the total resistance (RT) of the series circuit.
    2. Calculate the source current (IS).
    3. Calculate the voltage drop across each resistor in the circuit and label these voltages VR1, VR2, VR3, VR4, and VR5.

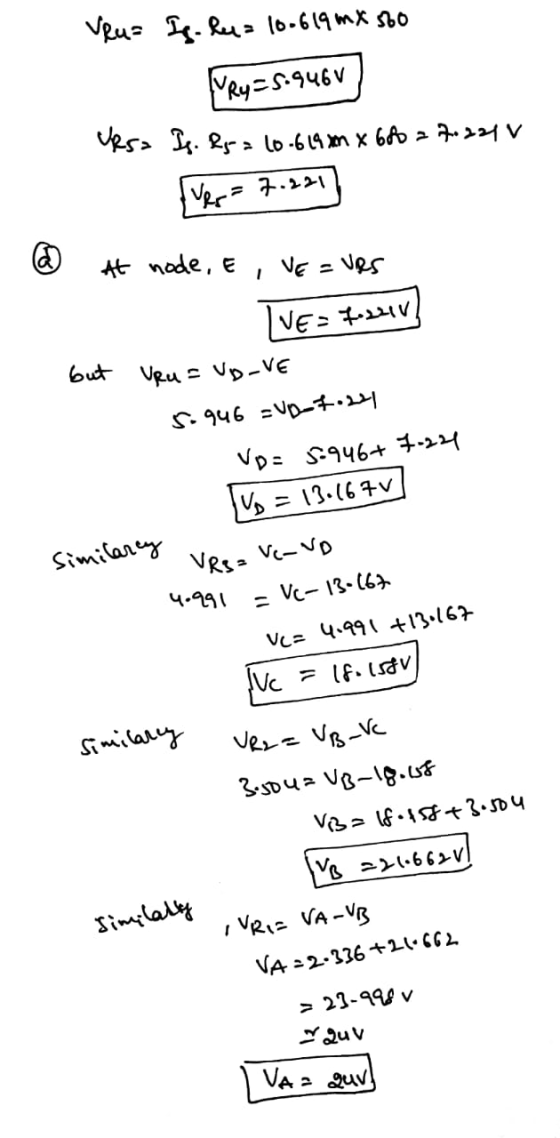

    4. Calculate the voltage from each point (A,B,C,D,and E)to the reference (VA, VB, VC, VD, VE).

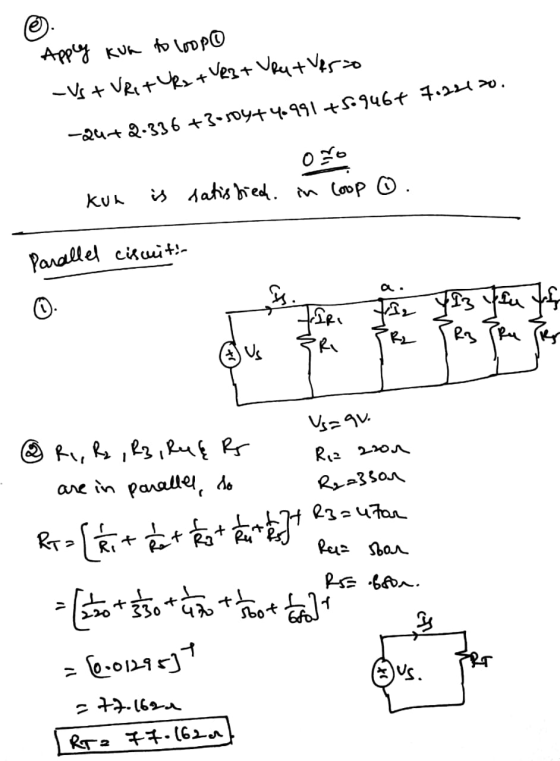

    5. Verify Kirchhoff’s Voltage Law (KVL)

Parallel:

1. Draw a parallel circuit using the same values of resistance but change the source voltage to 9V.

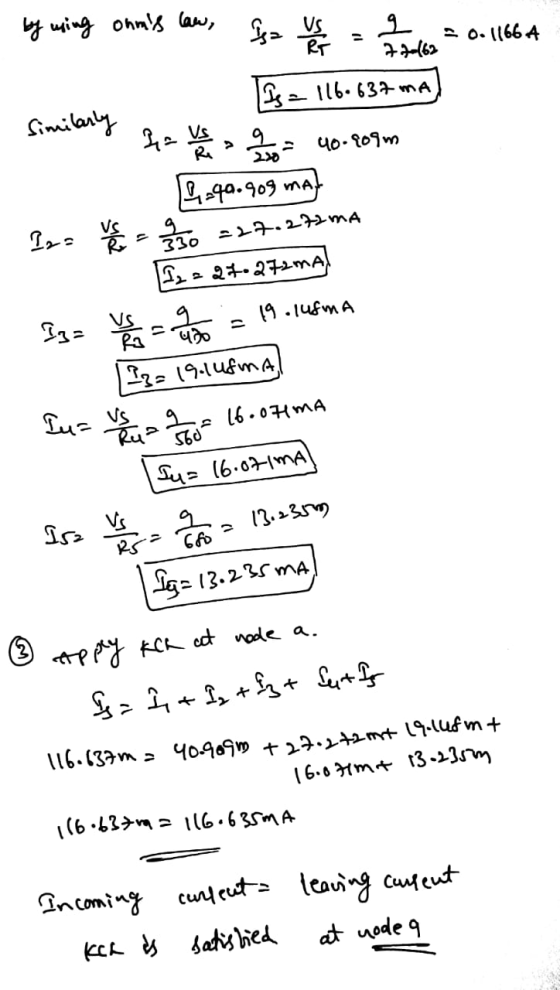

2. Calculate RT, IS, and I1 through I5 for the parallel circuit.

  1. Verify Kirchhoff’s Current Law (KCL).
0 0
