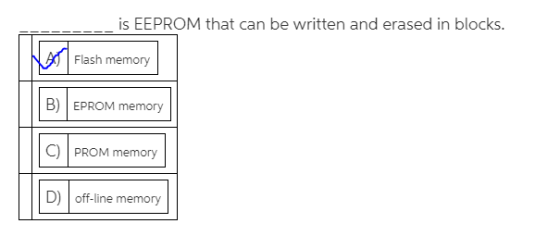

_________ is EEPROM that can be written and erased in blocks.
|
|||
|
|||
|
|||
|
_________ is EEPROM that can be written and erased in blocks. A) Flash memory B) EPROM...
8. Flash memory has some of the properties of ROM (it retains its contents with the power off), and some of the properties of RAM (you can read or write to it). However, most types of FLASH memory are slower when writing than when reading. Briefly explain why. Hint: The answer may not be in the course slides, do some research. Please write proper English sentences. [3 marks] Click here to enter text.
Solid-state drives consist of a microcontroller and ___ memory. a) flash b) base c)old d)good The __________ converts machine instructions of 0s and 1s into control signals. a) microprogram b) control store c) micro-sequencer c) control unit In Java, the memory space that is allocated and de-allocated as data structures are created and destroyed is called a: a) constant pool b) stack c) heap d) control pool
13. 4 GB Flash Memory Card After scanni of a 4 GB flash memory card using his smartp emory Card After scannine the UPC code Sullivan received the followineries for the goods at of online retailers Treat the data as simple random of all online retailers. 12.25 13.49 13.76 14.75 14.99 20.49 15.27 1595 17.88 Source: Scan Life his smartphone, Michael owing prices for the goods at a variety lata as a simple random sample 14.99 (a) Determine a point...
32 bytes of memory. 16 bytes of 2-way setassociative cache, where blocks can go anywhere within the set. Block is 4 bytes, set in cache is two blocks. Populate memory starting with 0-9, then upper case letters. Hint- with full associativity in the set: each block has its own set of Tag bits in the cache. Memory is not organized by sets, though blocks get assigned to sets, and load in the cache per set. A) Complete: Bits in Address...
a. What are the key properties of the FLASH memory technology that distinguish it from standard SRAM and DRAM? b. How are these properties exploited in system design? c. Briefly show how the design of the memory cell results in these properties.
The LUTs in an FPGA are implemented with a) DRAM b) SRAM c) EEROM d) EPROM e) ROM 7、
I need the answer Assume the following: Main memory blocks are numbered from 0 to 199 Cache has space for 10 blocks Main memory blocks 0,100,177,198, are mapped to what cache blocks? a. 2, 4, 5, 13 b. 0,0,7.8 c. 5,7,9,3,9 d. None of the above
1. A macro uses less memory than a subroutine a. True b. False 2. CAN is an open network a. True b. False 3. Volatile memory gets erased when power is lost a. True b. False 4. Generating a PWM signal is a use for a timer a. True b. False 5. AVR microcontrollers use a Harvard architecture a. True b. False
Categorize the following memory technologies based of the two memory types “Primary memory” and “Secondary Storage”. a) Cache memory b) Main memory c) Flash memory d) Solid State Disk e) CD f) DVD
Which register control signal allows for new values to be written to memory? A) Read/Write B) Enable C) Save D) Data Input
