Objective
To determine the initial speed of an object before it collides with a second object by using energy and momentum and to determine the energy lost in a collision.

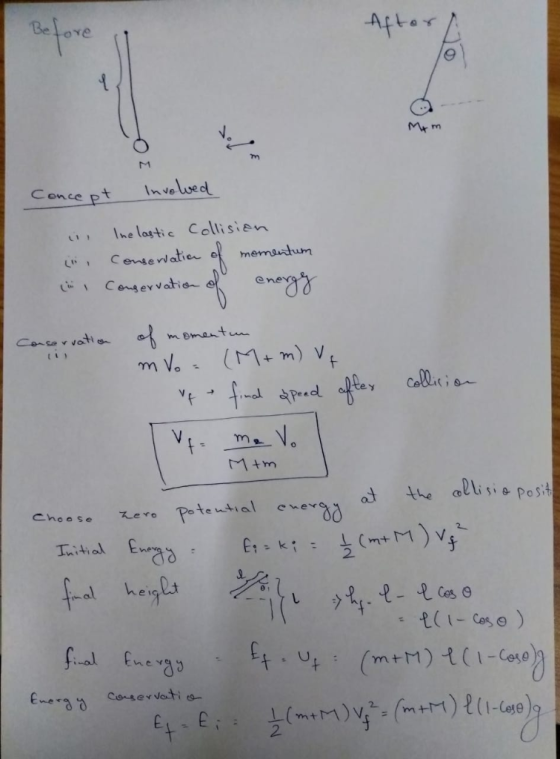

Consider a pendulum consisting of a small block of mass M suspended by a thin rod of length L. A small ball of mass m traveling horizontally with initial speed vo strikes the block and becomes imbedded in it. The ball/block combination swing together through a maximum angle θ. Derive an expression for vo in terms of M, L, m, θ, and any appropriate constants. Show and explain all your work.
Homework Answers
Add Answer to:
Objective
To determine the initial speed of an object before it collides
with a second object...
In a ballistic pendulum an object of mass m is fired with an initial speed v0 at a pendulum bob.
In a ballistic pendulum an object of mass m is fired with an initial speed v0 at a pendulum bob. The bob has a mass M, which is suspended by a rod of length L and negligible mass. After the collision, the pendulum and object stick together and swing to a maximum angular displacement θ as shown.Part AFind an expression for vo, the initial speed of the fired object. Express your answer in terms of some or all of the...
In a ballistic pendulum an object of mass is fired with an initial speed at a pendulum bob. The bob has a mass, which...
In a ballistic pendulum, an object of mass m is fired with an initial speed v0 at a pendulum bob. The bob has a mass M, which is suspended by a rod of length L and negligible mass. After the collision, the pendulum and
object stick together and swing to a maximum angular displacement θ as shown.A. Find an expression for v0, the initial speed of the fired object.Express your answer in terms of some or all of the variables m, M, L, and...
simple way to measure the speed of a bullet is with a ballistic pendulum, which consists...
simple way to measure the speed of a bullet is with a ballistic pendulum, which consists of a wooden block of mass m into which a bullet of mass m, is shot. The block is suspended from two cables, each of length L. Assume that the time the bullet takes to come to rest (that is, the bullet is moving at the same speed as the block) is negligibly Small. The impact of the bullet causes the block and embedded...
A bullet with some mass, m, and initial speed, vi, collides with a wooden block of...
A bullet with some mass, m, and initial speed, vi, collides with a wooden block of mass M that is hanging at the end of a light rope. The bullet imbeds itself in the block and the block and bullet swings upwards reaching a maximum height of h above the initial point of the collision. a. A scientist can measure the masses and the height, show that the initial speed can then be calculated from the following equation: vi= (m+M)/m×root...
QUESTION 5 10 points If a bullet moving with a speed of 200 m/s has a...
QUESTION 5 10 points If a bullet moving with a speed of 200 m/s has a momentum of magnitude 4.00 kg.m/s, what would the magnitude of its momentum be if it was moving with a speed of 321 m/s, in units of kg.m/s? 10 points QUESTION 6 A ball of mass 1.09 kg is moving with a speed of 14.9 m/s. What is the magnitude of the momentum of the ball, in units of kg.m/s? 10 points QUESTION 7 A...
As shown in the figure below, object m1 = 1.60 kg starts at an initial height...
As shown in the figure below, object m1 = 1.60 kg starts at an initial height hij = 0.305 m and speed V1 = 4.00 m/s, swings downward and strikes in an elastic collision) object m2 = 4.55 kg which is initially at rest. 4.00 m/s m2 (a) Determine the speed of m(in m/s) just before the collision. X After you are convinced that energy is conserved as m, swings downward for the collision with me, see if you can...
QUESTION 2 10 P A bullet of mass 30 g moving with a speed of 500...
QUESTION 2 10 P A bullet of mass 30 g moving with a speed of 500 m/s strikes a block of wood of mass 2.0 kg and becomes imbedded in it (stuck inside it). The block had been originally at rest and is free to move. What is the speed of the block and bullet immediately after the collision? 2.5 m/s 9.4 m/s 14 m/s 7.4 m/s QUESTION 3 10 poi A tennis ball of mass 0.0600 kg is initially...
3. The ballistic pendulum is a device used to measure the speed of a projectile, such...
3. The ballistic pendulum is a device used to measure the speed of a projectile, such as a bullet. The projectile, of mass m, is fired into a large block of mass M, which is suspended like a pendulum. As a result of the collision, the pendulum and projectile together swing up to a maximum height h. Determine the relationship between the initial horizontal speed of the projectile, v, and the maximum heighth
QUESTION 7 A bullet of mass 40.0 g moving with a speed of 249 m/s strikes...
QUESTION 7 A bullet of mass 40.0 g moving with a speed of 249 m/s strikes a block of wood of mass 2.00 kg and becomes imbedded in it (stuck inside it). The block had been originally at rest and is free to move. What is the speed of the block and bullet immediately after the collision, in units of m/s? QUESTION 10 If an object is initially at rest and then 'explodes' into two separate pieces, what do we...
Q1 A small object with a momentum of magnitude 2.71 kg m/s approaches head-on a large...
Q1 A small object with a momentum of magnitude 2.71 kg m/s approaches head-on a large object at rest. The small object bounces straight back with a momentum of magnitude 6.19 kg m/s. What is the magnitude of the small object's momentum change in kg m/s? Q2 A force acts on a 4.708 kg mass as follows: the force starts at zero and rises to 60.334 N linearly in 2.24 seconds, it remains at 60.334 N for another 5.756 seconds,...
In a ballistic pendulum, an object of mass m is fired with an initial speed v0 at a pendulum bob. The bob has a mass M, which is suspended by a rod of length L and negligible mass. After the collision, the pendulum and
object stick together and swing to a maximum angular displacement θ as shown.A. Find an expression for v0, the initial speed of the fired object.Express your answer in terms of some or all of the variables m, M, L, and...
simple way to measure the speed of a bullet is with a ballistic pendulum, which consists of a wooden block of mass m into which a bullet of mass m, is shot. The block is suspended from two cables, each of length L. Assume that the time the bullet takes to come to rest (that is, the bullet is moving at the same speed as the block) is negligibly Small. The impact of the bullet causes the block and embedded...
QUESTION 5 10 points If a bullet moving with a speed of 200 m/s has a momentum of magnitude 4.00 kg.m/s, what would the magnitude of its momentum be if it was moving with a speed of 321 m/s, in units of kg.m/s? 10 points QUESTION 6 A ball of mass 1.09 kg is moving with a speed of 14.9 m/s. What is the magnitude of the momentum of the ball, in units of kg.m/s? 10 points QUESTION 7 A...
As shown in the figure below, object m1 = 1.60 kg starts at an initial height hij = 0.305 m and speed V1 = 4.00 m/s, swings downward and strikes in an elastic collision) object m2 = 4.55 kg which is initially at rest. 4.00 m/s m2 (a) Determine the speed of m(in m/s) just before the collision. X After you are convinced that energy is conserved as m, swings downward for the collision with me, see if you can...
QUESTION 2 10 P A bullet of mass 30 g moving with a speed of 500 m/s strikes a block of wood of mass 2.0 kg and becomes imbedded in it (stuck inside it). The block had been originally at rest and is free to move. What is the speed of the block and bullet immediately after the collision? 2.5 m/s 9.4 m/s 14 m/s 7.4 m/s QUESTION 3 10 poi A tennis ball of mass 0.0600 kg is initially...
3. The ballistic pendulum is a device used to measure the speed of a projectile, such as a bullet. The projectile, of mass m, is fired into a large block of mass M, which is suspended like a pendulum. As a result of the collision, the pendulum and projectile together swing up to a maximum height h. Determine the relationship between the initial horizontal speed of the projectile, v, and the maximum heighth
QUESTION 7 A bullet of mass 40.0 g moving with a speed of 249 m/s strikes a block of wood of mass 2.00 kg and becomes imbedded in it (stuck inside it). The block had been originally at rest and is free to move. What is the speed of the block and bullet immediately after the collision, in units of m/s? QUESTION 10 If an object is initially at rest and then 'explodes' into two separate pieces, what do we...
