Show that a 2-1 mux is logically complete for 2-input gates

Question

Question

engineering Computer-Science

Answer 1

Answer #1

Answer-

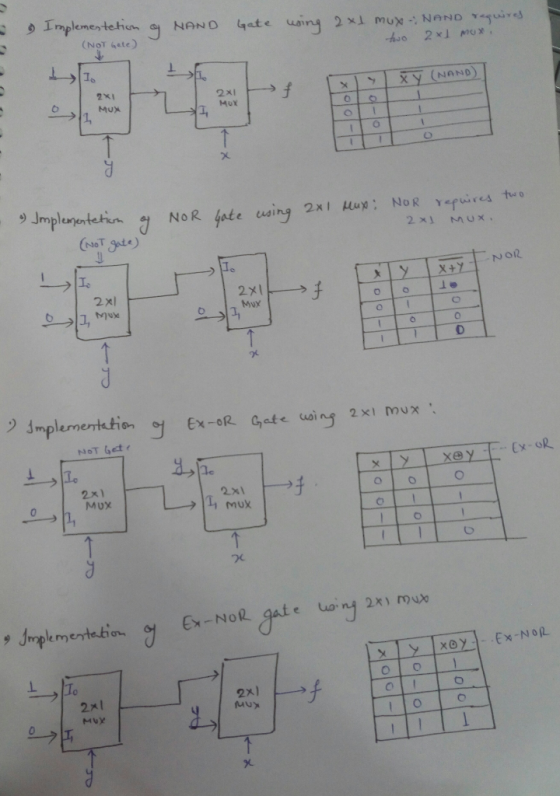

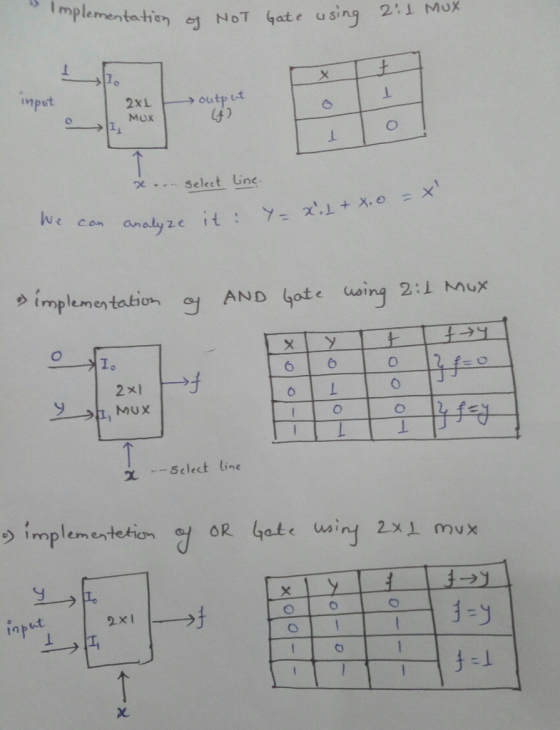

Implementation of all 2-input logic gates using the 2x1 MUX is as follows.

Answer 2
