For a vinyl record rotating on a turntable at 33&1/3 rev/min, calculate the angular momentum of...

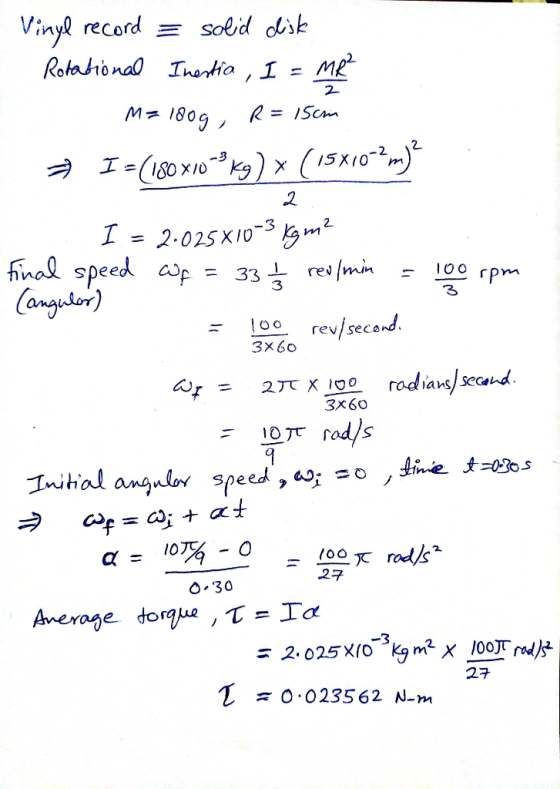

For a vinyl record rotating on a turntable at 33&1/3 rev/min, calculate the angular momentum of the record. The radius of the record is 15 cm and its mass is 180 g. If a typical phonograph can accelerate the record from rest to its final speed in 0.30s, what is the average torque exerted on the record?
Homework Answers
Add Answer to:
For a vinyl record rotating on a turntable at 33&1/3
rev/min, calculate the angular momentum of...
A vinyl record on a turntable rotates at 33 1/3 rev/min. (a) What is the angular...
A vinyl record on a turntable rotates at 33 1/3 rev/min. (a) What is the angular speed in rad/s? rad/s (b)What is the linear speed of a point on the record at the needle when the needle is 23 cm from the turntable axis? cm/s (c)What is the linear speed of a point on the record at the needle when the needle is 7.0 cm from the turntable axis? cm/s
A record turntable is rotating at 33 1/2 rev/min. A watermelon seed is on the turntable...
A record turntable is rotating at 33 1/2 rev/min. A watermelon seed is on the turntable 9.4 cm from the axis of rotation. (a) Calculate the acceleration of the seed, assuming that it does not slip. (b) What is the minimum value of the coefficient of static friction between the seed and the turntable if the seed is not to slip? (c) Suppose that the turntable achieves its angular speed by starting from rest and undergoing a constant angular acceleration...
Question 1 A record turntable is rotating at 33 rev/min. A watermelon seed is on the...
Question 1 A record turntable is rotating at 33 rev/min. A watermelon seed is on the turntable 4.1 cm from the axis of rotation. (a) Calculate the acceleration of the seed, assuming that it does not slip. (b) What is the minimum value of the coefficient of static friction between the seed and the turntable if the seed is not to slip? (c) Suppose that the turntable achieves its angular speed by starting from rest and undergoing a constant angular...
A record turntable rotating at 33 1/3 rev/min slows down and stops in 45 s after...
A record turntable rotating at 33 1/3 rev/min slows down and stops in 45 s after the motor is turned off. (a) Find its (constant) angular acceleration in revolutions per minute-squared. rev/min2 (b) How many revolutions does it make in this time? rev
A record player turntable initially rotating at 3313 rev/min is braked to a stop at a...
A record player turntable initially rotating at 3313 rev/min is braked to a stop at a constant rotational acceleration. The turntable has a rotational inertia of 0.021 kg⋅m2 . When it is switched off, it slows down to 75% of its initial rotational speed in 5.5 s . Part A How long does it take to come to rest? Express your answer with the appropriate units. t t = nothingnothing SubmitRequest Answer Part B How much work has to be...
A record on a turntable starts from rest and begins rotating at an angular acceleration of...
A record on a turntable starts from rest and begins rotating at an angular acceleration of 0.3 rev/s for 2s. After 2s, it maintains its velocity and rotates at this constant angular speed. A) What is the angular speed of the record after the first 2s? B) What is the total angular displacement after 10s?
Topic: Motion with Constant Angular Acceleration. 19.) When you switch on a PC computer, the disk...
Topic: Motion with Constant Angular Acceleration. 19.) When you switch on a PC computer, the disk in the disk drive takes 5.0 s to reach its final steady speed of 7200 rev/min. What is the average angular acceleration? 20.) When you turn off the motor, a phonograph turntable initially rotating at 33 1/3 rev/min makes 25 revolutions before it stops. Calculate the angular deceleration of this turntable; assume it is constant.
Consider a bug which is crawling on the surface of a turntable rotating with constant angular...
Consider a bug which is crawling on the surface of a turntable rotating with constant angular velocity wo. List all the forces acting on it in a system of coordinates painted on the turntable (z is perpendicular to the turntable and the rotation is around the z-axis) and the direction of each of those forces, in each of the following cases: a) when the bug is moving out from the center of the turntable along a radius at constant speed...
Please answer ALL parts. A phonograph turntable driven by an electric motor accelerates at a constant...
Please answer ALL parts.
A phonograph turntable driven by an electric motor accelerates at a constant rate (i.e., constant angular acceleration) from 0 to 33.33 revolutions per minute in 2 minutes. The turntable is a uniform disc of mass 1.5 kg and radius R = 13 cm, as indicated in the figure. The radius of the driving wheel is r = 2.0 cm. What is the torque required to drive the turntable at this angular acceleration? If the driving wheel...
To understand how to use conservation of angular momentum to solve problems involving collisions of rotating...
To understand how to use conservation of angular momentum to solve problems involving collisions of rotating bodies. Consider a turntable to be a circular disk of moment of inertia I_t rotating at a constant angular velocity omega_i around an axis through the center and perpendicular to the plane of the disk (the disk's "primary axis of symmetry"). The axis of the disk is vertical and the disk is supported by frictionless bearings. The motor of the turntable is off, so...
Consider a bug which is crawling on the surface of a turntable rotating with constant angular velocity wo. List all the forces acting on it in a system of coordinates painted on the turntable (z is perpendicular to the turntable and the rotation is around the z-axis) and the direction of each of those forces, in each of the following cases: a) when the bug is moving out from the center of the turntable along a radius at constant speed...
Please answer ALL parts.
A phonograph turntable driven by an electric motor accelerates at a constant rate (i.e., constant angular acceleration) from 0 to 33.33 revolutions per minute in 2 minutes. The turntable is a uniform disc of mass 1.5 kg and radius R = 13 cm, as indicated in the figure. The radius of the driving wheel is r = 2.0 cm. What is the torque required to drive the turntable at this angular acceleration? If the driving wheel...
To understand how to use conservation of angular momentum to solve problems involving collisions of rotating bodies. Consider a turntable to be a circular disk of moment of inertia I_t rotating at a constant angular velocity omega_i around an axis through the center and perpendicular to the plane of the disk (the disk's "primary axis of symmetry"). The axis of the disk is vertical and the disk is supported by frictionless bearings. The motor of the turntable is off, so...
