A piezoresistive accelerometer has a full scale of 100g with a full scale output of 100...

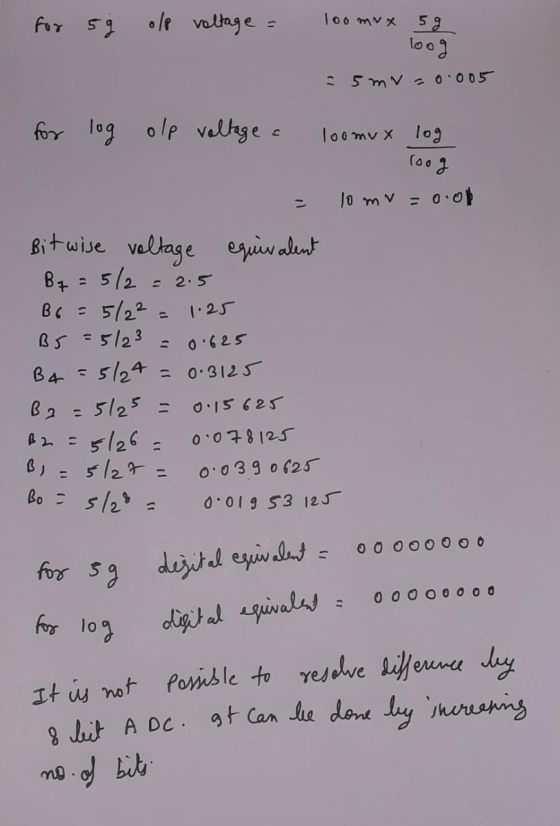

A piezoresistive accelerometer has a full scale of 100g with a full scale output of 100 mV. You have an 8-bit analog-to-digital conversion system with a full-scale input of 5VDC. You need to resolve the difference between a 5g and 10g acceleration, is this possible? Explain with steps
Homework Answers
