A nonconducting sphere of radius R carries a uniform charge distribution of ρ C/m3. Obtain an...

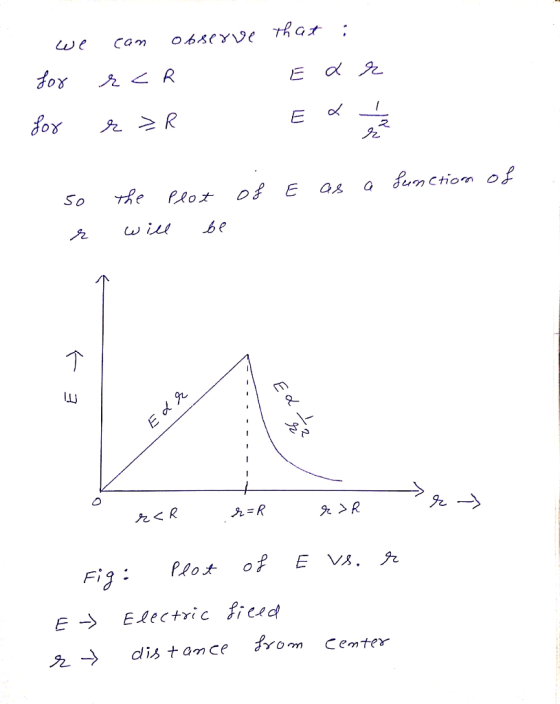

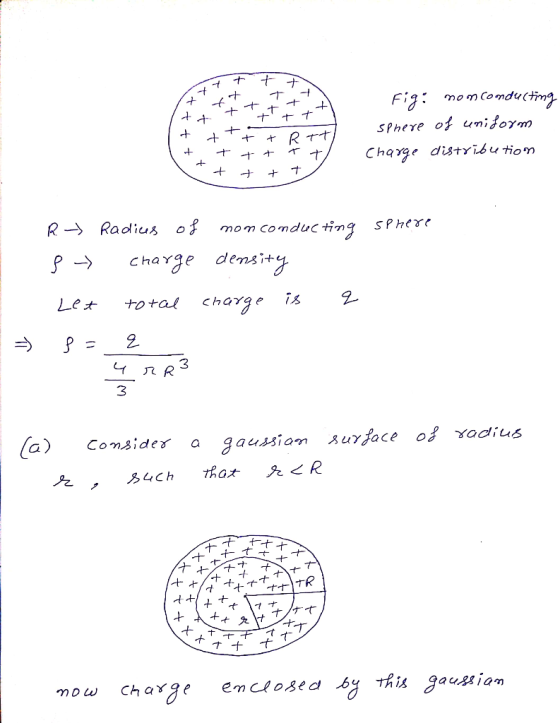

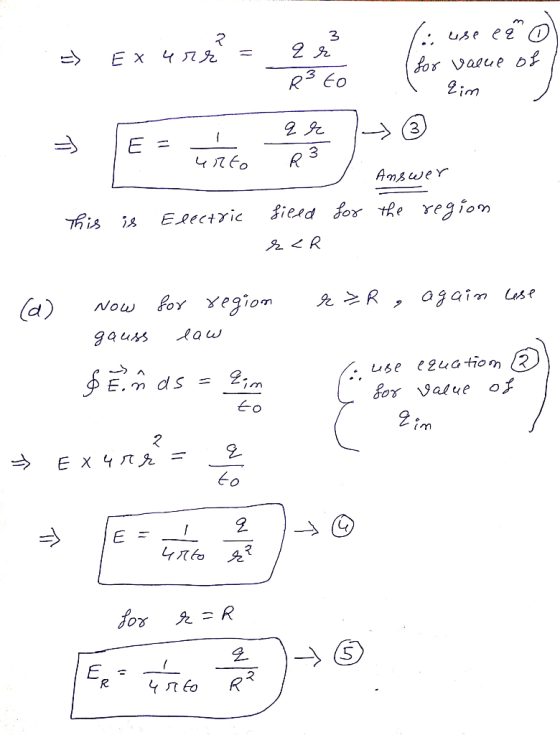

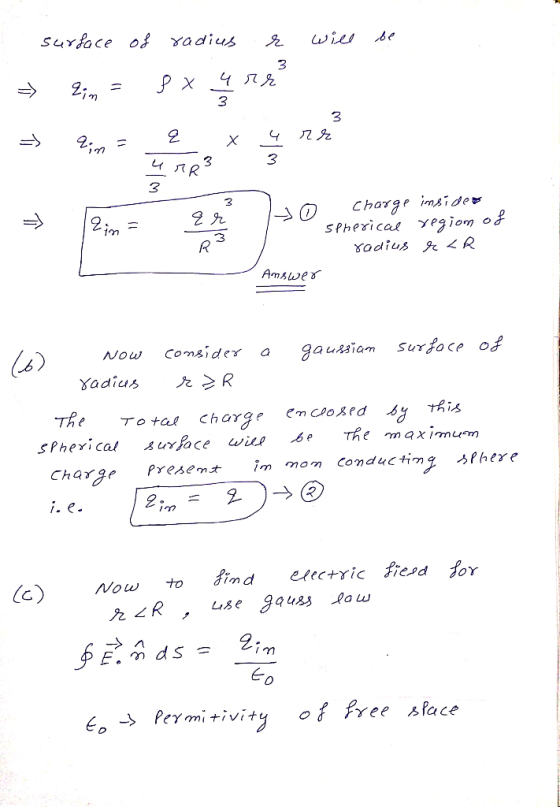

A nonconducting sphere of radius R carries a uniform charge distribution of ρ C/m3. Obtain an expression for the total charge contained within a spherical region of radius r, concentric with the nonconducting sphere, for a) r < R; b) r ≥ R. Then use Gauss's law to find an expression for the electric field for r < R and r ≥ R. Make a sketch of the electric field as a function of r.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
