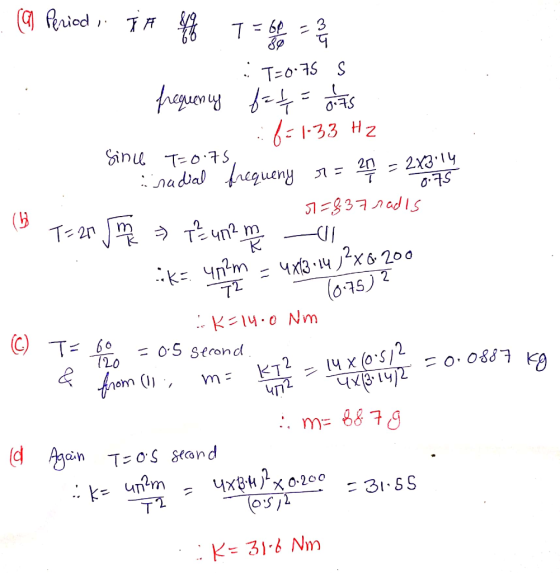

You want to build a simple metronome using only a mass and a spring. You notice that when you place a 200 g mass on your spring, the system oscillates at a rate of 80 beats per minute.
a) For this system, what is the corresponding period (in seconds), frequency (in Hz), and radial frequency (in radians/second)?
b) Based on this information, what is the spring constant of your spring?
c) You now want to adjust your metronome so that it oscillates at a rate of 120 beats per minute, how heavy of a mass do you now need if you use the same spring as originally?
d) Instead of changing the mass, you now want to use the original 200 g mass but change the spring. What spring constant is required to achieve the new desired frequency of 120 beats per minute?
You want to build a simple metronome using only a mass and a spring. You notice...
A block of mass 125 g is attached to a spring. When pulled away from equilibrium it oscillates with a frequency of 4.167 Hz. (a) What is the value of the spring constant for this spring? 85.68 N/m Correct: Your answer is correct. (b) You have a second block with a mass of 225 g. You want to attach it to a second spring so that it oscillates with the same frequency as the first block. What spring constant should...
You want to predict the frequency with which a ball-on-spring system will oscillate. You measure the spring constant to be 58.3 N/m and use a ball of mass 0.979 kg. What is the frequency (in Hz)? Enter answer here 12.1216 12.1216 HzX Answe Your
Question 1 You want to predict the frequency with which a ball-on-spring system will oscillate. You measure the spring constant to be 193 N/m and use a ball of mass 1.26 kg. What is the frequency (in Hz)? Enter answer here 19.4 Hz Your Answer
Question 1 You want to predict the frequency with which a ball-on-spring system will oscillate. You measure the spring constant to be 193 N/m and use a ball of mass 1.26 kg. What is the frequency (in Hz)? Enter answer here 19.4 Hz Your Answer
You attach a 150 g mass on a spring hung vertically. a. If the spring initially stretches 16 cm when you hang the mass on it, what is the spring constant? b. How long will one oscillation take? The spring is now oriented horizontally and attached to a glider on a frictionless airtrack. The glider also has mass of 150 g. You want to observe the oscillations of this horizontal springmass system in the lab with a motion detector. You...
Differntial Equations Forced Spring Motion
1. A 1 kg mass is attached to a spring of spring constant k = 4kg/82, The spring-mass system is attached to a machine that supplies an external driving force of f(t) = 4 cos(wt). The systern is started from equilibrium i.e. 2(0) = 0 and z'(0) = 0. There is no damping. (a) Find the position x(t) of the mass as a function of time (b) write your answer in the form r(t)-1 sin(6t)...
1. Consider a harmonic oscillator sitting in the ground state with a given spring constant ko m were is constant). We want to change the system to raise the constant to 4ko. [N.B. You will have to use the equation versions of the eigenstates for this question since the system is changing a) Use the ideal instantaneous sudden approximation to find the probability that the system stays in the ground state. Does this approximation include selection rules? b) Assuming that...
THE SPRING FORCE AND SIMPLE HARMONIC MOTION To measure and study various characteristics of a mass/spring system, including the spring constant and the dependence of the oscillation frequency on the amplitude of oscillation. i) You will measure the spring constant using two different methods: static and dynamic. ii) You will investigate the dependence of frequency on the amplitude of oscillations. 1. Write the equation that relates the applied force (not the spring force) on a spring to the displacement from...
A block of mass 8.50 g on the end of spring undergoes simple harmonic motion with a frequency of 4.00 Hz. What is the spring constant of the spring? 5.369 N/m You are correct. Your receipt no. is 157-4288 Help: Receipt Previous Tries If the motion of the mass has an initial amplitude of 1.50 cm what is its maximum speed?. 3.770×101 cm/s You are correct. Your receipt no. is 157-4662 Help: Receipt Previous Tries The amplitude decreases to 0.416...
4. Using the mks units (meters-kilograms-seconds), suppose you have a spring with spring constant 4 N/m. You want to use it to weigh items. Assume no friction. You place the mass on the spring and put it in motion. a) You count and find that the frequency is 0.8 Hz (cycles per second). What is the mass? b) Find a formula for the mass m given the frequency ω in Hz.
