Determine the inductance of a coil 14.9 mm in diameter, 30.5 mm in length, and carrying...

Determine the inductance of a coil 14.9 mm in diameter, 30.5 mm in length, and carrying 679 wraps of fine wire. Express in milli-Henry.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

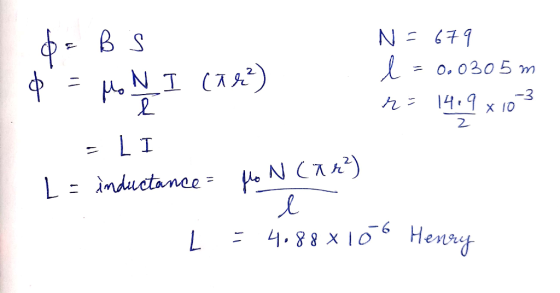

Answer #1

In milli henry inductance = 4.88 x 10-3 mH

Please rate it up thanks :)

0 0
