The magnetic flux density is Bz=(1/(1+10r^2))sin(100*pi*t) (Wb/m2) , by using the cylindrical coordinate for r<0.2m ,...
The magnetic flux density is Bz=(1/(1+10r^2))sin(100*pi*t) (Wb/m2) , by using the cylindrical coordinate for r<0.2m , solve the following :

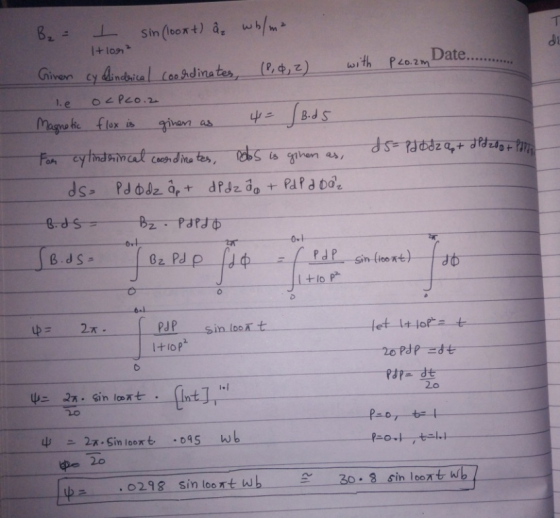

The magnetic flux passing through the surface r<0.1 , z=0 in the z direction .
The electric field at r<0.1 . ∅=pi/4 , z=0
If the circular path r<0.1 ,z=0 is a conductor wire with electric field resistance R =20*pi*Ω , what will be the current flow in the wire in ∅ direction
Homework Answers
Add Answer to:
The magnetic flux density is Bz=(1/(1+10r^2))sin(100*pi*t)
(Wb/m2) , by using the cylindrical coordinate for r<0.2m ,...
An infinitely long, straight, cylindrical wire of radius R carries a uniform current density J. Using...
An infinitely long, straight, cylindrical wire of radius R carries a uniform current density J. Using symmetry and Ampere's law, find the magnitude and direction of the magnetic field at a point inside the wire. For the purposes of this problem, use a cylindrical coordinate system with the current in the +z-direction, as shown coming out of the screen in the top illustration. The radial r-coordinate of each point is the distance to the central axis of the wire, and...
1 Cylindrical coordinate system Given the relation of the cylindrical coordinate system r=r cos pi+r sin...
1 Cylindrical coordinate system Given the relation of the cylindrical coordinate system r=r cos pi+r sin øj + zk (1) Lets define vectors er, eg, and ez, that indicate the direction of the vectors in the cylindrical coordinate system. Using the definition ar e = pt=r, p2 = 0, p3 (2) (a) Find a matrix for calculating er, er and e, in terms of i, j, and k. Invert the relation for expressing i, j, and k in terms of...
) An inductor is formed hy winding V tuns of a thin conducting wire into a circular f radius a. The inductor toop is in the plane with its center at the origin and connected to a resistor R. In t...
) An inductor is formed hy winding V tuns of a thin conducting wire into a circular f radius a. The inductor toop is in the plane with its center at the origin and connected to a resistor R. In the presence of a loop as shown below around a non-magnetic material r- y magnetio field B ธิ 2094 + Z)sin(at) wb/m.. Teslas. where ω-angular frequency Derive and calculate the following parameters (a) Derive the magnetic flux linking a single...
PROBLEM-2 A plane circular loop of conducting wire of radius r=14cm which possesses N=250 turns, is...
PROBLEM-2 A plane circular loop of conducting wire of radius r=14cm which possesses N=250 turns, is placed in xy-plane and normal to a uniform magnetic field B in +z-direction. The magnetic field-strength B is given by B=6t+3 (T). a)What is the magnetic flux in the circular loop at t=10s? (3pts) wb Upload your answer. Choose File No file chosen b)What is the electromotive force appeared in the circular loop at t=10s? (4pts) emf= V Upload your answer. Choose File No...
4. Consider the cylindrical waveguide below, which has an electromagnetic wave propagating in the space between...
4. Consider the cylindrical waveguide below, which has an
electromagnetic wave propagating in the space between the inner and
outer conductors, which is a gap where air exists. The radius of
the inner conductor is a, while the inner radius of the outer
conductor is b (as shown). The fields in the air-gap have the form
E = E0r cos (kz z ωt) B = B0r cos (kz z ωt) where E0 and B0 are
constants, r is the radial...
) An inductor is formed hy winding V tuns of a thin conducting wire into a...
) An inductor is formed hy winding V tuns of a thin conducting wire into a circular f radius a. The inductor toop is in the plane with its center at the origin and connected to a resistor R. In the presence of a loop as shown below around a non-magnetic material r- y magnetio field B ธิ 2094 + Z)sin(at) wb/m.. Teslas. where ω-angular frequency Derive and calculate the following parameters (a) Derive the magnetic flux linking a single...
1 of 15 When a field is parallel to a plane of area, the magnetic flux...
1 of 15 When a field is parallel to a plane of area, the magnetic flux through the coil is A zero. B infinite. C 2. D 5. Question 2 of 15 A moving charge experiences magnetic forces because of a A magnetic flux. B magnetic field. C magnetic current. D both a and b. Question 3 of 15 Total number of magnetic field lines passing through an area is called A magnetic flux density. B magnetic flux. C emf....
PHY1520 Final Review Problems 1) The current density in a cylindrical wire of radius R = 3.0 mm is uniform across the cross section of the wire and is J = 3.0 × 106A/m2, (a) What is the current th...
PHY1520 Final Review Problems 1) The current density in a cylindrical wire of radius R = 3.0 mm is uniform across the cross section of the wire and is J = 3.0 × 106A/m2, (a) What is the current through the outer portion of the wire between radial distances R/2 and R (b) What is the current through the entire cross section of the wire? 2) A conducting loop of radius 1.50 cm and resistance 8 x 10-6Ω is perpendicular...
1. An electron moves in a circular path in the magnetic field of an electromagnet. The...
1. An electron moves in a circular path in the magnetic field of an electromagnet. The plune of the electron's Sicular path is parallel to the smooth vole faces of the electromagnet. In the region where the electron is moving the magnetic field is uniform and has magnitude 0,50 T. The electron moves with a speed of 1.5 x 10 m/s. a. If someone could observe the electron from the north pole of the electromagnet, would the electron inove clockwise...
Magnetic Fields from Currents in a Wire and a Cylindrical Shell 1 2 3 4 5...
Magnetic Fields from Currents in a Wire and a Cylindrical Shell 1 2 3 4 5 6 A solid cylindrical conducting shell of inner radius a 5.5 cm and outer radius b 8 cm has its axis aligned with the z-axis as shown. It carries a uniformly distributed current l2-5.8 A in the positive z- direction. An inifinte conducting wire is located along the z-axis and carries a current l1 2.4 A in the negative z- direction. R(7074 707d) Pd,0)...
An infinitely long, straight, cylindrical wire of radius R carries a uniform current density J. Using symmetry and Ampere's law, find the magnitude and direction of the magnetic field at a point inside the wire. For the purposes of this problem, use a cylindrical coordinate system with the current in the +z-direction, as shown coming out of the screen in the top illustration. The radial r-coordinate of each point is the distance to the central axis of the wire, and...
1 Cylindrical coordinate system Given the relation of the cylindrical coordinate system r=r cos pi+r sin øj + zk (1) Lets define vectors er, eg, and ez, that indicate the direction of the vectors in the cylindrical coordinate system. Using the definition ar e = pt=r, p2 = 0, p3 (2) (a) Find a matrix for calculating er, er and e, in terms of i, j, and k. Invert the relation for expressing i, j, and k in terms of...
) An inductor is formed hy winding V tuns of a thin conducting wire into a circular f radius a. The inductor toop is in the plane with its center at the origin and connected to a resistor R. In the presence of a loop as shown below around a non-magnetic material r- y magnetio field B ธิ 2094 + Z)sin(at) wb/m.. Teslas. where ω-angular frequency Derive and calculate the following parameters (a) Derive the magnetic flux linking a single...
PROBLEM-2 A plane circular loop of conducting wire of radius r=14cm which possesses N=250 turns, is placed in xy-plane and normal to a uniform magnetic field B in +z-direction. The magnetic field-strength B is given by B=6t+3 (T). a)What is the magnetic flux in the circular loop at t=10s? (3pts) wb Upload your answer. Choose File No file chosen b)What is the electromotive force appeared in the circular loop at t=10s? (4pts) emf= V Upload your answer. Choose File No...
4. Consider the cylindrical waveguide below, which has an
electromagnetic wave propagating in the space between the inner and
outer conductors, which is a gap where air exists. The radius of
the inner conductor is a, while the inner radius of the outer
conductor is b (as shown). The fields in the air-gap have the form
E = E0r cos (kz z ωt) B = B0r cos (kz z ωt) where E0 and B0 are
constants, r is the radial...
) An inductor is formed hy winding V tuns of a thin conducting wire into a circular f radius a. The inductor toop is in the plane with its center at the origin and connected to a resistor R. In the presence of a loop as shown below around a non-magnetic material r- y magnetio field B ธิ 2094 + Z)sin(at) wb/m.. Teslas. where ω-angular frequency Derive and calculate the following parameters (a) Derive the magnetic flux linking a single...
PHY1520 Final Review Problems 1) The current density in a cylindrical wire of radius R = 3.0 mm is uniform across the cross section of the wire and is J = 3.0 × 106A/m2, (a) What is the current through the outer portion of the wire between radial distances R/2 and R (b) What is the current through the entire cross section of the wire? 2) A conducting loop of radius 1.50 cm and resistance 8 x 10-6Ω is perpendicular...
1. An electron moves in a circular path in the magnetic field of an electromagnet. The plune of the electron's Sicular path is parallel to the smooth vole faces of the electromagnet. In the region where the electron is moving the magnetic field is uniform and has magnitude 0,50 T. The electron moves with a speed of 1.5 x 10 m/s. a. If someone could observe the electron from the north pole of the electromagnet, would the electron inove clockwise...
Magnetic Fields from Currents in a Wire and a Cylindrical Shell 1 2 3 4 5 6 A solid cylindrical conducting shell of inner radius a 5.5 cm and outer radius b 8 cm has its axis aligned with the z-axis as shown. It carries a uniformly distributed current l2-5.8 A in the positive z- direction. An inifinte conducting wire is located along the z-axis and carries a current l1 2.4 A in the negative z- direction. R(7074 707d) Pd,0)...
