Question

Modify Dlinkedlist.java so it includes a new method named getPriorNode that accepts the String value of a potential element in the doubly linked list and returns the string value of the predecessor node (or an appriopriate message String if there is no such node or predecessor.

class DLinkedList
{
/**
The Node class stores a list element
and a reference to the next node.
*/
private class Node
{
String value; // Value of a list element
Node next; // Next node in the list
Node prev; // Previous element in the list

/**
Constructor.
@param val The element to be stored in the node.
@param n The reference to the successor node.
@param p The reference to the predecessor node.
*/

Node(String val, Node n, Node p)
{
value = val;
next = n;
prev = p;
}

/**
Constructor.
@param val The element to be stored in the node.
*/

Node(String val)
{
// Just call the other (sister) constructor
this(val, null, null);
}
}

private Node first; // Head of the list
private Node last; // Last element on the list

/**
Constructor.
*/

public DLinkedList()
{
first = null;
last = null;
}

/**
The isEmpty method checks to see if the list
is empty.
@return true if list is empty, false otherwise.
*/

public boolean isEmpty()
{
return first == null;
}

/**
The size method returns the length of the list.
@return The number of elements in the list.
*/

public int size()
{
int count = 0;
Node p = first;
while (p != null)
{
// There is an element at p
count ++;
p = p.next;
}
return count;
}

/**
The add method adds to the end of the list.
@param e The value to add.
*/

public void add(String e)
{
if (isEmpty())
{
last = new Node(e);
first = last;
}
else
{
// Add to end of existing list
last.next = new Node(e, null, last);
last = last.next;
}
}

/**
This add method adds an element at an index.
@param e The element to add to the list.
@param index The index at which to add.
@exception IndexOutOfBoundsException
       When the index is out of bounds.
*/

public void add(int index, String e)
{
if (index < 0 || index > size())
{
String message = String.valueOf(index);
throw new IndexOutOfBoundsException(message);
}

// Index is at least 0
if (index == 0)
{
// New element goes at beginning
Node p = first; // Old first
first = new Node(e, p, null);
if (p != null)
p.prev = first;
if (last == null)
last = first;
return;
}

// pred will point to the predecessor
           // of the new node.
Node pred = first;
for (int k = 1; k <= index - 1; k++)
{
pred = pred.next;
}

// Splice in a node with the new element
// We want to go from pred-- succ to
// pred--middle--succ
Node succ = pred.next;
Node middle = new Node(e, succ, pred);
pred.next = middle;
if (succ == null)
last = middle;
else
succ.prev = middle;
}

/**
The toString method computes the string
representation of the list.
@return The string representation of the
linked list.
*/

public String toString()
{
StringBuilder strBuilder = new StringBuilder();

// Use p to walk down the linked list
Node p = first;
while (p != null)
{
strBuilder.append(p.value + "\n");
p = p.next;
}
return strBuilder.toString();
}

/**
The remove method removes the element
       at a given position.
@param index The position of the element
       to remove.
@return The element removed.
@exception IndexOutOfBoundsException When
       index is out of bounds.
*/

public String remove(int index)
{
if (index < 0 || index >= size())
{
String message = String.valueOf(index);
throw new IndexOutOfBoundsException(message);
}

// Locate the node targeted for removal
Node target = first;
for (int k = 1; k <= index; k++)
target = target.next;

String element = target.value; // Element to return
Node pred = target.prev; // Node before the target
Node succ = target.next; // Node after the target

// Route forward and back pointers around
// the node to be removed
if (pred == null)
first = succ;
else
pred.next = succ;

if (succ == null)
last = pred;
else
succ.prev = pred;

return element;
}

/**
The remove method removes an element from the list.
@param element The element to remove.
@return true if the element was removed, false otherwise.
*/

public boolean remove(String element)
{
if (isEmpty())
return false;

// Locate the node targeted for removal
Node target = first;
while (target != null
&& !element.equals(target.value))
target = target.next;

if (target == null)
return false;

Node pred = target.prev; // Node before the target
Node succ = target.next; // Node after the target

// Route forward and back pointers around
// the node to be removed
if (pred == null)
first = succ;
else
pred.next = succ;

if (succ == null)
last = pred;
else
succ.prev = pred;

return true;
}

public static void main(String [] args)
{
DLinkedList ll = new DLinkedList();
ll.add("Amy");
ll.add("Bob");
ll.add(0, "Al");
ll.add(2, "Beth");
ll.add(4, "Carol");
System.out.println("The elements of the list are:");
System.out.println(ll);
}
}

Answer 1

Java Program:

class DLinkedList
{
/**
The Node class stores a list element
and a reference to the next node.
*/
private class Node
{
String value; // Value of a list element
Node next; // Next node in the list
Node prev; // Previous element in the list

/**
Constructor.
@param val The element to be stored in the node.
@param n The reference to the successor node.
@param p The reference to the predecessor node.
*/

Node(String val, Node n, Node p)
{
value = val;
next = n;
prev = p;
}

/**
Constructor.
@param val The element to be stored in the node.
*/

Node(String val)
{
// Just call the other (sister) constructor
this(val, null, null);
}
}

private Node first; // Head of the list
private Node last; // Last element on the list

/**
Constructor.
*/

public DLinkedList()
{
first = null;
last = null;
}

/**
The isEmpty method checks to see if the list
is empty.
@return true if list is empty, false otherwise.
*/

public boolean isEmpty()
{
return first == null;
}

/**
The size method returns the length of the list.
@return The number of elements in the list.
*/

public int size()
{
int count = 0;
Node p = first;
while (p != null)
{
// There is an element at p
count ++;
p = p.next;
}
return count;
}

/**
The add method adds to the end of the list.
@param e The value to add.
*/

public void add(String e)
{
if (isEmpty())
{
last = new Node(e);
first = last;
}
else
{
// Add to end of existing list
last.next = new Node(e, null, last);
last = last.next;
}
}

/**
This add method adds an element at an index.
@param e The element to add to the list.
@param index The index at which to add.
@exception IndexOutOfBoundsException
When the index is out of bounds.
*/

public void add(int index, String e)
{
if (index < 0 || index > size())
{
String message = String.valueOf(index);
throw new IndexOutOfBoundsException(message);
}

// Index is at least 0
if (index == 0)
{
// New element goes at beginning
Node p = first; // Old first
first = new Node(e, p, null);
if (p != null)
p.prev = first;
if (last == null)
last = first;
return;
}

// pred will point to the predecessor
// of the new node.
Node pred = first;
for (int k = 1; k <= index - 1; k++)
{
pred = pred.next;
}

// Splice in a node with the new element
// We want to go from pred-- succ to
// pred--middle--succ
Node succ = pred.next;
Node middle = new Node(e, succ, pred);
pred.next = middle;
if (succ == null)
last = middle;
else
succ.prev = middle;
}

/**
The toString method computes the string
representation of the list.
@return The string representation of the
linked list.
*/

public String toString()
{
StringBuilder strBuilder = new StringBuilder();

// Use p to walk down the linked list
Node p = first;
while (p != null)
{
strBuilder.append(p.value + "\n");
p = p.next;
}
return strBuilder.toString();
}

/**
The remove method removes the element
at a given position.
@param index The position of the element
to remove.
@return The element removed.
@exception IndexOutOfBoundsException When
index is out of bounds.
*/

public String remove(int index)
{
if (index < 0 || index >= size())
{
String message = String.valueOf(index);
throw new IndexOutOfBoundsException(message);
}

// Locate the node targeted for removal
Node target = first;
for (int k = 1; k <= index; k++)
target = target.next;

String element = target.value; // Element to return
Node pred = target.prev; // Node before the target
Node succ = target.next; // Node after the target

// Route forward and back pointers around
// the node to be removed
if (pred == null)
first = succ;
else
pred.next = succ;

if (succ == null)
last = pred;
else
succ.prev = pred;

return element;
}

/**
The remove method removes an element from the list.
@param element The element to remove.
@return true if the element was removed, false otherwise.
*/

public boolean remove(String element)
{
if (isEmpty())
return false;

// Locate the node targeted for removal
Node target = first;
while (target != null
&& !element.equals(target.value))
target = target.next;

if (target == null)
return false;

Node pred = target.prev; // Node before the target
Node succ = target.next; // Node after the target

// Route forward and back pointers around
// the node to be removed
if (pred == null)
first = succ;
else
pred.next = succ;

if (succ == null)
last = pred;
else
succ.prev = pred;

return true;
}

/**
The getPriorNode method returns the element prior to it if passed element exists.
If doesn't exist returns false
*/

public String getPriorNode(String element)
{
   if (isEmpty())
       return "List Empty.";

   // Locate the node targeted for value
   Node target = first;
   while (target != null && !element.equals(target.value))
   {
       target = target.next;
   }

   //Checking target node
   if (target == null)
       return "Element doesn't exist in the list.";

   // Node before the target
   Node pred = target.prev;

   //Checking previous node
   if (pred == null)
       return "Element is the first element in the list.";
   else
       return pred.value;
}


public static void main(String [] args)
{
DLinkedList ll = new DLinkedList();
ll.add("Amy");
ll.add("Bob");
ll.add(0, "Al");
ll.add(2, "Beth");
ll.add(4, "Carol");
System.out.println("The elements of the list are:");
System.out.println(ll);

System.out.println("\n\n Node before Beth: " + ll.getPriorNode("Beth"));
System.out.println("\n\n Node before Al: " + ll.getPriorNode("Al"));
System.out.println("\n\n Node before XYZ: " + ll.getPriorNode("XYZ") + " \n");

}
}

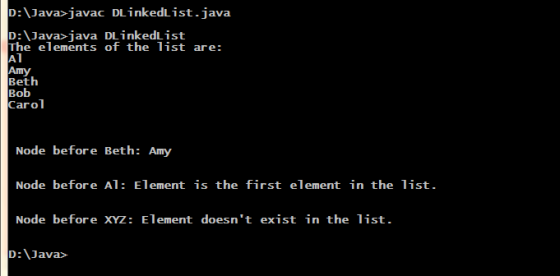

Sample Run:
