Question

A coaxial cable consists of a solid inner conductor of radius R1 surrounded by a concentric cylindrical tube of inner radius R2 and outer radius R3 (the figure). The conductors carry equal and opposite currents I0distributed uniformly across their cross sections.(Figure 1)

Part E Let I0=1.50A, R1=1.00 cm, R2=2.00 cm, and R3=2.50 cm. Graph B from R=0 to R=3.00 cm.

Answer 1

Part E

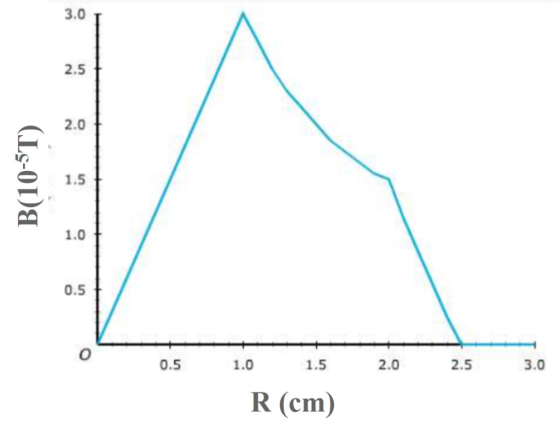

Let I₀ = 1.50A, R₁ = 1.00 cm, R₂ = 2.00 cm, and R₃ = 2.50 cm. Graph B from R = 0 to R = 3.00 cm
