Draw a circuit with a single resistor and a voltmeter wired in parallel. Assume a resistance...

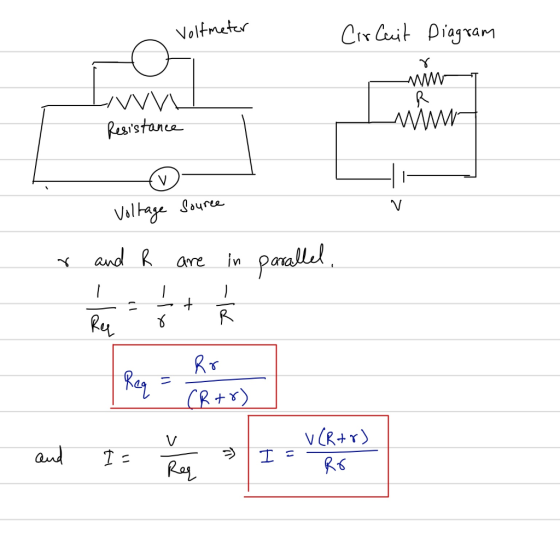

Draw a circuit with a single resistor and a voltmeter wired in parallel. Assume a resistance of R for the load and r for the voltmeter and a voltage V for the power supply. Write an expression for the equivalent resistance and total current drawn for this circuit
science   physics
