Question

Write a program (in Java) that can convert a sorted array into a balanced binary search tree. For this project, a balanced binary tree is one where the size of the left and right subtrees at each node differs at most by one. Your program should have a graphical user interface. The program allows the user to enter a number n, generates an array of n random integers, sorts the array, and then converts the sorted array into a balanced binary search tree. The program should display a graphical representation of the binary search tree.

Answer 1

package DS;

import java.awt.event.*;

import java.awt.*;

import java.util.*;

import javax.swing.*;

// Defines a class

class BBSTNode

{

// Declares left and right child

BBSTNode leftChild, rightChild;

int value;

int height;

// Default Constructor

public BBSTNode()

{

leftChild = null;

rightChild = null;

value = 0;

height = 0;

}



// Parameterized Constructor

public BBSTNode(int num)

{

leftChild = null;

rightChild = null;

value = num;

height = 0;

}

}

// Defines a class for BalancedBinarySearchTree

class BalancedBinarySearchTree

{

private BBSTNode rootNode;

String result;



// Default Constructor

public BalancedBinarySearchTree()

{

rootNode = null;

result = "";

}

// Method to check if tree is empty

public boolean isEmpty()

{

return rootNode == null;

}

// Method to make the tree empty

public void clear()

{

rootNode = null;

}

// Method to insert a node

public void insert(int data)

{

rootNode = insert(data, rootNode);

}



// Method to get height of node

private int height(BBSTNode tree)

{

return tree == null ? -1 : tree.height;

}

// Method to return max of left/right node

private int max(int lhs, int rhs)

{

return lhs > rhs ? lhs : rhs;

}

// Method to insert nodes recursively

private BBSTNode insert(int number, BBSTNode treeRoot)

{

if (treeRoot == null)

treeRoot = new BBSTNode(number);

else if (number < treeRoot.value)

{

treeRoot.leftChild = insert(number, treeRoot.leftChild);

if (height(treeRoot.leftChild) - height(treeRoot.rightChild) == 2)

if (number < treeRoot.leftChild.value)

treeRoot = rotateWithLeftChild(treeRoot);

else

treeRoot = doubleWithLeftChild(treeRoot);

}

else if (number > treeRoot.value)

{

treeRoot.rightChild = insert(number, treeRoot.rightChild);

if (height(treeRoot.rightChild) - height(treeRoot.leftChild) == 2)

if (number > treeRoot.rightChild.value)

treeRoot = rotateWithRightChild(treeRoot);

else

treeRoot = doubleWithRightChild(treeRoot);

}

else

; // Duplicate; do nothing

treeRoot.height = max(height(treeRoot.leftChild),

height(treeRoot.rightChild) ) + 1;

return treeRoot;

}



// Method to rotate binary tree node with left child

private BBSTNode rotateWithLeftChild(BBSTNode current)

{

BBSTNode temp = current.leftChild;

current.leftChild = temp.rightChild;

temp.rightChild = current;

current.height = max(height(current.leftChild),

height(current.rightChild) ) + 1;

temp.height = max(height(temp.leftChild), current.height ) + 1;

return temp;

}

// Method to rotate binary tree node with right child

private BBSTNode rotateWithRightChild(BBSTNode current)

{

BBSTNode temp = current.rightChild;

current.rightChild = temp.leftChild;

temp.leftChild = current;

current.height = max(height(current.leftChild),

height(current.rightChild) ) + 1;

temp.height = max(height(temp.rightChild), current.height ) + 1;

return temp;

}

/**

* Method to double rotate binary tree node: first left child

* with its right child; then node k3 with new left child

*/

private BBSTNode doubleWithLeftChild(BBSTNode current)

{

current.leftChild = rotateWithRightChild(current.leftChild);

return rotateWithLeftChild(current);

}

/**

* Method to double rotate binary tree node: first right child

* with its left child; then node k1 with new right child */

private BBSTNode doubleWithRightChild(BBSTNode current)

{

current.rightChild = rotateWithLeftChild(current.rightChild);

return rotateWithRightChild(current);

}



// Method for inorder traversal

public void inorder()

{

inorder(rootNode);

}

private void inorder(BBSTNode rootNode)

{

if (rootNode != null)

{

inorder(rootNode.leftChild);

result += rootNode.value + " ";

inorder(rootNode.rightChild);

}

}

// Method for preorder traversal

public void preorder()

{

preorder(rootNode);

}

private void preorder(BBSTNode rootNode)

{

if (rootNode != null)

{

result += rootNode.value + " ";

preorder(rootNode.leftChild);

preorder(rootNode.rightChild);

}

}



// Method for postorder traversal

public void postorder()

{

postorder(rootNode);

}

private void postorder(BBSTNode rootNode)

{

if (rootNode != null)

{

postorder(rootNode.leftChild);

postorder(rootNode.rightChild);

result += rootNode.value + " ";

}

}

// Method for bubble sort

public void sortArray(int array[])

{

// Stores the length of array

int n = array.length;

// Loops till length minus one times

for (int i = 0; i < n - 1; i++)

{

// Loops till length minus i minus one times

for (int j = 0; j < n - i - 1; j++)

{

// Checks if the current position of array value is greater than the next position value then swap

if (array[j] > array[j+1])

{

// Swapping process

int temp = array[j];

array[j] = array[j+1];

array[j+1] = temp;

}// End of if

}// End of inner for loop

}// End of outer for loop

}// End of method

}

public class BalancedBinarySearchTreeGUI implements ActionListener

{

Random rand = new Random();

BalancedBinarySearchTree bbst = new BalancedBinarySearchTree();

JFrame jf;

JTextField numT;

JLabel numL;

JTextArea jta;

JPanel jp1, jp2, mainP;

JButton createB;

BalancedBinarySearchTreeGUI()

{

jf = new JFrame("BalancedBinarySearchTree");

numT = new JTextField(5);

numL = new JLabel("Enter a number: ");

jta = new JTextArea(20, 60);

jp1 = new JPanel();

jp2 = new JPanel();

mainP = new JPanel();

createB = new JButton("Create");

createB.addActionListener(this);

jp1.add(numL);

jp1.add(numT);

jp1.add(jta);

jp2.add(createB);

mainP.add(jp1);

mainP.add(jp2);

mainP.setLayout(new GridLayout(2, 1));

jf.add(mainP);

jf.setVisible(true);

jf.setSize(800, 400);

jf.setLocationRelativeTo(null);

}

public void actionPerformed(ActionEvent ae)

{

if(ae.getSource() == createB)

{

int n = Integer.parseInt(numT.getText());

int numberArray[] = new int[n];



for(int c = 0; c < numberArray.length; c++)

numberArray[c] = rand.nextInt(100) + 1;

bbst.sortArray(numberArray);



for(int c = 0; c < numberArray.length; c++)

bbst.insert(numberArray[c]);



//System.out.print();

bbst.inorder();

jta.append("\n Inorder Traversal: " + bbst.result);

bbst.result = "";

bbst.preorder();

jta.append("\n Preorder Traversal: " + bbst.result);

bbst.result = "";

bbst.postorder();

jta.append("\n Postorder Traversal: " + bbst.result);

bbst.result = "";

}

}

public static void main(String[] ss)

{

new BalancedBinarySearchTreeGUI();

}

}

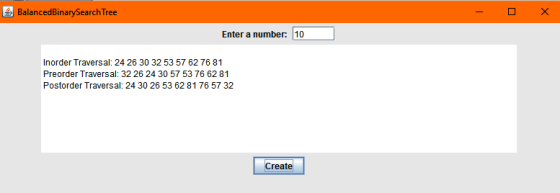

Sample Output:
