Question

Sketch a reasonable phase diagram for substance Q with triple point at 40 torr and – 130 oC, normal freezing point of - 100 oC, and normal boiling point of - 50 oC. a. Label the axes. b. Give reasonable numerical values along the axes for your diagram. c. Draw curves showing stable regions in the diagram. d. Label (identify) those stable regions. Identify the points on your phase diagram for the data given.

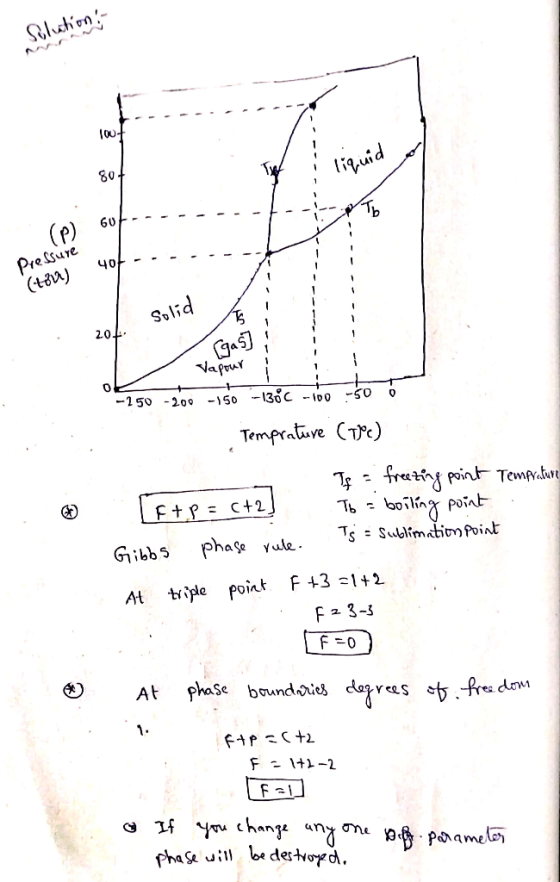

Answer 1
