thermodynamics: Diffusers, find the exit velocity ..
Air at 80 kPa, 27 degrees C and 220 m/s eneters a diffuser at a rate of 2.5 kg/s and leaves at 42 degrees C. the exit area of the diffuser is 400 cm2.the air is estimated to lose heat at a rate of 18 kJ/s during this process.
Determine

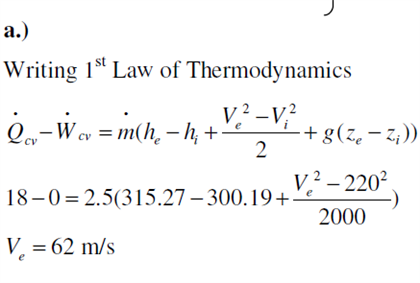

-The exit velocity

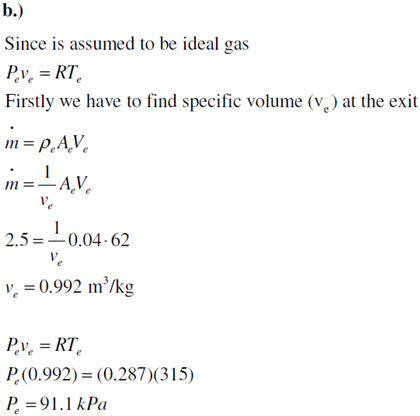

-The exit pressure of the air
Homework Answers
Required information Problem 05.038. Diffuser flow DEPENDENT MULTI-PART PROBLEM - ASSIGN ALL PARTS NOTE: This is...
Required information Problem 05.038. Diffuser flow DEPENDENT MULTI-PART PROBLEM - ASSIGN ALL PARTS NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Air at 80 kPa, 27'C, and 220 m/s enters a diffuser at a rate of 2.5 kg/s and leaves at 42'C. The exit area of the diffuser is 360 cm2. The air is estimated to lose heat at a rate of 18 kJ/s during this process. The...
Mutah University Faculty of Eng mies I Prof. M. Abu-Zaid Exam. 2 Date: 20-12-2018 Problem ()...
Mutah University Faculty of Eng mies I Prof. M. Abu-Zaid Exam. 2 Date: 20-12-2018 Problem () Steam enters a turbine with a mass flow rate o turbine develops a power of 1000 KW. At the inlet the pr MPa, the temperature is 400 °C, and the veloeity is exit, the pressure is 10 KPa, the quality is 0.9, and the velocity is (8 marks) pressure is 6 At the 10 m/s. m/s. Determine the rate of heat transfer to the...
Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be...
Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Air at 80 kPa and 127°C enters an adiabatic diffuser steadily at a rate of 5400 kg/h and leaves at 100 kPa. The velocity of the airstream is decreased from 230 m/s to 30 m/s as it passes through the diffuser. The gas constant of air is 0.287 kPa·m3/kg·K. The enthalpy of air at the inlet temperature of...
Water enters a diffuser at 80°C and 500 kPa with velocity of 100 m/s. It leaves...
Water enters a diffuser at 80°C and 500 kPa with velocity of 100 m/s. It leaves the diffuser at 150°C and 700 kPa. The ratio of the inlet to exit area (A/A) is 0.5. Calculate the heat transfer to the water during the process in kJ/kg. [10 Marks)
Water enters a diffuser at 80°C and 500 kPa with velocity of 100 m/s. It leaves...
Water enters a diffuser at 80°C and 500 kPa with velocity of 100 m/s. It leaves the diffuser at 150°C and 700 kPa. The ratio of the inlet to exit area (A/A2) is 0.5. Calculate the heat transfer to the water during the process in kJ/kg. [10 Marks]
Air at 10 degree C and 80 kPa enters the diffuser of a jet engine steadily...
Air at 10 degree C and 80 kPa enters the diffuser of a jet engine steadily with a velocity of 200 m/s. The inlet area of the diffuser is 0.4 m^2.The air leaves the diffuser with a velocity that is very small compared with the inlet velocity. Determine the mass flow rate of the air and the temperature of the air leaving the diffuser. Air at 100 kPa and 280 K is compressed steadily to 600 kPa and 400 K....
5-30 Air enters an adiabatic nozzle steadily at 300 kPa, 200°C, and 30 m/s and leaves...
5-30 Air enters an adiabatic nozzle steadily at 300 kPa, 200°C, and 30 m/s and leaves at 100 kPa and 180 m/s. The inlet area of the nozzle is 80 cm². Determine (a) the mass flow rate through the nozzle, (b) the exit temperature of the air, and (c) the exit area of the nozzle. Answers: (a) 0.5304 kg/s, (b) 184.6°C, (c) 38.7 cm P = 300 kPa T, = 200°C Vi = 30 m/s A = 80 cm AIR...
Air enters a diffuser at 102 KPa , 57 Celcius , and 285 m/s and exits...
Air enters a diffuser at 102 KPa , 57 Celcius , and 285 m/s and exits at 303 kPa , 10 Celcius , and 12 m/s. The area of the inlet of the diffuser is 97 cm2. Find the mass flow rate of air (kg/s), find the area of the exit of the diffuser (cm2), find the average heat transfer time rate (kW)
Air enters a diffuser at 102 KPa , 57 Celcius , and 285 m/s and exits...
Air enters a diffuser at 102 KPa , 57 Celcius , and 285 m/s and exits at 303 KPa , 10 Celcius , and 12 m/s. The area of the inlet of the diffuser is 97 cm2. Find the mass flow rate of air (kg/s), find the area of the exit of the diffuser (cm2), find the average heat transfer time rate (kW)
Air enters a diffuser at 102 KPa , 57 Celcius , and 285 m/s and exits...
Air enters a diffuser at 102 KPa , 57 Celcius , and 285 m/s and exits at 303 KPa , 10 Celcius , and 12 m/s. The area of the inlet of the diffuser is 97 cm2. Find the mass flow rate of air (kg/s), find the area of the exit of the diffuser (cm2), find the average heat transfer time rate (kW)
Required information Problem 05.038. Diffuser flow DEPENDENT MULTI-PART PROBLEM - ASSIGN ALL PARTS NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Air at 80 kPa, 27'C, and 220 m/s enters a diffuser at a rate of 2.5 kg/s and leaves at 42'C. The exit area of the diffuser is 360 cm2. The air is estimated to lose heat at a rate of 18 kJ/s during this process. The...
Mutah University Faculty of Eng mies I Prof. M. Abu-Zaid Exam. 2 Date: 20-12-2018 Problem () Steam enters a turbine with a mass flow rate o turbine develops a power of 1000 KW. At the inlet the pr MPa, the temperature is 400 °C, and the veloeity is exit, the pressure is 10 KPa, the quality is 0.9, and the velocity is (8 marks) pressure is 6 At the 10 m/s. m/s. Determine the rate of heat transfer to the...
Water enters a diffuser at 80°C and 500 kPa with velocity of 100 m/s. It leaves the diffuser at 150°C and 700 kPa. The ratio of the inlet to exit area (A/A) is 0.5. Calculate the heat transfer to the water during the process in kJ/kg. [10 Marks)
Water enters a diffuser at 80°C and 500 kPa with velocity of 100 m/s. It leaves the diffuser at 150°C and 700 kPa. The ratio of the inlet to exit area (A/A2) is 0.5. Calculate the heat transfer to the water during the process in kJ/kg. [10 Marks]
Air at 10 degree C and 80 kPa enters the diffuser of a jet engine steadily with a velocity of 200 m/s. The inlet area of the diffuser is 0.4 m^2.The air leaves the diffuser with a velocity that is very small compared with the inlet velocity. Determine the mass flow rate of the air and the temperature of the air leaving the diffuser. Air at 100 kPa and 280 K is compressed steadily to 600 kPa and 400 K....
5-30 Air enters an adiabatic nozzle steadily at 300 kPa, 200°C, and 30 m/s and leaves at 100 kPa and 180 m/s. The inlet area of the nozzle is 80 cm². Determine (a) the mass flow rate through the nozzle, (b) the exit temperature of the air, and (c) the exit area of the nozzle. Answers: (a) 0.5304 kg/s, (b) 184.6°C, (c) 38.7 cm P = 300 kPa T, = 200°C Vi = 30 m/s A = 80 cm AIR...
Air enters a diffuser at 102 KPa , 57 Celcius , and 285 m/s and exits at 303 kPa , 10 Celcius , and 12 m/s. The area of the inlet of the diffuser is 97 cm2. Find the mass flow rate of air (kg/s), find the area of the exit of the diffuser (cm2), find the average heat transfer time rate (kW)
