Flux Density

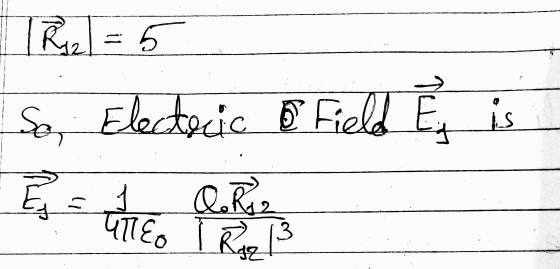

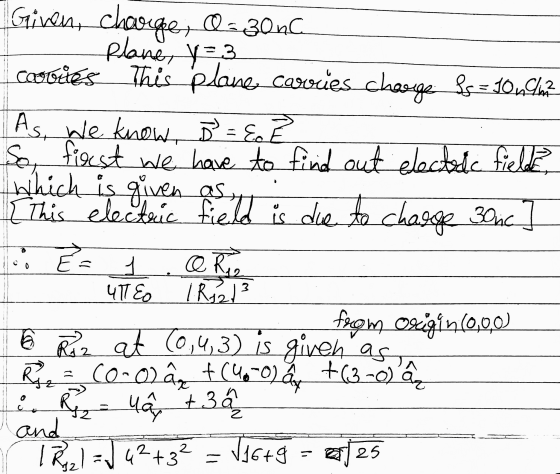

A point charge of 30 nC is located at the origin, while plane y = 3 carries charge 10 nC/m2. Find D at (0,4,3)
Homework Answers

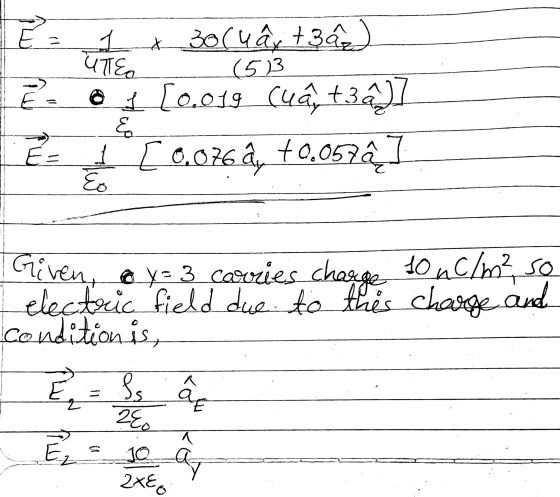

![E = 1 UTTE ㅗ (513 x 30(4ârtza of [0.019 Cuay +39]] हो [0.076 ay +0.057&] ६ & E= Given @ ya 3 carries charge 10 nC/m? So elect](http://img.homeworklib.com/questions/2b359a40-82e7-11eb-a7d7-ed69cd0feeb4.png?x-oss-process=image/resize,w_560)
![E 5 Eo E So, total electric field, E & Es + E2 12 / 1 (0.076 â +0.057 , 7 E 0.076 å +0.057 22+5ây 1 [5.076ậy + 0.057 â ] Eo S](http://img.homeworklib.com/questions/2bf80b70-82e7-11eb-a371-cd381a50bf56.png?x-oss-process=image/resize,w_560)

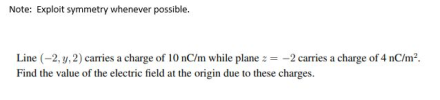

Note: Exploit symmetry whenever possible. Line (-2, y, 2) carries a charge of 10 nC/m while...
Note: Exploit symmetry whenever possible. Line (-2, y, 2) carries a charge of 10 nC/m while plane z = -2 carries a charge of 4 nC/m². Find the value of the electric field at the origin due to these charges.
A circular plate, which lies on x-y plane carries a constant surface charge density eA= 10...
A circular plate, which lies on x-y plane carries a constant surface charge density eA= 10 nC / m2 at the shaded regions. The inner circle has a cadis of 1cm and the outer has 2cm. @ Calalate the B at point P, which is at Sum distance from the center To Write B in spherical coordinates. 5.Plood X-Y PLANE VIEW MIN 10
Let a uniform surface charge density of 5 nC/m2 be present at the z = 0...
Let a uniform surface charge density of 5 nC/m2 be present at the z = 0 plane, a uniform line charge density of 8 nC/m be located at x = 0, z = 4, and a point charge of 2pC be present at P(2, 0, 0). If V 0 at M(O, 0, 5), find Vat N(1, 2, 3)
Exercise 22.10 12 of 22 Part A Constants What is the total electric flux due to...
Exercise 22.10 12 of 22 Part A Constants What is the total electric flux due to these two point charges through a spherical surface centered at the origin and with radius γ 1-0.520 m ? A point charge q1 3.25 nC is located on the x- axis at x 1.85 m, and a second point charge q -7.00 nC is on the y-axis at y 1.15 m. 四 ? Submit Request Answer Part B What is the total electric flux...
Two charges are located in the x-y plane. If q-3.65 nC and is located at (x0.00...
Two charges are located in the x-y plane. If q-3.65 nC and is located at (x0.00 m, y 0.760 m), and the second charge has magnitude of g2 4.60 nC and is located at (x - 1.00 m, y - 0450 m). calculate the x and y components, E and Ey, of the electric field, E, in component form at the origin, (0,0). The Coulomb force constant is 1/K4xco) 8.99 x 10° N m2/c2 Ex N/C Ey N/C
Two charges are located in the x-y plane. If qi =-4.55 nC and is located at...
Two charges are located in the x-y plane. If qi =-4.55 nC and is located at (x = 0.00 m,y = 0.960 m), and the second charge has magnitude of 92 4.80 nC and is located at (x 1.50 m, y = 0.800 m, calculate the x and y components, E, and Ey, of the electric field, E, in component form at the origin, (0,0). The Coulomb force constant is 1(4Teo) 8.99 x 10 N m2/C2 N/C
Two charges are located in the x-y plane. If q1--2.15 nC and is located atx-0.00 m,...
Two charges are located in the x-y plane. If q1--2.15 nC and is located atx-0.00 m, y 1.160 m and the second charge has magnitude of q2 = 3.60 nC and is located at x = 1.50 m, y = 0.800 m, calculate the x and y components, Ex and Ey, of the electric field, E, in component form at the origin, (0,0) The Coulomb Force constant is 114πε。,-899 10° N. m2/C2. Number N/C Number N/C
Two charges are located in the x–y plane. If q1 = -2.90 nC and is located...
Two charges are located in the
x–y plane. If q1 = -2.90 nC and is located at x = 0.00 m, y = 1.000
m and the second charge has magnitude of q2 = 3.40 nC and is
located at x = 1.40 m, y = 0.600 m, calculate the x and y
components, Ex and Ey, of the electric field, , in component form
at the origin, (0,0). The Coulomb Force constant is 1/(4π ε0) =
8.99 × 109...
Problem 4: Charge q1=-6.5 nC is located at the coordinate system origin while charge q2 = -1.5 nC is located at (a, 0)
Problem 4: Charge q1=-6.5 nC is located at the coordinate system origin while charge q2 = -1.5 nC is located at (a, 0) where a = 1.5 m. The point P has coordinates (a, b), where b 3.5 m Part (a) At the point P. find the x-component of the electric field Ex in units of N/CPart (b) At the point P. find the y-component of the electric field Ey in units of NC.
Note: Exploit symmetry whenever possible. Line (-2, y, 2) carries a charge of 10 nC/m while plane z = -2 carries a charge of 4 nC/m². Find the value of the electric field at the origin due to these charges.
A circular plate, which lies on x-y plane carries a constant surface charge density eA= 10 nC / m2 at the shaded regions. The inner circle has a cadis of 1cm and the outer has 2cm. @ Calalate the B at point P, which is at Sum distance from the center To Write B in spherical coordinates. 5.Plood X-Y PLANE VIEW MIN 10
Let a uniform surface charge density of 5 nC/m2 be present at the z = 0 plane, a uniform line charge density of 8 nC/m be located at x = 0, z = 4, and a point charge of 2pC be present at P(2, 0, 0). If V 0 at M(O, 0, 5), find Vat N(1, 2, 3)
Exercise 22.10 12 of 22 Part A Constants What is the total electric flux due to these two point charges through a spherical surface centered at the origin and with radius γ 1-0.520 m ? A point charge q1 3.25 nC is located on the x- axis at x 1.85 m, and a second point charge q -7.00 nC is on the y-axis at y 1.15 m. 四 ? Submit Request Answer Part B What is the total electric flux...
Two charges are located in the x-y plane. If q-3.65 nC and is located at (x0.00 m, y 0.760 m), and the second charge has magnitude of g2 4.60 nC and is located at (x - 1.00 m, y - 0450 m). calculate the x and y components, E and Ey, of the electric field, E, in component form at the origin, (0,0). The Coulomb force constant is 1/K4xco) 8.99 x 10° N m2/c2 Ex N/C Ey N/C
Two charges are located in the x-y plane. If qi =-4.55 nC and is located at (x = 0.00 m,y = 0.960 m), and the second charge has magnitude of 92 4.80 nC and is located at (x 1.50 m, y = 0.800 m, calculate the x and y components, E, and Ey, of the electric field, E, in component form at the origin, (0,0). The Coulomb force constant is 1(4Teo) 8.99 x 10 N m2/C2 N/C
Two charges are located in the x-y plane. If q1--2.15 nC and is located atx-0.00 m, y 1.160 m and the second charge has magnitude of q2 = 3.60 nC and is located at x = 1.50 m, y = 0.800 m, calculate the x and y components, Ex and Ey, of the electric field, E, in component form at the origin, (0,0) The Coulomb Force constant is 114πε。,-899 10° N. m2/C2. Number N/C Number N/C
Two charges are located in the
x–y plane. If q1 = -2.90 nC and is located at x = 0.00 m, y = 1.000
m and the second charge has magnitude of q2 = 3.40 nC and is
located at x = 1.40 m, y = 0.600 m, calculate the x and y
components, Ex and Ey, of the electric field, , in component form
at the origin, (0,0). The Coulomb Force constant is 1/(4π ε0) =
8.99 × 109...
