Statics Question

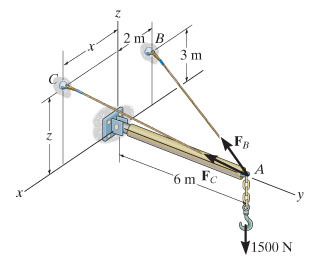

Two cables are used to secure the overhang boom in position and support the 1500 N load. if the resultant force is directed along the boom from point A towards O,determine the values of x and z for the coordinates of point C. Set Fb = 1810 N and Fc = 2330 N. Then determine the magnitude of the resultantforce.
Homework Answers
solution I am providing is with Fb = 1610 N and Fc = 2400 N put in your values and follow the procedure you will get your answer
Two cables are used to secure the overhang boom inposition and support the 1500-N load...
Two cables are used to secure the overhang boom in
position and support the 1500-N load The resultant force is
directed along the boom from point A towards O. Set FB=1610N and Fc=
2800N Part A Determine the z coordinate of point C. Part B Determine the z coordinate of point C. Part C Determine the magnitude of the resultant force.
The antenna tower is supported by three cables. If the forces of these cables acting on the FB = 520 N, FC = 680 N. and FD = 560 N
solve in matlab script/commandThe antenna tower is supported by three cables. If the forces of these cables acting on the FB = 520 N, FC = 680 N and FD = 560 N. Determine the magnitude and coordinate direction angles of the resultant force acting at A.
Please explain each step I want to make sure i did my math correctly 04) If...
Please explain each step I want
to make sure i did my math correctly
04) If the resultant force is required to act along the positive u-axis and have a magnitude of Fs Q5) The truck is to be towed using two ropes, determine the magnitudes of forces FA and FB acting on each rope in order to develop a resultant force of 950 N directed along the positive r-axis. Set 8-50 FA 20% FR Q6) The same truck in...
Chapter 2 Problems Analytical solutions using force components. Check graphically 2.9 Three members of a truss...
Chapter 2 Problems Analytical solutions using force components. Check graphically 2.9 Three members of a truss frame into a steel gusset te as shown. All forces are concurrent at point O Determine the resultant of the three forces that must be carried by the gusset plate 2.10 Two cables with known tensions as shown are attached to a pole at point A. Determine the resultant force to which the pole is subjected. Scale: 1 mm-10 N Note: The pole and...
1. Two forces, F1 and F2, are pulling on an eye bolt at point A in the picture below a. Determine...
1. Two forces, F1 and F2, are pulling on an eye bolt at point A in the picture below a. Determine the coordinates of point C. b. Determine the position vector rac, the magnitude of the position vector, TraclTac; the unit vector uaci and finally the force vector, c. Determine the position vector rab the magnitude of the position vector, Trabl Tab; the unit vector lab; and finally the force vector, F2. d. Determine the resultant force vector, FR -...
The same truck in Q5 is to be lowed using two ropes. If the resultant force is to be 950 N.
The same truck in Q5 is to be lowed using two ropes. If the resultant force is to be 950 N. directed along the positive x-axis, determine the magnitudes of forces FA and Fs acting on each rope and the angle θ of FB so that the magnitude of FB is a minimum. Facts at 20° from the x-axis shown.
please do step by step procedure, thank you Two cables AB and AC secure the post....
please do step by step procedure, thank you
Two cables AB and AC secure the post. The cables are pre-stressed so that the forces exerted by the cables on the post are TAB = 1200 N and TAC 1800 N. Determine the magnitude and direction of the resultant force R TAB+Tac acting at point A AC 12 m AB 4 m 4 m m.
Given: Two cables are attached to a hook at Pt A (see figure). The tension in...
Given: Two cables are attached to a hook at Pt A (see figure). The tension in cable AB is 600 lb. The tension in cable AC is 850 lb Determine the resultant force magnitude and corresponding coordinate direction angles acting on the hook. Retain three significant digits in each of your final answers. For your diagram, carefully and neatly redraw the cables AB and AC on a rotated coordinate system as shown. Find: Label endpoints. Dimension such that the position...
Please explain each step I want
to make sure i did my math correctly
04) If the resultant force is required to act along the positive u-axis and have a magnitude of Fs Q5) The truck is to be towed using two ropes, determine the magnitudes of forces FA and FB acting on each rope in order to develop a resultant force of 950 N directed along the positive r-axis. Set 8-50 FA 20% FR Q6) The same truck in...
Chapter 2 Problems Analytical solutions using force components. Check graphically 2.9 Three members of a truss frame into a steel gusset te as shown. All forces are concurrent at point O Determine the resultant of the three forces that must be carried by the gusset plate 2.10 Two cables with known tensions as shown are attached to a pole at point A. Determine the resultant force to which the pole is subjected. Scale: 1 mm-10 N Note: The pole and...
1. Two forces, F1 and F2, are pulling on an eye bolt at point A in the picture below a. Determine the coordinates of point C. b. Determine the position vector rac, the magnitude of the position vector, TraclTac; the unit vector uaci and finally the force vector, c. Determine the position vector rab the magnitude of the position vector, Trabl Tab; the unit vector lab; and finally the force vector, F2. d. Determine the resultant force vector, FR -...
please do step by step procedure, thank you
Two cables AB and AC secure the post. The cables are pre-stressed so that the forces exerted by the cables on the post are TAB = 1200 N and TAC 1800 N. Determine the magnitude and direction of the resultant force R TAB+Tac acting at point A AC 12 m AB 4 m 4 m m.
Given: Two cables are attached to a hook at Pt A (see figure). The tension in cable AB is 600 lb. The tension in cable AC is 850 lb Determine the resultant force magnitude and corresponding coordinate direction angles acting on the hook. Retain three significant digits in each of your final answers. For your diagram, carefully and neatly redraw the cables AB and AC on a rotated coordinate system as shown. Find: Label endpoints. Dimension such that the position...
