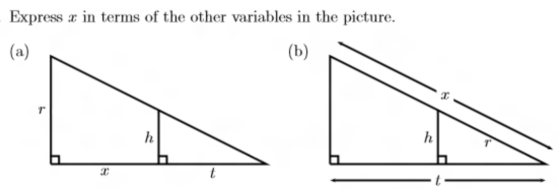

Express x in terms of the other variables in the picture.

Question

Question

math algebra

Answer 1

Answer #1

1st one

x/h= (x+t)/r

2nd one

Not sure the way you have it drawn.

If you label the unlabeled side z (r in the first one)

h/z= t/r

answered by: cold

Answer 2

Answer #2

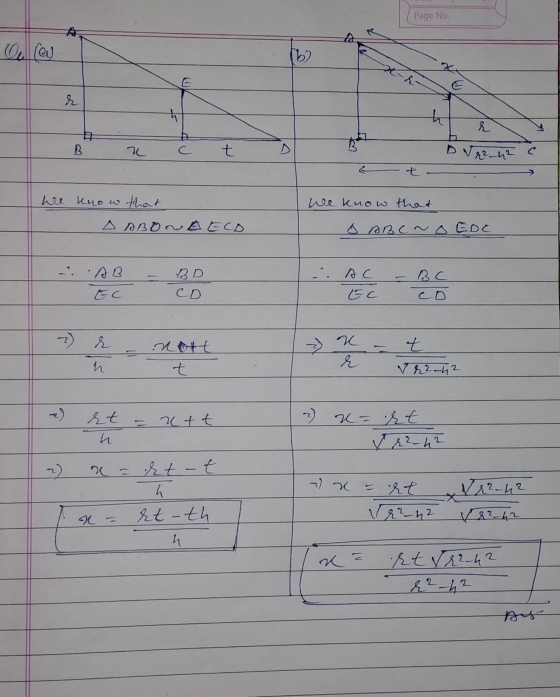

Page No. (O2 B a c t D B D vez_h2 c we know that hee know that A ABONA ECD Kontv ACDI - AB - 3D EC CD - AC GC - BC co 7 r not
