Homework Answers
Add Answer to:

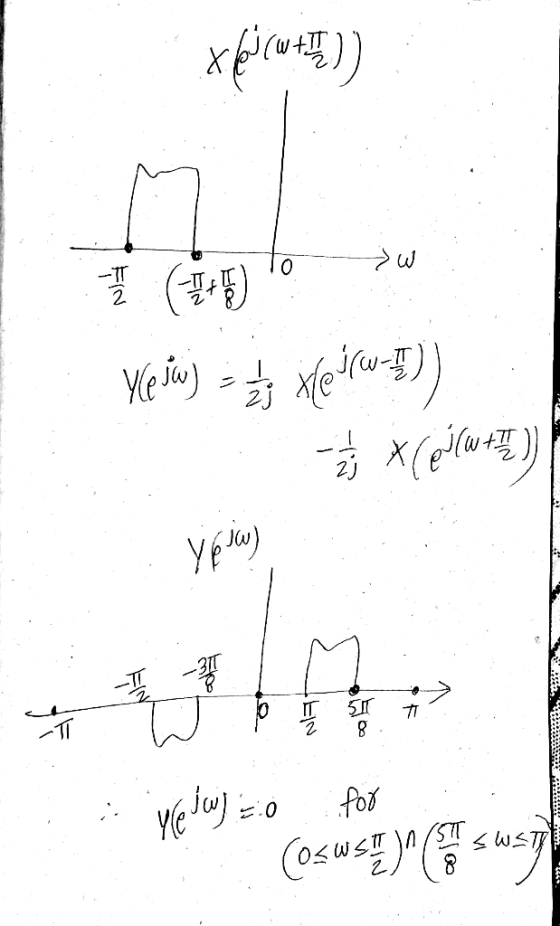

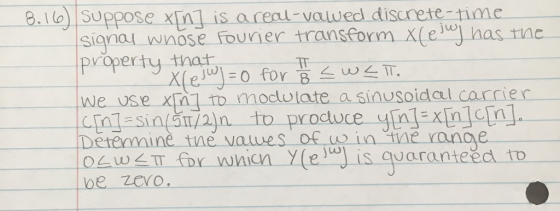

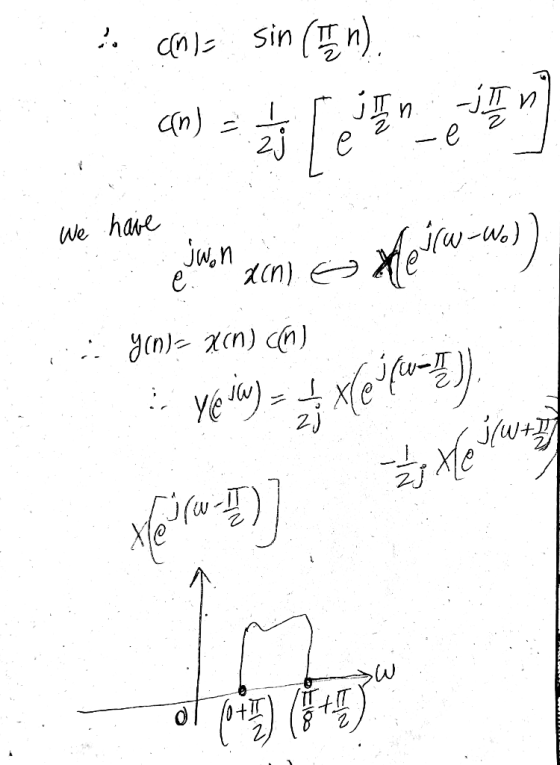

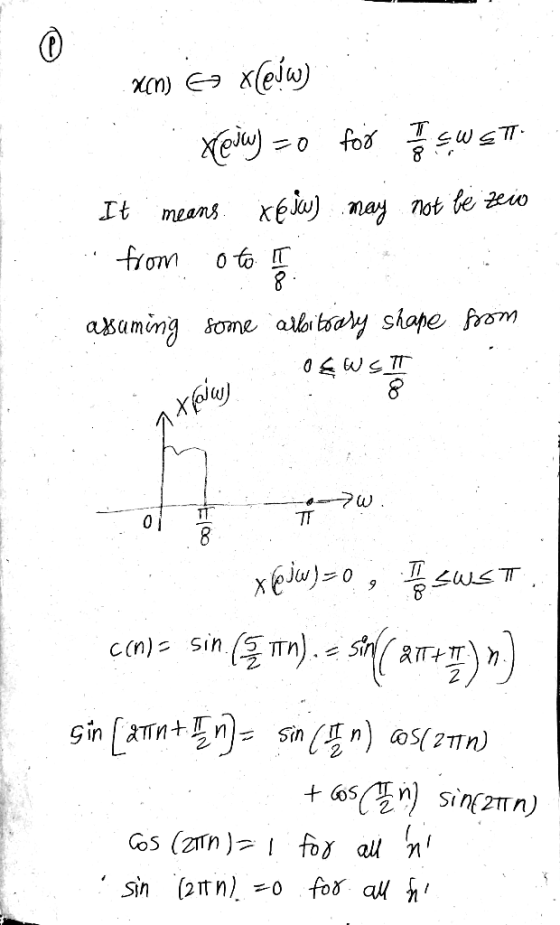

8.1o) SUppose xn is a real-valwed discrete-time signa wnose founer transform X(e nas tac property...
2. Verify the time reversal property of the discrete Fourier transform. That is, given xn]Xk, then...
2. Verify the time reversal property of the discrete Fourier transform. That is, given xn]Xk, then x-n, mod N] X[-k, mod N].
Part 1 (Calculation): The Z-transform (ZT) converts a discrete time-domain signal, which is a sequence of...
Part 1 (Calculation): The Z-transform (ZT) converts a discrete time-domain signal, which is a sequence of real or complex numbers, into a complex frequency-domain representation. It is the equivalent of the Laplace transform for discrete systems. The one-sided ZT, used for causal signals and systems, is defined as follows: Consider the digital system (filter) described by the input/output difference equation and z-domain transfer function Hz: yn-0.88 yn-1=0.52 xn-0.4 xn-1 Hzz=Y(z)X(z)=0.52-0.4 z-11-0.88 z-1=0.52 z-0.4z-0.88 Assuming a unit step function input, i.e.,...
1. Draw frequency domain representations (sketches of the real and imaginary parts of the Fourier transform)...
1. Draw frequency domain representations (sketches of the real and imaginary parts of the Fourier transform) for both cos(2*pi*fc*t) and sin(2*pi*fc*t), for a carrier waveform. ____________________ Now suppose we have a sinusoidal signal of frequency fi, where fi << fc. Let the signal be m(t)=cos(2*pi*fi*t) and the carrier be cos(2*pi*fc*t). Say we mix m(t) up to carrier frequency fc when we multiply m(t) by the carrier to create the modulated signal, s(t) = m(t) * cos(2*pi*fc*t). Draw the real part...
Problem 4 Let x(t) be a continuous time signal whose Fourier transform has the property that Xe(ja)0 for lal 2 2,00...
Problem 4 Let x(t) be a continuous time signal whose Fourier transform has the property that Xe(ja)0 for lal 2 2,000. A discrete time signal aIn]x(n(0.5x 10-3)) is obtained. For each of the following constra ints on Xa(e/n), the Fourier transform of xaln], determine the coresponding constraint on Xe(ja) a) X(en) is real b) The maximum value of X4 (ea) over all is 1 c) Xa(ea)= Xa(e/ a-)
Problem 4 Let x(t) be a continuous time signal whose Fourier transform...
Explain how fourier transform is done? 1. (8 points) Suppose a particular discrete-time linear and time-invariant...
Explain how fourier transform is done?
1. (8 points) Suppose a particular discrete-time linear and time-invariant (LTI) system has frequency response H(e) and that when its input is z[n] = 2 cos (n). the corresponding output is y[n] = 6 cos (n+ ) Find the real part and imaginary part of H(e)") at w = .
A discrete-time signal x_d[n] has a Fourier transform X_d(e^j omega)with the property that X_d(e-j omega) =...
A discrete-time signal x_d[n] has a Fourier transform X_d(e^j omega)with the property that X_d(e-j omega) = 0 for 3 pi/4 lessthanorequalto |omega| lessthanorequalto pi The signal is convened into a continuous-time signal x_c(t) = T sigma^infinity _n = -infinity X_d[n] sin pi/T (t - nT)/pi (t - nT), Where T = 10^-3 Determine the value of omega for which the Fourier transform X_c(j omega) of x_c(t) is guaranteed to be zero.
Bonus Question: Determine the Fourier Transform using the Fourier Transform integral for x(t) and then answer...
Bonus Question: Determine the Fourier Transform using the Fourier Transform integral for x(t) and then answer (b). (a) x(t) = 8(t) -e-tu(t) (b) Plot the magnitude of the Fourier Spectrum. Useful Formula: Fourier Transform: F[f(t)] = F(w) sof(t)e-jw dt Inverse Fourier Transform: F-1[F(w)] = f (t) = 24., F(w)ejwidw Time Transformation property of Fourier Transform: f(at – to). FC)e=itoch Laplace Transform: L[f(t)] = F(s) = $© f(t)e-st dt Shifting property: L[f(t – to)u(t – to)] = e-toSF(s) e [tuce) =...
Determine the system response y(t) for h(t)=u(t)+u(t-2) and x(t)=u(t). [Hint: use Laplace Transform multiplication: L[x(t)h(t)) =...
Determine the system response y(t) for h(t)=u(t)+u(t-2) and x(t)=u(t). [Hint: use Laplace Transform multiplication: L[x(t)h(t)) = x(s)H(s). Useful Formula: Fourier Transform: F[f(t)] = F(w) sof(t)e-jw dt Inverse Fourier Transform: F-1[F(w)] = f (t) = 24., F(w)ejwidw Time Transformation property of Fourier Transform: f(at – to). FC)e=itoch Laplace Transform: L[f(t)] = F(s) = $© f(t)e-st dt Shifting property: L[f(t – to)u(t – to)] = e-toSF(s) e [tuce) = 1 and c [u(e) = )
Please finish these questions. Thank you Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is giv...
Please finish these questions. Thank you
Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is given by m()-1+sin(2 fm) where fm-10 Hz. Sketch the signal m(t) in time domain b) Find the Fourier transform M(jo) of m(t) and sketch the magnitude of M(jo) c) If m(t) is amplitude modulated with a carrier signal by x(t)-m(t)cos(27r f,1) (where fe-1000 Hz), sketch...
Problem 3: Let x(n) be an arbitrary signal, not necessarily real valued, with Fourier transform X (w). Express the Fourier transforms of the following signals in terms of X() (C) y(n) = x(n)-x(n-1) (...
Problem 3: Let x(n) be an arbitrary signal, not necessarily real valued, with Fourier transform X (w). Express the Fourier transforms of the following signals in terms of X() (C) y(n) = x(n)-x(n-1) (d) v(n) -00x(k) (e) y(n)=x(2n) (f) y n even n odd , x(n/2), (n) 0 Problem 4: etermine the signal x(n) if its Fourier transform is as given in Fig. P4.12. X(a) 0 10 10 10 X(o) 0 X(a) Figure P4.12
Problem 3: Let x(n) be an...
2. Verify the time reversal property of the discrete Fourier transform. That is, given xn]Xk, then x-n, mod N] X[-k, mod N].
Problem 4 Let x(t) be a continuous time signal whose Fourier transform has the property that Xe(ja)0 for lal 2 2,000. A discrete time signal aIn]x(n(0.5x 10-3)) is obtained. For each of the following constra ints on Xa(e/n), the Fourier transform of xaln], determine the coresponding constraint on Xe(ja) a) X(en) is real b) The maximum value of X4 (ea) over all is 1 c) Xa(ea)= Xa(e/ a-)
Problem 4 Let x(t) be a continuous time signal whose Fourier transform...
Explain how fourier transform is done?
1. (8 points) Suppose a particular discrete-time linear and time-invariant (LTI) system has frequency response H(e) and that when its input is z[n] = 2 cos (n). the corresponding output is y[n] = 6 cos (n+ ) Find the real part and imaginary part of H(e)") at w = .
A discrete-time signal x_d[n] has a Fourier transform X_d(e^j omega)with the property that X_d(e-j omega) = 0 for 3 pi/4 lessthanorequalto |omega| lessthanorequalto pi The signal is convened into a continuous-time signal x_c(t) = T sigma^infinity _n = -infinity X_d[n] sin pi/T (t - nT)/pi (t - nT), Where T = 10^-3 Determine the value of omega for which the Fourier transform X_c(j omega) of x_c(t) is guaranteed to be zero.
Bonus Question: Determine the Fourier Transform using the Fourier Transform integral for x(t) and then answer (b). (a) x(t) = 8(t) -e-tu(t) (b) Plot the magnitude of the Fourier Spectrum. Useful Formula: Fourier Transform: F[f(t)] = F(w) sof(t)e-jw dt Inverse Fourier Transform: F-1[F(w)] = f (t) = 24., F(w)ejwidw Time Transformation property of Fourier Transform: f(at – to). FC)e=itoch Laplace Transform: L[f(t)] = F(s) = $© f(t)e-st dt Shifting property: L[f(t – to)u(t – to)] = e-toSF(s) e [tuce) =...
Determine the system response y(t) for h(t)=u(t)+u(t-2) and x(t)=u(t). [Hint: use Laplace Transform multiplication: L[x(t)h(t)) = x(s)H(s). Useful Formula: Fourier Transform: F[f(t)] = F(w) sof(t)e-jw dt Inverse Fourier Transform: F-1[F(w)] = f (t) = 24., F(w)ejwidw Time Transformation property of Fourier Transform: f(at – to). FC)e=itoch Laplace Transform: L[f(t)] = F(s) = $© f(t)e-st dt Shifting property: L[f(t – to)u(t – to)] = e-toSF(s) e [tuce) = 1 and c [u(e) = )
Please finish these questions. Thank you
Given find the Fourier transform of the following: (a) e dt 2T(2 1) 4 cos (2t) (Using properties of Fourier Transform to find) a) Suppose a signal m(t) is given by m()-1+sin(2 fm) where fm-10 Hz. Sketch the signal m(t) in time domain b) Find the Fourier transform M(jo) of m(t) and sketch the magnitude of M(jo) c) If m(t) is amplitude modulated with a carrier signal by x(t)-m(t)cos(27r f,1) (where fe-1000 Hz), sketch...
Problem 3: Let x(n) be an arbitrary signal, not necessarily real valued, with Fourier transform X (w). Express the Fourier transforms of the following signals in terms of X() (C) y(n) = x(n)-x(n-1) (d) v(n) -00x(k) (e) y(n)=x(2n) (f) y n even n odd , x(n/2), (n) 0 Problem 4: etermine the signal x(n) if its Fourier transform is as given in Fig. P4.12. X(a) 0 10 10 10 X(o) 0 X(a) Figure P4.12
Problem 3: Let x(n) be an...
