Design a second-order Butterworth low-pass filter to satisfy the specifications a. The dc gain is...

Question

Question

Design a second-order Butterworth low-pass filter to satisfy the specifications a. The dc gain is unity (zero dB); b. The gai

engineering Electrical-Engineering

Answer 1

Answer #1

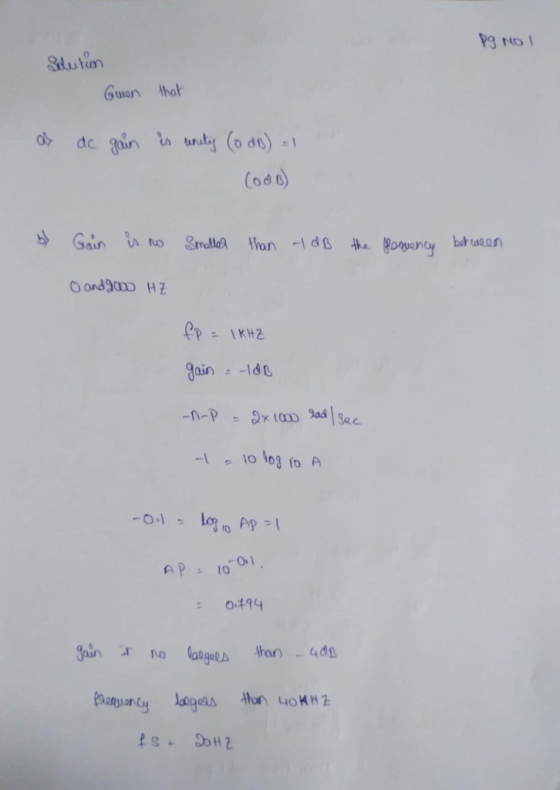

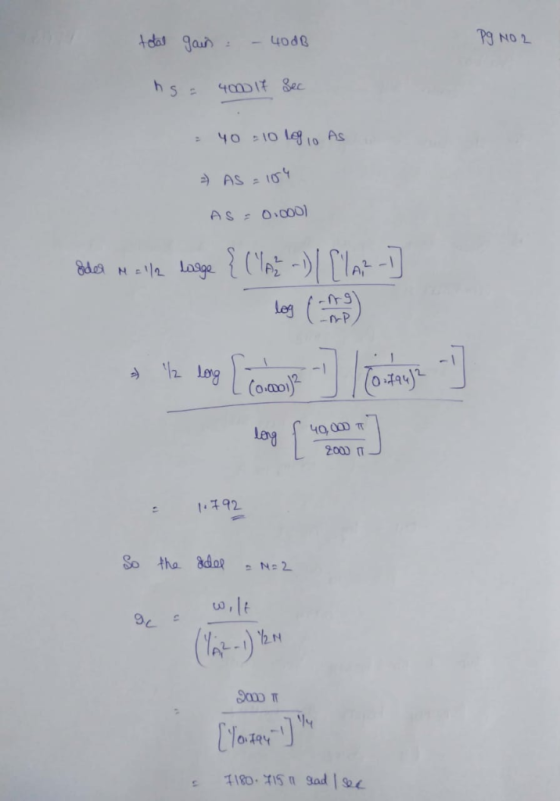

dat gauuod -1 loy 1 92 0. an ol. 31911 3 184 75

Answer 2

Similar Homework Help Questions

Design a second-order Butterworth low-pass filter with a DC gain of 0 dB and a -3...

Design a second-order Butterworth low-pass filter with a DC gain of 0 dB and a -3 dB frequency of 5.24 kHz. (include circuit design w/ component values)
13.12 Design an active Butterworth low-pass filter with +16 dB in the dc limit, -40 dB...

13.12 Design an active Butterworth low-pass filter with +16 dB in the dc limit, -40 dB at 20 kHz, and fo4 kHz.
Design a low-pass Butterworth filter of the lowest order possible that has a cutoff frequency of ...

Design a low-pass Butterworth filter of the lowest order possible that has a cutoff frequency of 100 kHz and a no more then -30 dB at 600kHz. Use as many 50Ω resistors as possible. Draw the circuit.

Design a first order high-pass Butterworth filter that achieves the following specifications: Cutoff frequency = 770...

Design a first order high-pass Butterworth filter that achieves the following specifications: Cutoff frequency = 770 Hz Stop-band corner frequency = 132 Hz dB slope = 20dB / decade Gain at 132 Hz ≈ -14.9 dB Show working for all determined values of R and C
3.5 Design both (a) a Butterworth and (b) a Chebyshev analog low-pass filter that have a...

3.5 Design both (a) a Butterworth and (b) a Chebyshev analog low-pass filter that have a -3-dB cutoff frequency of 100 rad/sec and a stopband attenuation of 25 dB o greater for all radian frequencies past 250 rad/sec. Plot 20 log H ) for your filters and show that you satisfy the requirements at the critical frequencies.
9. Design a second-order Butterworth low-pass filter with a 0.01 ?F capacitor and a 10 knesstor...

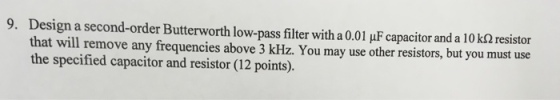

9. Design a second-order Butterworth low-pass filter with a 0.01 ?F capacitor and a 10 knesstor that will remove any frequencies above 3 kHz. You may use other resistors, but you must use the specified capacitor and resistor (12 points).
