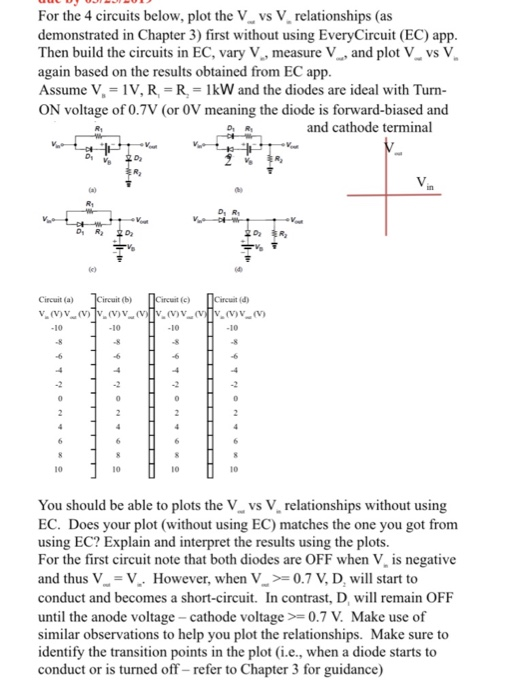

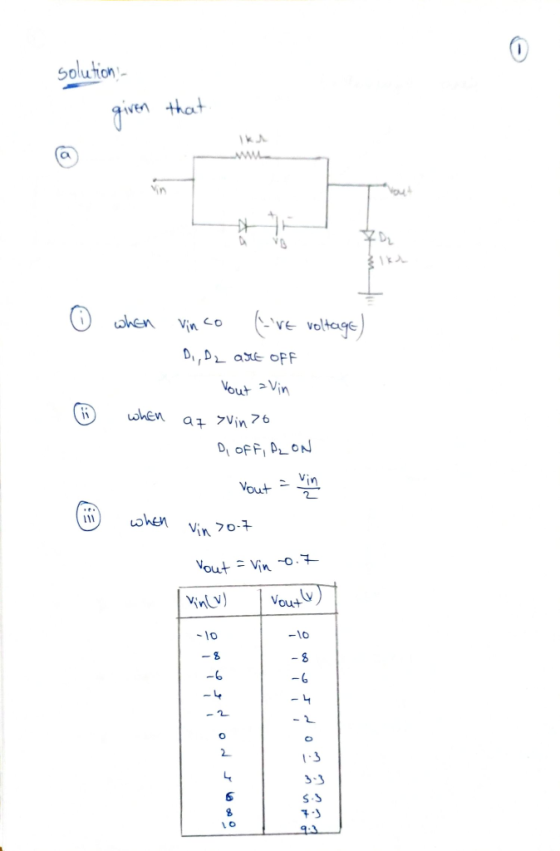

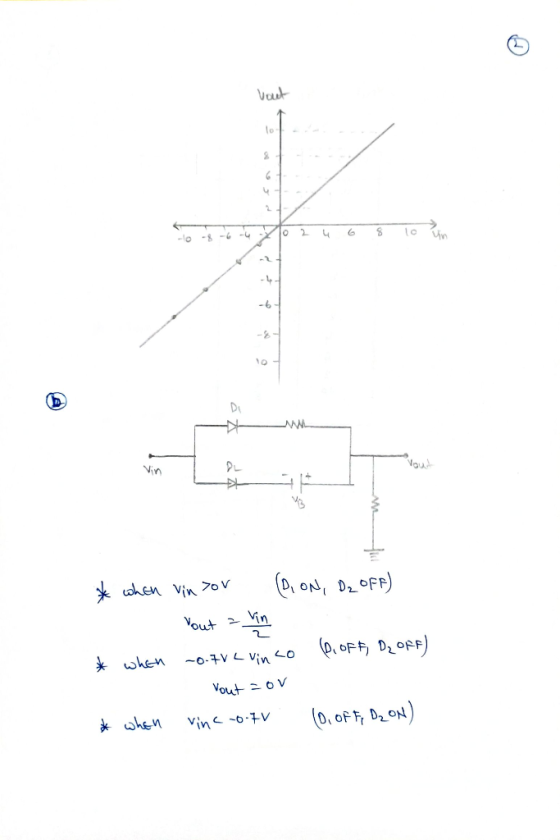

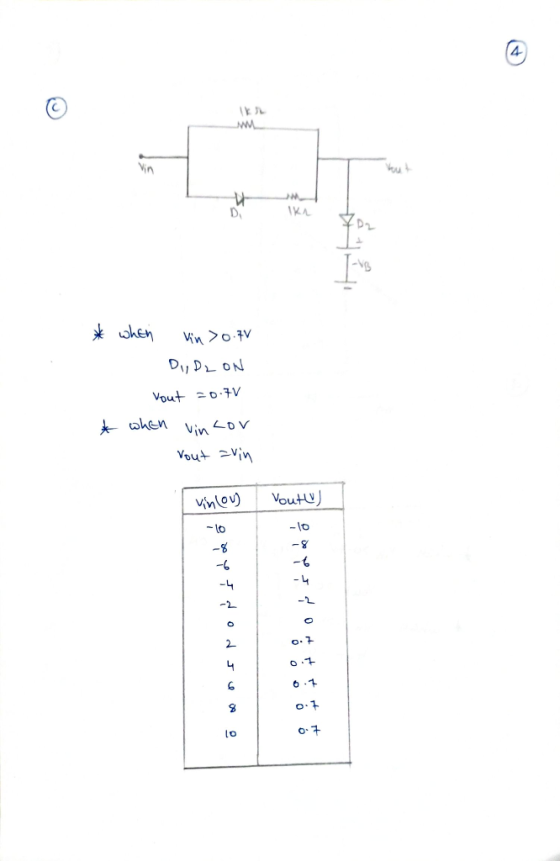

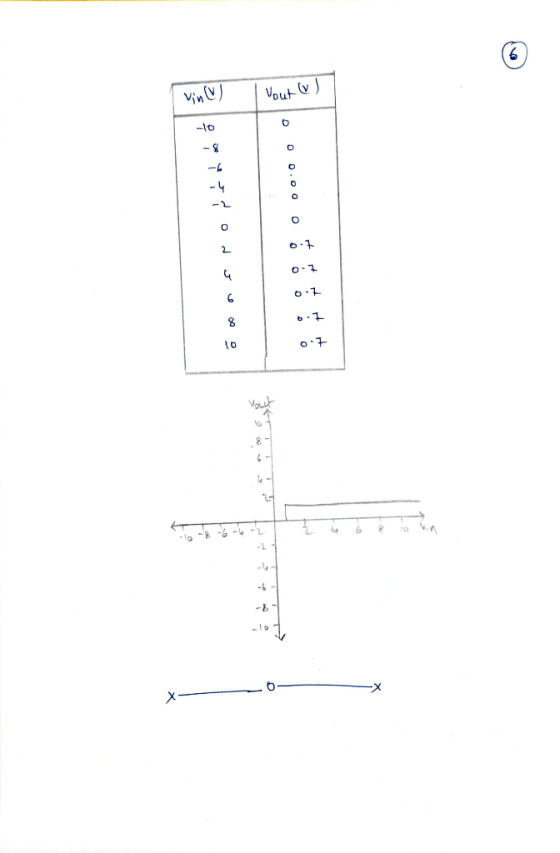

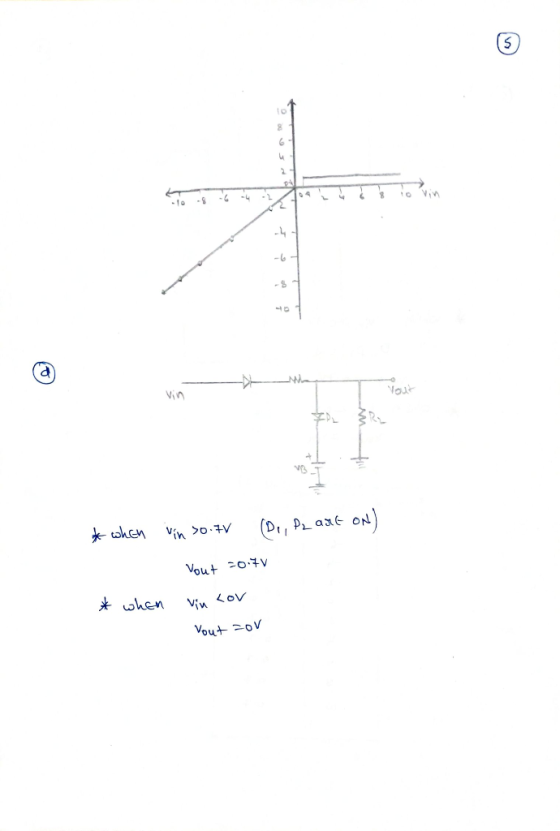

For the 4 circuits below, plot the V vs V, relationships (as demonstrated in Chapter 3) first wit...
lai). In the diode circuit below use iterative method (use at least 3 iterations) to find the diode voltage and current, if VDD=2.0 V, R= 1 KO2, the diode has Is - 10e- 15 A Find diode voltage and current using constant 0.7 V drop model. comment on the results of (i) and (ii) (iii) ang DV. b. Both diodes in the circuit below are rated 0.7V, 1mA. R=1KN Sketch vo vs vi If vi = 2sinot, on the same...
This is a Diode constant voltage model - clipping
circuits
Please explain steps as you solve. Thank you very much for
your help. please ask if there is anything not clear about the
problem
W (a) For the circuit shown below use the constant voltage diode model (Vp=0.7 V), and find the state of diodes D, and D2 (ie. ON or OFF) and determine the voltage and the current for each. 32k2 OV 5 mA 103=_ ; VD3= 104= ;...
(10pts) 1. (a). Use the following i-v characteristic, plot the load line and find the Q-point from the graph for the following circuit if V 5V and R 2.25k2. Use constant voltage drop diode model with Vo-0.5V as shown in the following Figure. İD (A) 0.002 0.001 -7 -6 -5-4-3 -2 112 3 4 5 6 7 Up(V) -0.001 -0.002 (20pts) (b) Find the Q-point for the three diodes in the following circuit. Use the constant-voltage -drop (CVD) model (with...
Ctri Question 3 (20 Marks) Lab 1-Zener Circuits and Applications Theory: Zener diode is designed to operate in reverse conduction. Zener breakdown occurs at a precisely defined voltage, allowing the diode to be used as a voltage reference or clipper. While Zener diodes are usually operated in reverse conduction, they may also be operated in cutoff and forward conduction. There are two different effects that are used in "Zener diodes". The only practical difference is that the two types have...
2) Shown below is a c R2 = 7 Ω, R3 = 24 Ω, R4 = 10 ircuit with two switches. Si and S2M = 15 V, V.-5 V, V,-20 V, Rı = 15 Ω . 25s2 C,200F v -,,I -R, Г 2:0 start atp sition A. This creates two dependent circuits. The left circuit with only resistors '5 V-15A)(T)-YAG).2ov-ocharges the capacitor C, through resistor Rs with battery Vs(the capacitor is initially The switch 1 will start in the on/closed...
Design a FULL WAVE BRIDGE RECTIFIER circuit that will:
Take 120volts ac, 60 hz, sinusoidal waveform and convert
it to a “regulated “dc value
giving 12 volts +, - 1 volt across a 2000-ohm output
load resistor with no more than 2%
ripple voltage.
You may assume:
a. An ideal power transformer as discussed in class.
b. For hand computations, you must assume a diode given by
Figure 4.8 page 185.
c. A filter capacitor sized per the textbook equation...
nde) Figare 18 Circuit for Problem 15 Analysis 1. Plot the input and output vollage wavefoems nlt) and lt) as wel as the capacitor current iclt) for the input wavelorm shown in Fig ure 1.10 on the next page, Assume the capacitoris initially discharged 2 Determine the following numerical descriptors for lf) and iclf (a) Voltage values of t) at times-250, 650, and 960ms. (b) Peak capacitor current t Discass the relationship between the plots of the capacitor current ic(t)...
In the Circuit below find the phasor Vo of the output voltage vo-y when the input voltage us-f(t) Vs cos(ot) V. Plot 10log {lH(jo)l'3 function using the Bode Diagrams. Assume that all the Resistance units are in ΚΩ and all the Capacitance units are in μF. 0.25 0.4
In the Circuit below find the phasor Vo of the output voltage vo-y when the input voltage us-f(t) Vs cos(ot) V. Plot 10log {lH(jo)l'3 function using the Bode Diagrams. Assume that all...
Fall 2019 ECEN 206 Lab 4 Thevenin Equivalent Circuits Due First week of November Introduction: This lab focuses on the Thevenin equivalent circuit and maximum power transfer theorems Complex circuits are often replaced with their Thevenin equivalent to simplify analysis. For example, in the analysis of large industrial power systems the Thevenin equivalent is used in short circuit studies. Maximum power transfer is also an important concept which allows the designer to determine an optimal design when power is a...
B oth 100 Day PH262 Page 1 of 5 Lab #13 AC Circuits, Part 1 RC & RL, Phase Measurements THEORY The rotating phase representation for series AC circuits should be familiar from textbook and lecture notes A brief outline of the essential points is provided here. If a series RLC circuit is connected across a source of om which is a sinusoidal function of time, then und all its derivatives will also be inside. Sonce all demits in a...
