Homework Answers
To easy the complex

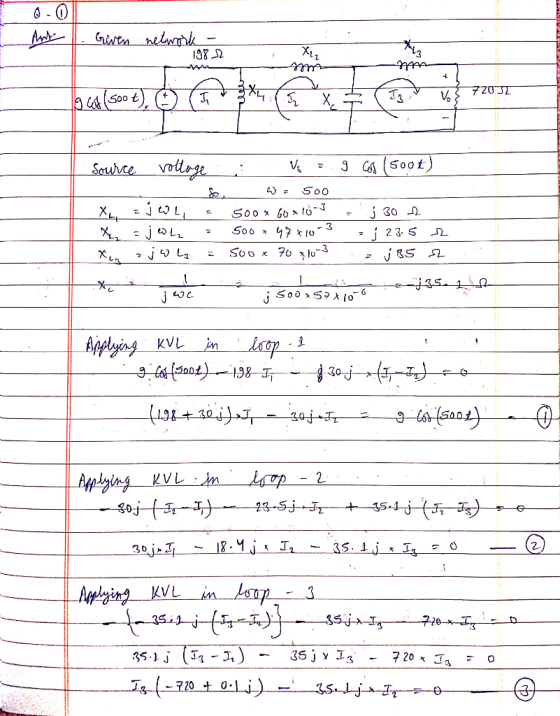

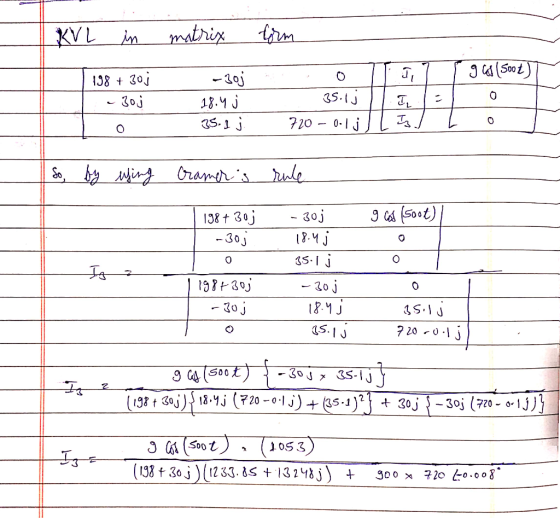

calculation, We should know to write the KVL equation directly in

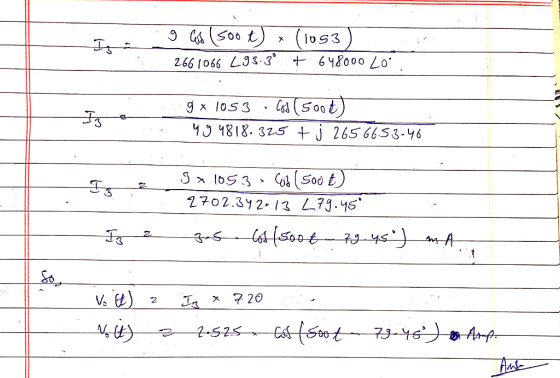

matrix form. After that find out the current in third loop by just
solving matrix determinant.
NOTE - In complex calculation, KVL matrix form is always preferably used.
We can use the nodel theorem also but complex calculation become much difficult in that.
