Homework Answers
Deflections are highly
exaggerated for better purpose of understanding.
Add Answer to:

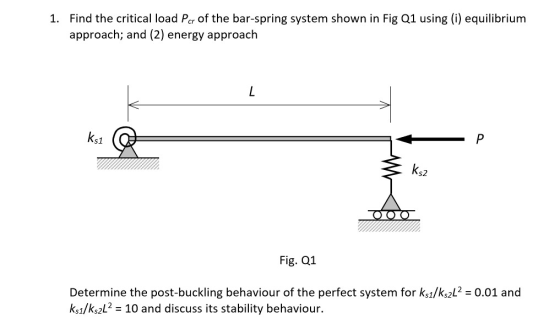

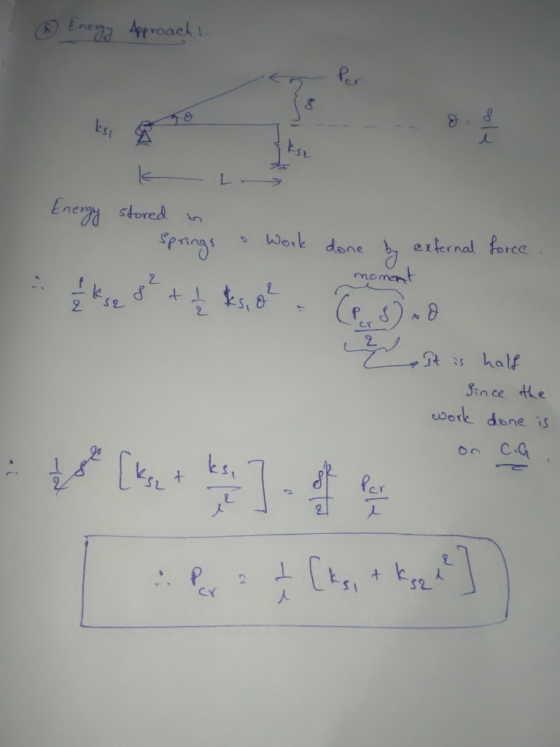

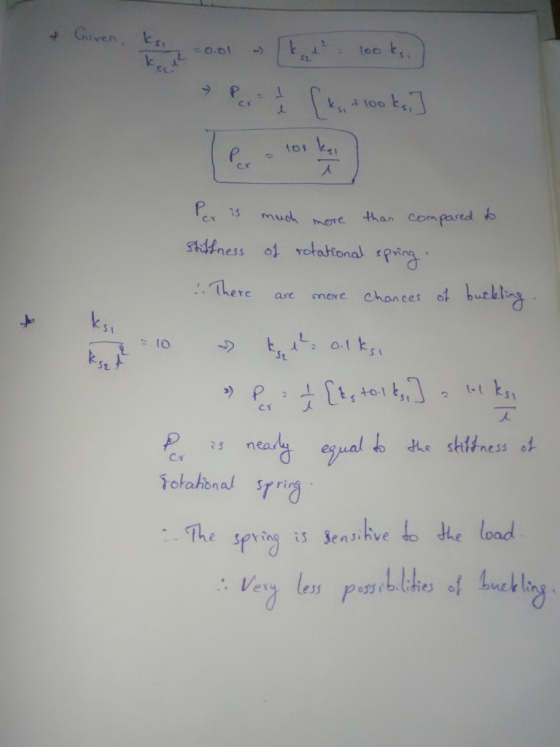

Find the critical load Por of the bar-spring system shown in Fig Q1 using (i) equilibrium approac...
1. Find the critical load Pcr using the bifurcation approach. 2. Investigate the stability behavi...
1. Find the critical load Pcr using the bifurcation
approach.
2. Investigate the stability behavior of the
asymmetric spring-bar model.
Please provide me with detailed solutions....
1. Find the critical load Per using the bifurcation approach. 0.5L 0.51 0.5 k,t s2 2. Investigate the stability behavior of the asymmetric spring-bar model ks 45"
1. Find the critical load Per using the bifurcation approach. 0.5L 0.51 0.5 k,t s2 2. Investigate the stability behavior of the asymmetric spring-bar model ks 45"
Q1. For the system shown in Figure1, the initial conditions are (-0)-0, 0) 2rad/s (i) Find its to...
Q1. For the system shown in Figure1, the initial conditions are (-0)-0, 0) 2rad/s (i) Find its total kinetic energy and total potential energy ii) Calculate how long the system can complete one full cycle of the movement; (iv) Determine the rotational displacement θ(1) under the given initial conditions. 30 cm 0.3 kg m2 0 cm cable 6(0)-2 rad/s 5 kg 40 kg cable 3.2 x 101N/Tm im Figure 1
Q1. For the system shown in Figure1, the initial conditions...
Design the cooling system used to manufacture the leg of a table, shown in Fig.2. You...
Design the cooling system used to manufacture the leg of a table, shown in Fig.2. You will have to determine the required diameter D so that the leg can withstand 100 kg of axial loading. Once the diameter has been determined, you will need to determine the Revolutions per Minute (RPMs) of the fan needed to cool down the leg to 90-C in less than 2 minutes before it starts deforming after being 3D printed. Consider the leg of the...
Using MATLAB PLease For scaffolding system shown, assume P1-50 lbf and P2-20 lbf. Perform force and momentum equilibrium balances for each bar to find 4 equations. Then show how to set them up as one...
Using MATLAB PLease
For scaffolding system shown, assume P1-50 lbf and P2-20 lbf. Perform force and momentum equilibrium balances for each bar to find 4 equations. Then show how to set them up as one system of linear equations ( Ax-b)and solve in MATLAB to determine tension forces T.Ty.TC and To. Hint: write ΣFy-Oand ΣΜ-Ofor each bar to find the equations. Bar 1
For scaffolding system shown, assume P1-50 lbf and P2-20 lbf. Perform force and momentum equilibrium balances for...
A remote generator transmits energy to a major load/generation via a system shown in the drawing....
A remote generator transmits energy to a major load/generation via a system shown in the drawing. Assume the generators voltage behind transient reactance to be 1.1pu, the infinite bus voltage to be 1.0 pu and the power transfer to be 0.3 pu during the steady state condition of the network. The line reactance is j0. 5 pu per line and the transient reactance of the generator isj0. 2 pu. The normalised constant of the generator H- 3KWS7KVA A 3 phase...
Q1. Find the total shear Strain energy for the I-Beam shown below when it acts as...
Q1. Find the total shear Strain energy for the I-Beam shown below when it acts as a 1.25m long cantilever beam with an end load of 30kN. Hence determine the deflection due to Shear (G-82MN/m2) 200 dh 25 h dh 300 410 Figure 1: I-Beam profile, dimensions in mm r' (Volume) Ξ_G_ Transverse Shear τ--Aỹ, For beam deflection, U-o5Fδ Hints:
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
mmHg 10-26. The displacement y(t) of a spring-mass system shown in Fig. P10.26 is given by 0.25 y(t)+ 10 y()0 (a) Find the transient solution, yrun() (b) Find the steady-state solution of the disp...
mmHg 10-26. The displacement y(t) of a spring-mass system shown in Fig. P10.26 is given by 0.25 y(t)+ 10 y()0 (a) Find the transient solution, yrun() (b) Find the steady-state solution of the displacement ys (c) Determine the total displacement y(t) if the initial displacement y(0) 0.2 m and the initial veloc- ity y(0)-0 m/s (d) Sketch the total displacement y(t). k 10 N/m 0.25 kg y0)
mmHg 10-26. The displacement y(t) of a spring-mass system shown in Fig. P10.26...
Please help! I need help finding and solving equations of equilibrium to find the max tension in ...
please help! I need help finding and solving equations of
equilibrium to find the max tension in the cables and the angle
that results in the maximum tension, I also have pictures below of
the work I have so far all I really need is equations for the 4
cable part and that's it but I put the whole assignment so you
could see thanks!
Tower Support System Challenge Challenge Scenario: Due to weather conditions, a major communication tower n...
please answer all prelab questions, 1-4. This is the prelab manual, just in case you need...
please answer all prelab questions, 1-4.
This is the prelab manual, just in case you need background
information to answer the questions. The prelab questions are in
the 3rd photo.
this where we put in the answers, just to give you an
idea.
Lab Manual Lab 9: Simple Harmonic Oscillation Before the lab, read the theory in Sections 1-3 and answer questions on Pre-lab Submit your Pre-lab at the beginning of the lab. During the lab, read Section 4 and...
1. Find the critical load Pcr using the bifurcation
approach.
2. Investigate the stability behavior of the
asymmetric spring-bar model.
Please provide me with detailed solutions....
1. Find the critical load Per using the bifurcation approach. 0.5L 0.51 0.5 k,t s2 2. Investigate the stability behavior of the asymmetric spring-bar model ks 45"
1. Find the critical load Per using the bifurcation approach. 0.5L 0.51 0.5 k,t s2 2. Investigate the stability behavior of the asymmetric spring-bar model ks 45"
Q1. For the system shown in Figure1, the initial conditions are (-0)-0, 0) 2rad/s (i) Find its total kinetic energy and total potential energy ii) Calculate how long the system can complete one full cycle of the movement; (iv) Determine the rotational displacement θ(1) under the given initial conditions. 30 cm 0.3 kg m2 0 cm cable 6(0)-2 rad/s 5 kg 40 kg cable 3.2 x 101N/Tm im Figure 1
Q1. For the system shown in Figure1, the initial conditions...
Design the cooling system used to manufacture the leg of a table, shown in Fig.2. You will have to determine the required diameter D so that the leg can withstand 100 kg of axial loading. Once the diameter has been determined, you will need to determine the Revolutions per Minute (RPMs) of the fan needed to cool down the leg to 90-C in less than 2 minutes before it starts deforming after being 3D printed. Consider the leg of the...
Using MATLAB PLease
For scaffolding system shown, assume P1-50 lbf and P2-20 lbf. Perform force and momentum equilibrium balances for each bar to find 4 equations. Then show how to set them up as one system of linear equations ( Ax-b)and solve in MATLAB to determine tension forces T.Ty.TC and To. Hint: write ΣFy-Oand ΣΜ-Ofor each bar to find the equations. Bar 1
For scaffolding system shown, assume P1-50 lbf and P2-20 lbf. Perform force and momentum equilibrium balances for...
A remote generator transmits energy to a major load/generation via a system shown in the drawing. Assume the generators voltage behind transient reactance to be 1.1pu, the infinite bus voltage to be 1.0 pu and the power transfer to be 0.3 pu during the steady state condition of the network. The line reactance is j0. 5 pu per line and the transient reactance of the generator isj0. 2 pu. The normalised constant of the generator H- 3KWS7KVA A 3 phase...
Q1. Find the total shear Strain energy for the I-Beam shown below when it acts as a 1.25m long cantilever beam with an end load of 30kN. Hence determine the deflection due to Shear (G-82MN/m2) 200 dh 25 h dh 300 410 Figure 1: I-Beam profile, dimensions in mm r' (Volume) Ξ_G_ Transverse Shear τ--Aỹ, For beam deflection, U-o5Fδ Hints:
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
mmHg 10-26. The displacement y(t) of a spring-mass system shown in Fig. P10.26 is given by 0.25 y(t)+ 10 y()0 (a) Find the transient solution, yrun() (b) Find the steady-state solution of the displacement ys (c) Determine the total displacement y(t) if the initial displacement y(0) 0.2 m and the initial veloc- ity y(0)-0 m/s (d) Sketch the total displacement y(t). k 10 N/m 0.25 kg y0)
mmHg 10-26. The displacement y(t) of a spring-mass system shown in Fig. P10.26...
please help! I need help finding and solving equations of
equilibrium to find the max tension in the cables and the angle
that results in the maximum tension, I also have pictures below of
the work I have so far all I really need is equations for the 4
cable part and that's it but I put the whole assignment so you
could see thanks!
Tower Support System Challenge Challenge Scenario: Due to weather conditions, a major communication tower n...
please answer all prelab questions, 1-4.
This is the prelab manual, just in case you need background
information to answer the questions. The prelab questions are in
the 3rd photo.
this where we put in the answers, just to give you an
idea.
Lab Manual Lab 9: Simple Harmonic Oscillation Before the lab, read the theory in Sections 1-3 and answer questions on Pre-lab Submit your Pre-lab at the beginning of the lab. During the lab, read Section 4 and...
