Consider the following root locus form
Consider the following root locus form

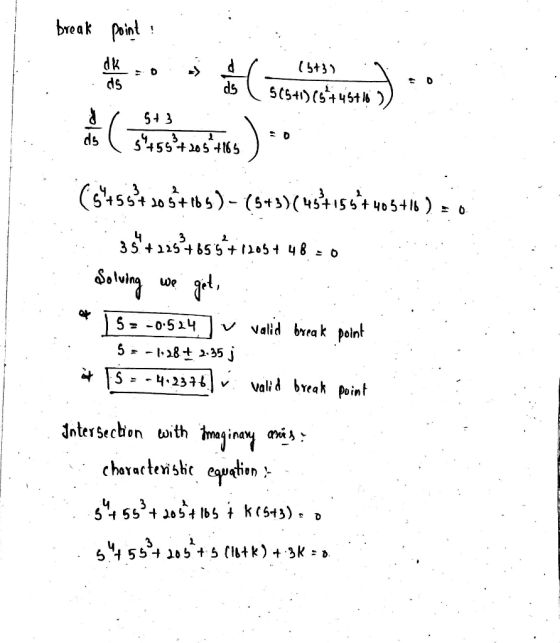

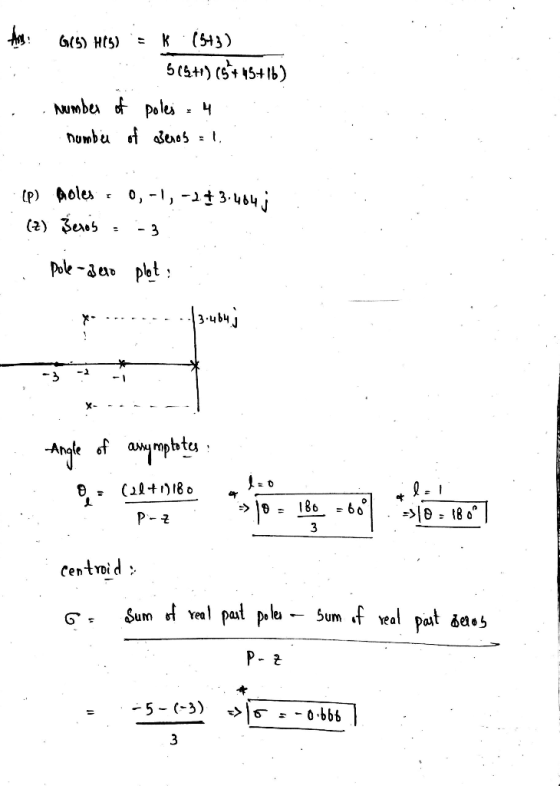

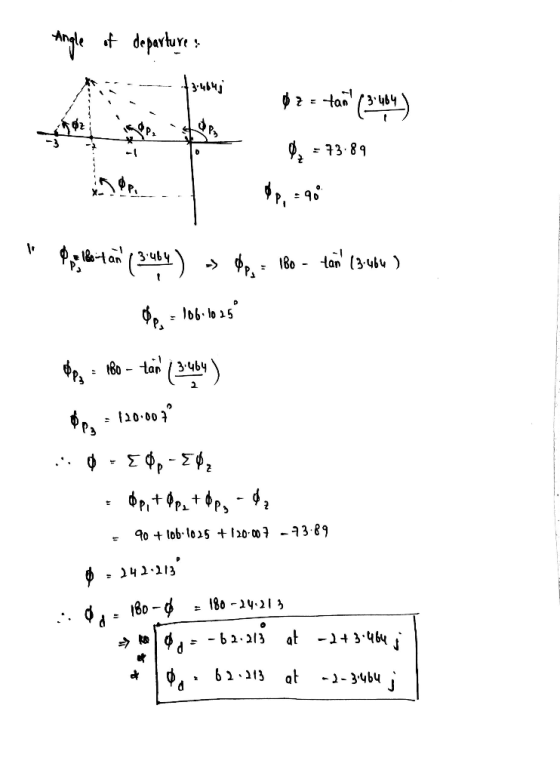

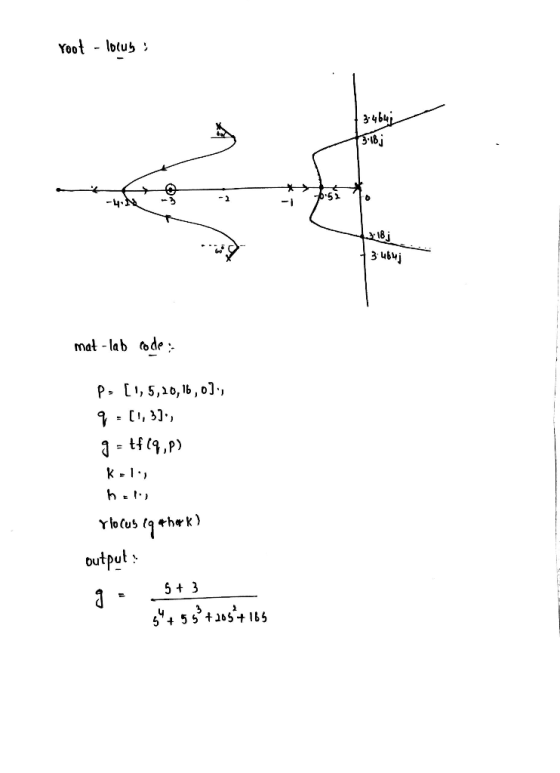

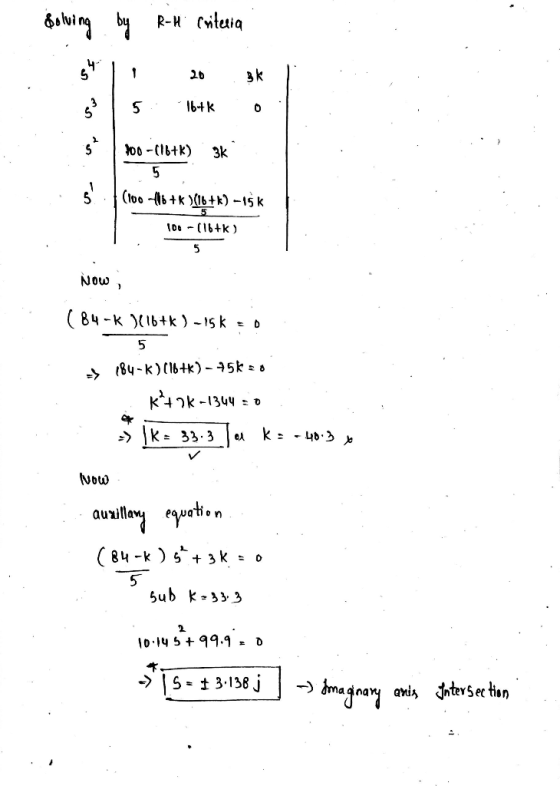

(a) With hand calculations, sketch the root locus plot. Please calculate the asymptotes, centrode, break in/break-away point(s), and locus departure angles and identify where on the real axis the locus exists Investigate whether the locus intersects the imaginary axis, and if it does, calculate the K value and the location on the imaginary axis where this inersection occurs.

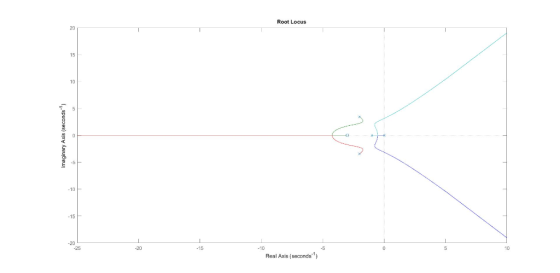

(b) Obtain the root locus in Matlab and show how your calculations in (a) are validated.
