CONTROL OF PLANER MACHINE Work piece Planing tool Table Rack 1LS 2LS Pinion Motor Schematic diagr...

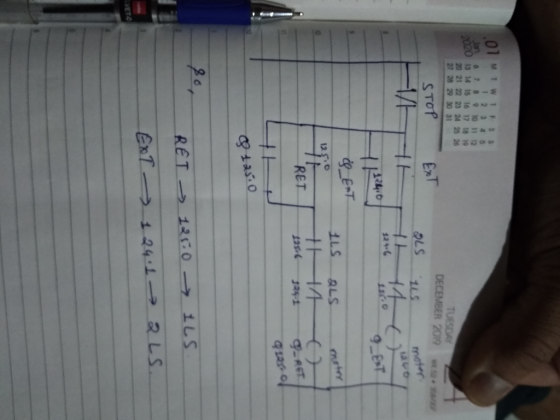

CONTROL OF PLANER MACHINE Work piece Planing tool Table Rack 1LS 2LS Pinion Motor Schematic diagram for a Planer machine Various control requirements for the machine are as follows: The motor is to be started manually by pressing START-push button. Once the motor starts it is reversed automatically at the end of right or left stroke by limit switches 2LS and 1LS 2 Selection of initial direction of travel should be possible through right and left 3 There should be a delay in starting the motor in left to right stroke so as to allow the 4 The machine should stop on pressing of STOP-push button or on over-load tripping 5Interlocking of coolant pump motor (running) should be provided as a pre-condition traverse push button, PBn and PBL. tool to get the feed for a fresh cut on the job of motor. for starting of the machine. Draw The System Ladder Circuit
CONTROL OF PLANER MACHINE Work piece Planing tool Table Rack 1LS 2LS Pinion Motor Schematic diagram for a Planer machine Various control requirements for the machine are as follows: The motor is to be started manually by pressing START-push button. Once the motor starts it is reversed automatically at the end of right or left stroke by limit switches 2LS and 1LS 2 Selection of initial direction of travel should be possible through right and left 3 There should be a delay in starting the motor in left to right stroke so as to allow the 4 The machine should stop on pressing of STOP-push button or on over-load tripping 5Interlocking of coolant pump motor (running) should be provided as a pre-condition traverse push button, PBn and PBL. tool to get the feed for a fresh cut on the job of motor. for starting of the machine. Draw The System Ladder Circuit
