Question

A power plant works with an ideal steam regenerative cycle. It consists of the following:

a. A vapor turbine that ideally expands steam from 3.0 MPa and 400 oC to 10 kPa, after which the fluid goes to the condenser.

b. Two extraction points in the turbine for the regenerative system, which are used as follows:

i. First, steam is extracted at 0.8 MPa for a close FWH.

ii. Second, steam is extracted at 100 kPa for an open FWH.

iii. Condensate from the close FWH is drained through a trap to the open FWH and the water leaving the trap is saturated liquid.

c. Two pumps, one is used to bring the water leaving the condenser up to 100 kPa for an open FWH, and the other one brings the feedwater up to 3.0 MPa.

d. The flows from the extraction points in the turbine are controlled in such a way that the feedwater leaves the condenser, the open FWH, and the close FWH as saturated liquid.

Calculate the thermal efficiency of the cycle and the specific net work

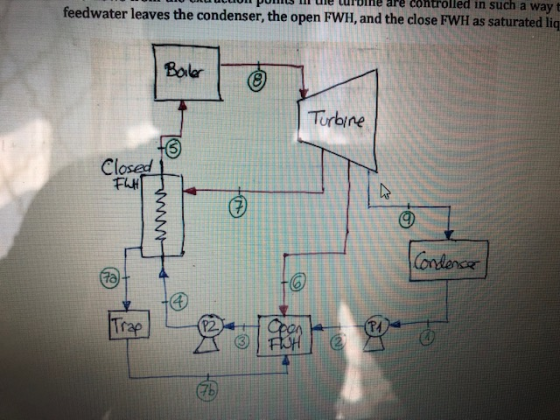

puili ll ule turblHe are controlled in such a way t feedwater leaves the condenser, the open FWH, and the close FWH as saturated liq Bolar Turbine 5 Closed F내 ondence Trae

Answer 1

Please find the step by step solution below in attached images,

This i s the 8andand ordrhinc-cuch-with-open- calculation er pump fa ctor 2119261 2 47333

Cor turbin vepaur fBactter in Lo seation 328 o. BL-2891.6+(t-01388) 28g l G-2192 5) Pr has the pu Dw an a.D

2. 445-699.3ー(1-o,1983)0.2938-245 1 3
thanks
