#2: For the Mohr Circle diagrams shown below, Diameter is 20 MPa and location of A is defined (ou...

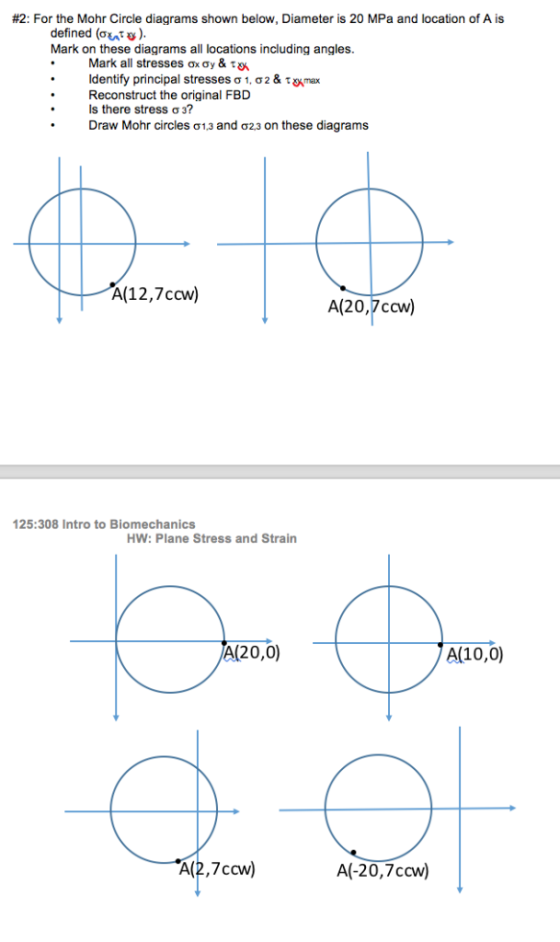

#2: For the Mohr Circle diagrams shown below, Diameter is 20 MPa and location of A is defined (si...
#2: For the Mohr Circle diagrams shown
below, Diameter is 20 MPa and location of A is defined
(sigmax ,tau xy ).
Mark on these diagrams all locations
including angles.
Mark all stresses sigmax sigmay & tau
xy
Identify principal stresses sigma1,
sigma2 & tau xy max
Reconstruct the original FBD
Is there stress sigma 3?
Draw Mohr circles sigma1,3 and sigma2,3
on these diagrams
A(12,7ccw) A(20,7ccw)
A(12,7ccw) A(20,7ccw)
Given the stress element below: 1. Draw Mohr Circle for the stress element shown below. Use...
Given the stress element below: 1. Draw Mohr Circle for the stress element shown below. Use proper scale and draw neatly. 2. Show and label the principal and max shear stress on the circle. 3. On the Mohr circle indicate the angles form the X-axis of Mohr circle to the o axis and Tmax axis. 4. Draw stress elements for initial, principal, maximum shear in their proper orientation. Mark all points on Mohr Circle and corresponding points on stress elements...
Problem 6: Given the stress element below: 1. Draw Mohr Circle for the stress element shown...
Problem 6: Given the stress element below: 1. Draw Mohr Circle for the stress element shown below. Use proper scale and draw neatly. 2. Show and label the principal and max shear stress on the circle. 3. On the Mohr circle indicate the angles form the X-axis of Mohr circle to the oi axis and Tmax axis. 4. Draw stress elements for initial, principal, maximum shear in their proper orientation. Mark all points on Mohr Circle and corresponding points on...
Problem 6: Given the stress element below: 1. Draw Mohr Circle for the stress element shown...
Problem 6: Given the stress element below: 1. Draw Mohr Circle for the stress element shown below. Use proper scale and draw neatly. 2. Show and label the principal and max shear stress on the circle. 3. On the Mohr circle indicate the angles form the X-axis of Mohr circle to the oi axis and Tmax axis. 4. Draw stress elements for initial, principal, maximum shear in their proper orientation. Mark all points on Mohr Circle and corresponding points on...

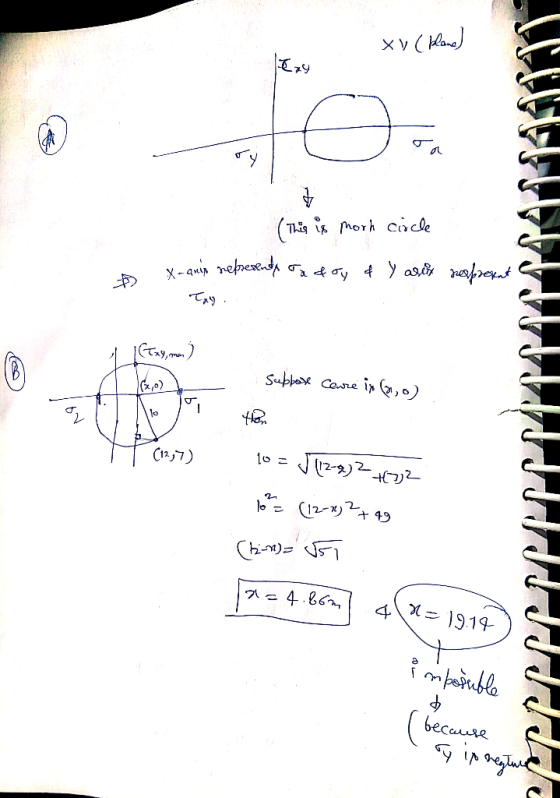

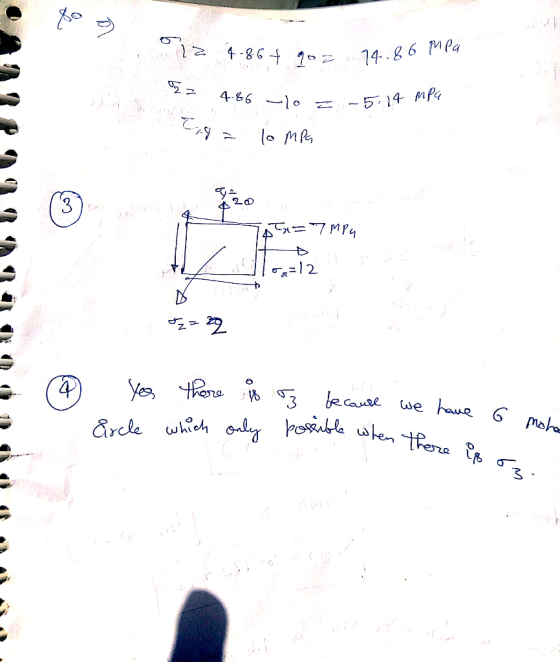

#2: For the Mohr Circle diagrams shown
below, Diameter is 20 MPa and location of A is defined
(sigmax ,tau xy ).
Mark on these diagrams all locations
including angles.
Mark all stresses sigmax sigmay & tau
xy
Identify principal stresses sigma1,
sigma2 & tau xy max
Reconstruct the original FBD
Is there stress sigma 3?
Draw Mohr circles sigma1,3 and sigma2,3
on these diagrams
A(12,7ccw) A(20,7ccw)
A(12,7ccw) A(20,7ccw)
Given the stress element below: 1. Draw Mohr Circle for the stress element shown below. Use proper scale and draw neatly. 2. Show and label the principal and max shear stress on the circle. 3. On the Mohr circle indicate the angles form the X-axis of Mohr circle to the o axis and Tmax axis. 4. Draw stress elements for initial, principal, maximum shear in their proper orientation. Mark all points on Mohr Circle and corresponding points on stress elements...
Problem 6: Given the stress element below: 1. Draw Mohr Circle for the stress element shown below. Use proper scale and draw neatly. 2. Show and label the principal and max shear stress on the circle. 3. On the Mohr circle indicate the angles form the X-axis of Mohr circle to the oi axis and Tmax axis. 4. Draw stress elements for initial, principal, maximum shear in their proper orientation. Mark all points on Mohr Circle and corresponding points on...
Problem 6: Given the stress element below: 1. Draw Mohr Circle for the stress element shown below. Use proper scale and draw neatly. 2. Show and label the principal and max shear stress on the circle. 3. On the Mohr circle indicate the angles form the X-axis of Mohr circle to the oi axis and Tmax axis. 4. Draw stress elements for initial, principal, maximum shear in their proper orientation. Mark all points on Mohr Circle and corresponding points on...
