Need Help!! Physic Part 7 only.
▼ Part 1 Your answer is correct. (a) On a copy of the diagram, show the approximate distribution of charge (Do this on paper. Your instructor may ask you to turn in this work.) (b) On a copy of the diagram, draw the electric field inside the wire at the 3 locations marked x,. (Do this on paper. Your instructor may ask you to turn in this work.) (c) What is the magnitude of the electric field at location B? 27.9 V/m the tolerance is +/-2%

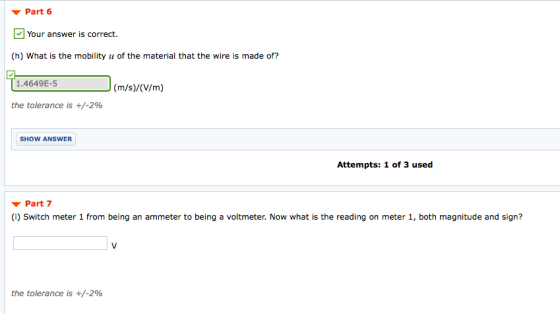

▼ Part 6 Your answer is correct. (h) What is the mobility u of the material that the wire is made of? 1.4649E-5 (m/s)/(Wm) the tolerance is +/-2% SHOW ANSWER Attempts: 1 of 3 used Part 7 (i) Switch meter 1 from being an ammeter to being a voltmeter. Now what is the reading on meter 1, both magnitude and sign? the tolerance is +/-2%
Homework Answers
As the doing so connections will be reversed so voltmeter reading will be -1.379 V
Add Answer to:
Problem 19.72 (Multistep) A bent bar A 43 cm long high-resistance wire with rectangular cross sec...
A thick copper wire 2.3 m long is connected in series to a thin high-resistance Nichrome...
A thick copper wire 2.3 m long is connected in series to a thin high-resistance Nichrome wire. In the steady state, the conventional current in the thick copper wire is 4 amperes. In this copper wire there are 8 � 1028 mobile electrons per cubic meter and the electron mobility is 4.5 � 10?3 (m/s)/(V/m). The cross-sectional area of the copper wire is 6 � 10?7 m2. The thin high-resistance Nichrome wire (which is connected in series to the thick...
Problem 5: A 5 cm long wire is in a uniform magnetic field of 4T, so...
Problem 5: A 5 cm long wire is in a uniform magnetic field of 4T, so that current in the wire is perpendicular to the magnetic field. The wire is connected to a 10 ohm resistor in series, so that the resistance of the wire is negligible. The wire and resister are then connected in series to a charged 1500mF capacitor at 50 kV. A: What is the current through the wire as function of time, with t-0 being when...
A circuit is made of two 1.4 volt batteries and three light bulbs as shown in...
A circuit is made of two 1.4 volt batteries and three light bulbs as shown in the figure. When the switch is closed and the buibs are glowing, bulb I hasa resistance of 11 ohms, bulb 2 has a resistance of 44 ohms, bulb 3 has a resistance of 26 ohms, and the copper connecting wires have negligible resistance. You can also neglect the internal resistance of the batteries (a) With the swtch open, indicate the approximate surface charge on...
Problem 22.17 (Multistep) A coil of wire is connected to a power supply, and a current...
Problem 22.17 (Multistep)
A coil of wire is connected to a power supply, and a current
runs in the coil. A single loop of wire is located near the coil,
with its axis on the same line as the axis of the coil. The radius
of the loop is 3 cm.
At time t1 the magnetic field at the center of the loop, due to the
coil, is 0.6 T, in the direction shown in the diagram; the current
in...
Three bulbs A circuit is made of two 1.7 volt batteries and three light bulbs as...
Three bulbs A circuit is made of two 1.7 volt batteries and three light bulbs as shown in the figure. When the switch is closed and the bulbs are glowing, bulb 1 has a resistance of 7 ohms, bulb 2 ha a resistance of 43 ohms, bulb 3 has a resistance of 32 ohms, and the copper connecting wires have negligible resistance. You can also neglect the internal resistance of the batteries Bulb 2 Bulb 1 Bulb 3 (a) With...
Please write the python functions Problem: Electric wire (Figure is a cylindrical conductor covered by an...
Please write the python functions
Problem: Electric wire (Figure is a cylindrical conductor covered by an insulating material. Figure 2 shows the structure ofa single conductor. The resistance of a piece ofwire is given by the formula: A d where ρ is the resistivity of the conductor, and I (in meter), A, and d (in meter) are the length, cross-sectional area, and diameter of the wire. The wire diameter, d, is commonly specified by the American Wire Gauge (AWG). Which...
Notes for lab dc02-Resistors and the Color Code will skip are Part 2 e, g: Part 4; Exercises 2, 4,5,6 an...
Notes for lab dc02-Resistors and the Color Code will skip are Part 2 e, g: Part 4; Exercises 2, 4,5,6 and 3. It is important to answer the exercises correctly in each labl you should include the appropriate prefix for the unit in the Numerical Value We will not be Volt using the Volt-Ohm meter (VOM) for this lab, so skip the parts that ask for VOM measurements. The parts we You do need to complete Exercises1 Note that in...
Experiment 7 - The Resistor Capacitor Circuit Learning Objectives: Understand the short and long time behavior...
Experiment 7 - The Resistor Capacitor Circuit Learning Objectives: Understand the short and long time behavior of circuits containing capacitors. Understand the and the mathematical relationshin between the current through the circuit as a function time, resistance, capacitance, and potential difference 1. Understanding the models for the behavior of a capacitor in a circuit A capacitor is a device that stores energy in a circuit as potential energy in an electric field. In the simple circuit drawn on the night,...
We calculated the capacticance of our capacitior in farads and we have to compare it to...
We
calculated the capacticance of our capacitior in farads and we have
to compare it to the listed capacitance of the capacitor as shown
in the picture. When we do percent difference we get 200%... where
did I mess up? That can't be right. The resistance of our resistor
is 12970 ohms. Please explain this like you were talking to a
child.
Amicon 26936KO (M) 2000 F25V 81-POLAR NPS wire leads of the resistor to the table the body of...
Problem 5: A 5 cm long wire is in a uniform magnetic field of 4T, so that current in the wire is perpendicular to the magnetic field. The wire is connected to a 10 ohm resistor in series, so that the resistance of the wire is negligible. The wire and resister are then connected in series to a charged 1500mF capacitor at 50 kV. A: What is the current through the wire as function of time, with t-0 being when...
A circuit is made of two 1.4 volt batteries and three light bulbs as shown in the figure. When the switch is closed and the buibs are glowing, bulb I hasa resistance of 11 ohms, bulb 2 has a resistance of 44 ohms, bulb 3 has a resistance of 26 ohms, and the copper connecting wires have negligible resistance. You can also neglect the internal resistance of the batteries (a) With the swtch open, indicate the approximate surface charge on...
Problem 22.17 (Multistep)
A coil of wire is connected to a power supply, and a current
runs in the coil. A single loop of wire is located near the coil,
with its axis on the same line as the axis of the coil. The radius
of the loop is 3 cm.
At time t1 the magnetic field at the center of the loop, due to the
coil, is 0.6 T, in the direction shown in the diagram; the current
in...
Three bulbs A circuit is made of two 1.7 volt batteries and three light bulbs as shown in the figure. When the switch is closed and the bulbs are glowing, bulb 1 has a resistance of 7 ohms, bulb 2 ha a resistance of 43 ohms, bulb 3 has a resistance of 32 ohms, and the copper connecting wires have negligible resistance. You can also neglect the internal resistance of the batteries Bulb 2 Bulb 1 Bulb 3 (a) With...
Please write the python functions
Problem: Electric wire (Figure is a cylindrical conductor covered by an insulating material. Figure 2 shows the structure ofa single conductor. The resistance of a piece ofwire is given by the formula: A d where ρ is the resistivity of the conductor, and I (in meter), A, and d (in meter) are the length, cross-sectional area, and diameter of the wire. The wire diameter, d, is commonly specified by the American Wire Gauge (AWG). Which...
Notes for lab dc02-Resistors and the Color Code will skip are Part 2 e, g: Part 4; Exercises 2, 4,5,6 and 3. It is important to answer the exercises correctly in each labl you should include the appropriate prefix for the unit in the Numerical Value We will not be Volt using the Volt-Ohm meter (VOM) for this lab, so skip the parts that ask for VOM measurements. The parts we You do need to complete Exercises1 Note that in...
Experiment 7 - The Resistor Capacitor Circuit Learning Objectives: Understand the short and long time behavior of circuits containing capacitors. Understand the and the mathematical relationshin between the current through the circuit as a function time, resistance, capacitance, and potential difference 1. Understanding the models for the behavior of a capacitor in a circuit A capacitor is a device that stores energy in a circuit as potential energy in an electric field. In the simple circuit drawn on the night,...
We
calculated the capacticance of our capacitior in farads and we have
to compare it to the listed capacitance of the capacitor as shown
in the picture. When we do percent difference we get 200%... where
did I mess up? That can't be right. The resistance of our resistor
is 12970 ohms. Please explain this like you were talking to a
child.
Amicon 26936KO (M) 2000 F25V 81-POLAR NPS wire leads of the resistor to the table the body of...
