1. Consider the usual unity-feedback closed-loop control system with a proportional-gain controll...
1. Consider the usual unity-feedback closed-loop control system with a proportional-gain controller: 19 r - PGS-Try...

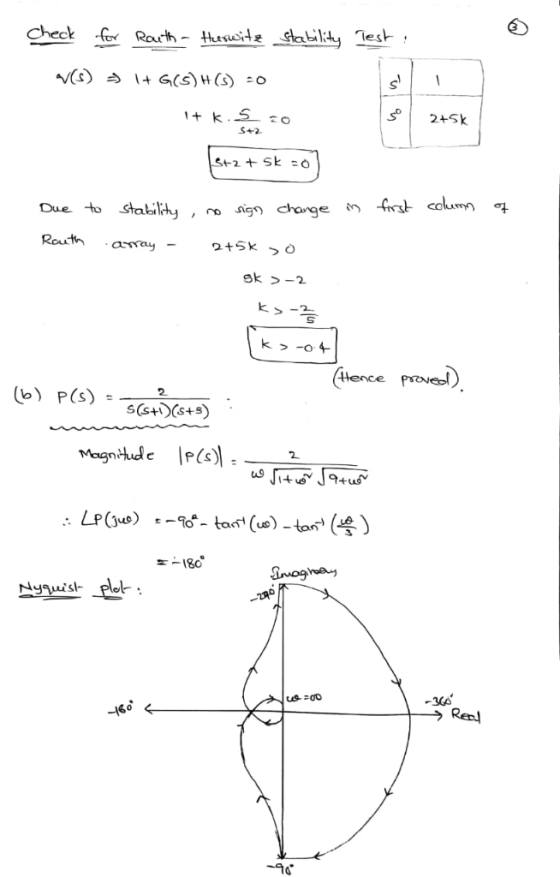

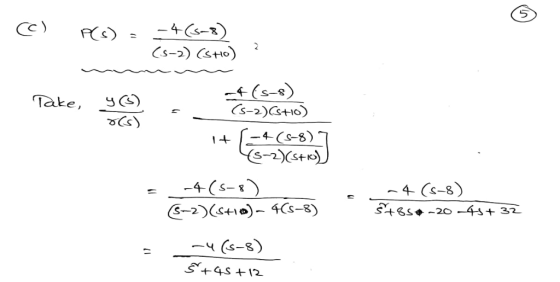

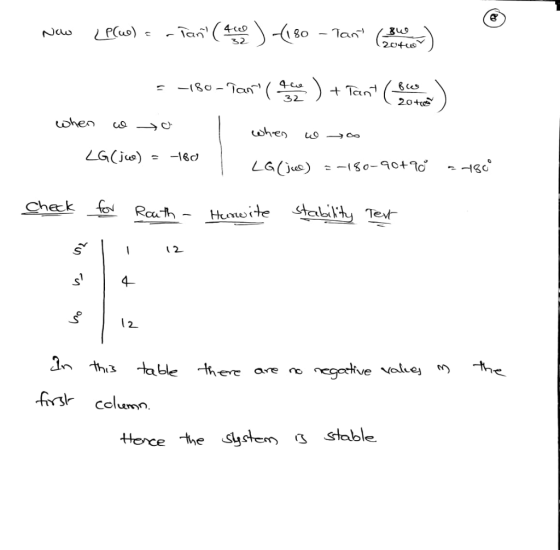

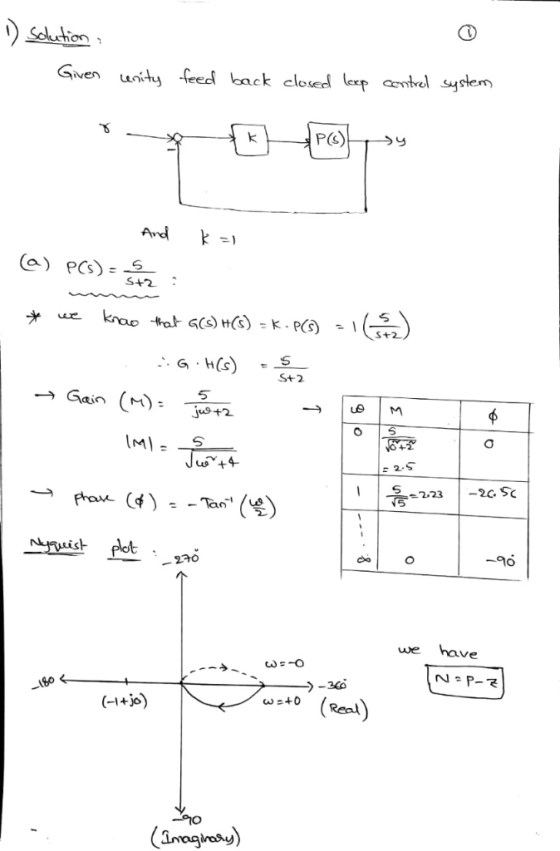

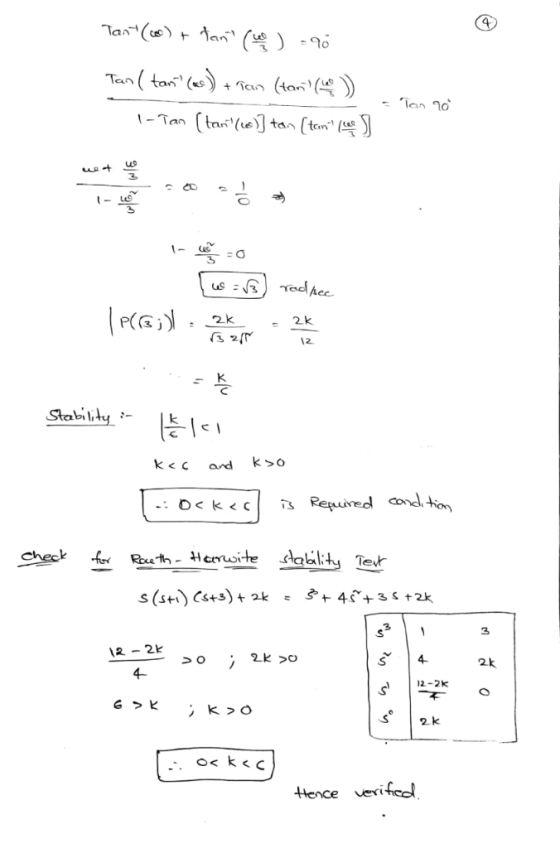

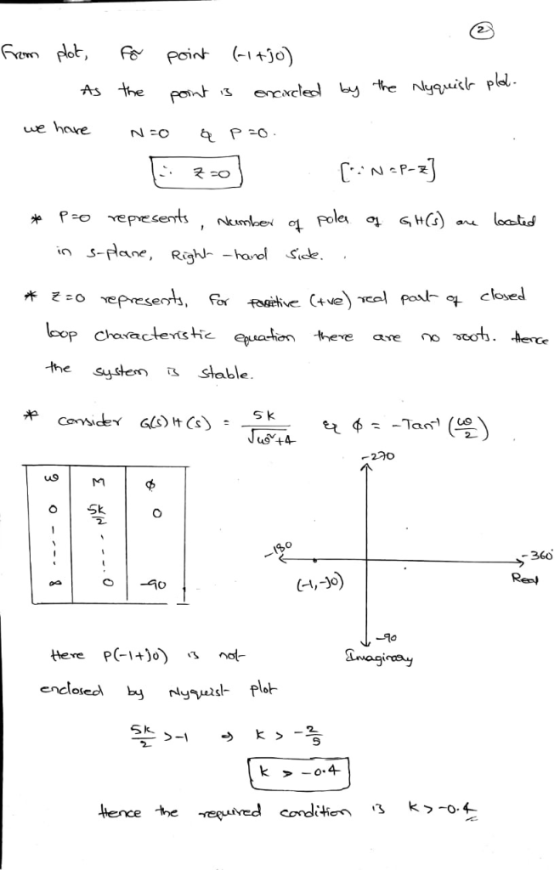

1. Consider the usual unity-feedback closed-loop control system with a proportional-gain controller: 19 r - PGS-Try P(s) Draw (by hand) and fully label a Nyquist plot with K = 1 for each of the plants listed below. Show all your work. Use the Nyquist plot to determine all values of K for which the closed-loop system is stable. Check your answers using the Routh-Hurwitz Stability Test. [15 marks] (a) P(s) = (b) P(s) = s(s+13 (6+2) (©) P(s) = 32(6+1)
A closed-loop unity feedback system has the loop gain G(z) given below. (a) Show that the...
A closed-loop unity feedback system has the loop gain G(z) given below. (a) Show that the system is unstable using the Routh-Hurwitz criterion. (b) Show that the system is unstable by examining its Nyquist plot. (c) Use MATLAB to determine the gain margin of the system. (d) Now decrease the gain of the system by approximately 1 dB by setting G(z) 3. equal to Gn(z) as given below and show that the resulting system is stable by repeating steps (a)...
PROBLEM 2 Suppose that a system is shown in Figure 2. Based on for loop, write a piece of MATLAB code to calculate the closed loop poles for 0sKs5 and plot the outputs where the poles are represented...
PROBLEM 2 Suppose that a system is shown in Figure 2. Based on for loop, write a piece of MATLAB code to calculate the closed loop poles for 0sKs5 and plot the outputs where the poles are represented by "W" letter. Find the interval of K parameter for stability using Routh-Hurwitz method. Calculate the poles of the closed loop transfer function where K attains the minimum value such that the system is stable. R(s) 52(K - 3)s + K Figure...
Please solve it with step by step MATLAB code, thank you! Suppose that a system is shown in Figure 2. Based on for loop, write a piece of MATLAB code to calculate the closed loop poles for 03K35 and...
Please solve it with step by step MATLAB code, thank you!
Suppose that a system is shown in Figure 2. Based on for loop, write a piece of MATLAB code to calculate the closed loop poles for 03K35 and plot the outputs where the poles are represented by "W" letter. Find the interval of K parameter for stability using Routh-Hurwitz method. Calculate the poles of the closed loop transfer function where K attains the minimum value such that the system...
4) A unity feedback control system shown in Figure 2 has the following controller and process with the transfer functions: m(60100c Prs(s +10(s+7.5) a) Obtain the open- and closed-loop transfer f...
4) A unity feedback control system shown in Figure 2 has the following controller and process with the transfer functions: m(60100c Prs(s +10(s+7.5) a) Obtain the open- and closed-loop transfer functions of the system. b) Obtain the stability conditions using the Routh-Hurwitz criterion. e) Setting by trial-and-error some values for Kp, Ki, and Ko, obtain the time response for minimum overshoot and minimum settling time by Matlab/Simulink. Y(s) R(s) E(s) Fig. 2: Unity feedback control system
4) A unity feedback...
Discuss the mathematical requirements for stability in a linear feedback system and state the Rou...
Discuss the mathematical requirements for stability in a linear feedback system and state the Routh Stability criterion. (6 marks) (a) The open loop transfer function of a control system with unity feedback is given by: (b) 35 s(1 + Ts) (1 +0.25s) G(s) - Use Routh's criterion to determine the value of T for which the closed loop system is marginally stable. (8 marks) i Use the Nyquist criterion to confirm the values obtained in (i). (8 marks) ii Sketch...
b) The Nyquist plot of a unity feedback control system is as shown in Figure Q5(b)....
b) The Nyquist plot of a unity feedback control system is as shown in Figure Q5(b). Nyqulst Diagram x 10 1.5 1- System: N Real: -9.08e-005 0.5- Imag: -5.62e-006 Frequency (rad/sec): -104 -0.5 -15 -1.5 0.5 0.5 1.5 1 2.5 3.5 Real Axis x 10 Figure Q5(b) K If the transfer function of the system is given as G(s) (s+10)(s+50)(s+150) determine the following: The closed loop stability of the system using Nyquist Stability Criterion. i) ii) Gain margin and phase...
A unity feedback control system has the open loop TF as
A unity feedback control system has the open loop TF as: \(G(s)=\frac{K(s+a+1)(s+b)}{s(s+a)(s+a+2)}\)a) Find analytical expressions for the magnitude and phase response for \(\mathrm{G}(\mathrm{s}) .\left[K=K_{1}\right]\)b) Make a plot of the log-magnitude and the phase, using log-frequency in rad/s as the ordinate. \(\left[K=K_{1}\right]\)c) Sketch the Bode asymptotic magnitude and asymptotic phase plots. \(\left[K=K_{1}\right]\)d) Compare the results from \((a),(b)\), and \((c) .\left[K=K_{1}\right]\)e) Using the Nyquist criterion, find out if system is stable. Show your steps. \(\left[K=K_{1}\right]\)f) Using the Nyquist criterion, find the range...
(i)Apply the Nyquist criterion to find the gain Kp at which the closed loop system becomes...
(i)Apply the Nyquist criterion to find the gain Kp at which the
closed loop system becomes marginally stable and the practical
range of safe operating gains for the proportional controller.
(ii) Find the gain margin of the system when the operating gain
of the controller Kp = 2. Use Fig. 2 to read the required values
off the plot.
Proportional Controller Process R(S) Y() Figure 1: Unity Feedback Systems Consider again the system in Fig. 1. The plant transfer function...
A unity feedback closed loop control system is displayed in Figure 4. (a) Assume that the control...
Please solve as a MATLAB code.
A unity feedback closed loop control system is displayed in Figure 4. (a) Assume that the controller is given by G (s) 2. Based on the lsim function of MATLAB, calculate and obtain the graph of the response for (t) at. Here a 0.5°/s. Find the height error after 10 seconds, (b) In order to reduce the steady-state error, substitute G (s) with the following controller This is a Proportional-Integral (PI) controller. Repeat part...
1. Consider the usual unity-feedback closed-loop control system with a proportional-gain controller: 19 r - PGS-Try P(s) Draw (by hand) and fully label a Nyquist plot with K = 1 for each of the plants listed below. Show all your work. Use the Nyquist plot to determine all values of K for which the closed-loop system is stable. Check your answers using the Routh-Hurwitz Stability Test. [15 marks] (a) P(s) = (b) P(s) = s(s+13 (6+2) (©) P(s) = 32(6+1)
A closed-loop unity feedback system has the loop gain G(z) given below. (a) Show that the system is unstable using the Routh-Hurwitz criterion. (b) Show that the system is unstable by examining its Nyquist plot. (c) Use MATLAB to determine the gain margin of the system. (d) Now decrease the gain of the system by approximately 1 dB by setting G(z) 3. equal to Gn(z) as given below and show that the resulting system is stable by repeating steps (a)...
PROBLEM 2 Suppose that a system is shown in Figure 2. Based on for loop, write a piece of MATLAB code to calculate the closed loop poles for 0sKs5 and plot the outputs where the poles are represented by "W" letter. Find the interval of K parameter for stability using Routh-Hurwitz method. Calculate the poles of the closed loop transfer function where K attains the minimum value such that the system is stable. R(s) 52(K - 3)s + K Figure...
Please solve it with step by step MATLAB code, thank you!
Suppose that a system is shown in Figure 2. Based on for loop, write a piece of MATLAB code to calculate the closed loop poles for 03K35 and plot the outputs where the poles are represented by "W" letter. Find the interval of K parameter for stability using Routh-Hurwitz method. Calculate the poles of the closed loop transfer function where K attains the minimum value such that the system...
4) A unity feedback control system shown in Figure 2 has the following controller and process with the transfer functions: m(60100c Prs(s +10(s+7.5) a) Obtain the open- and closed-loop transfer functions of the system. b) Obtain the stability conditions using the Routh-Hurwitz criterion. e) Setting by trial-and-error some values for Kp, Ki, and Ko, obtain the time response for minimum overshoot and minimum settling time by Matlab/Simulink. Y(s) R(s) E(s) Fig. 2: Unity feedback control system
4) A unity feedback...
Discuss the mathematical requirements for stability in a linear feedback system and state the Routh Stability criterion. (6 marks) (a) The open loop transfer function of a control system with unity feedback is given by: (b) 35 s(1 + Ts) (1 +0.25s) G(s) - Use Routh's criterion to determine the value of T for which the closed loop system is marginally stable. (8 marks) i Use the Nyquist criterion to confirm the values obtained in (i). (8 marks) ii Sketch...
b) The Nyquist plot of a unity feedback control system is as shown in Figure Q5(b). Nyqulst Diagram x 10 1.5 1- System: N Real: -9.08e-005 0.5- Imag: -5.62e-006 Frequency (rad/sec): -104 -0.5 -15 -1.5 0.5 0.5 1.5 1 2.5 3.5 Real Axis x 10 Figure Q5(b) K If the transfer function of the system is given as G(s) (s+10)(s+50)(s+150) determine the following: The closed loop stability of the system using Nyquist Stability Criterion. i) ii) Gain margin and phase...
(i)Apply the Nyquist criterion to find the gain Kp at which the
closed loop system becomes marginally stable and the practical
range of safe operating gains for the proportional controller.
(ii) Find the gain margin of the system when the operating gain
of the controller Kp = 2. Use Fig. 2 to read the required values
off the plot.
Proportional Controller Process R(S) Y() Figure 1: Unity Feedback Systems Consider again the system in Fig. 1. The plant transfer function...
Please solve as a MATLAB code.
A unity feedback closed loop control system is displayed in Figure 4. (a) Assume that the controller is given by G (s) 2. Based on the lsim function of MATLAB, calculate and obtain the graph of the response for (t) at. Here a 0.5°/s. Find the height error after 10 seconds, (b) In order to reduce the steady-state error, substitute G (s) with the following controller This is a Proportional-Integral (PI) controller. Repeat part...
