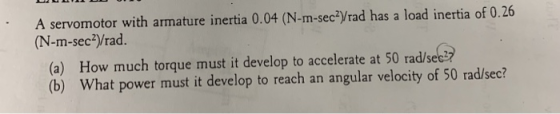

A servomotor with armature inertia 0.04 (N-m-sec Vrad has a load inertia of 0.26 (N-m-sec2)/rad (...
A bicycle wheel has an initial angular velocity of 1.5 rad/sec. Its angular acceleration is constant...
A bicycle wheel has an initial angular velocity of 1.5 rad/sec. Its angular acceleration is constant and equal to 0.2 rad/sec2. a) What is the angular velocity after it has turned through 3.5 revolutions? b) How long does it take for the wheels to reach this angular position? c) Find the average velocity.
QUESTION 11 At the instant shown, the 30-kg disk has a counterclockwise angular velocity of 10 rad/sec. Determine the angular acceleration of the disk at this instant (Hint: The polar mass moment...
QUESTION 11 At the instant shown, the 30-kg disk has a counterclockwise angular velocity of 10 rad/sec. Determine the angular acceleration of the disk at this instant (Hint: The polar mass moment of inertia 4.05 Kg.m2. O 10 rad/s 0.3 m ad/sec2 5.19 r 15.57 rad/sec2 30 rad/sec? None of the choices is correct
QUESTION 11 At the instant shown, the 30-kg disk has a counterclockwise angular velocity of 10 rad/sec. Determine the angular acceleration of the disk at this...
Otor shown below is controlled by the armature voltage va and load torque ease i ngular velocity ...
otor shown below is controlled by the armature voltage va and load torque ease i ngular velocity w, and ts is the back-emf generated by op a model (first order differential equation) of armature current i in terms velop a model (irst order differential equation) of motor output speed w in terms ta and w as state variables, and va and Ti as inputs, write the state equations the motor. complete the following of motor output speed w and input...
Figure Q1(b) shows the simplified diagram of the armature controlled D.C. b) servomotors used in instruments...
Figure Q1(b) shows the simplified diagram of the armature controlled D.C. b) servomotors used in instruments and employed a fixed permane nt magnet field. The control signal is app lied to the amature terminals. The inductance of armature winding is negligible. Obtain the transfer function of the servo mot or (assume K, K, and K, are constant) i) (10marks) Derive a state spa ce model for the servomotor (armature resistance is 0.2) (5marks) i) La Fixed field (if) Ra ww00...
5. A wheel has initially an angular velocity of 2.5 rad/s, with a moment of inertia...
5. A wheel has initially an angular velocity of 2.5 rad/s, with a moment of inertia of 225 kg m? If a torque of 170 N-m torque acts on a wheel. How many revolutions complete the wheel in 3.0 ss?
1. The pulley has a radius of 2.70 m and a moment of inertia of 39.0...
1. The pulley has a radius of 2.70 m and a moment of inertia of 39.0 kg·m2. The hanging mass is 4.20 kg and it exerts a force tangent to the edge of the pulley. What is the angular acceleration of the pulley? (answer needed in rad/s^2 2. A string is wound tight around the spindle of a top, and then pulled to spin the top. While it is pulled, the string exerts a constant torque of 0.150 N·m on...
2. A motor with armature moment of inertia,Ja 0.02 kg-m2, is directly coupled to a m ass Jı = 0.0...
2. A motor with armature moment of inertia,Ja 0.02 kg-m2, is directly coupled to a m ass Jı = 0.06 kg-m2. The motor is also con nected to a massless gearbox with N1-15 teeth on the input side and N2 75 teeth on the output side. Coupled to the gearbox output shaft is a load, J 1 kg m2. Refer to the figure, below It is desired to rotate the load three revolutions in 0.7 seconds using a trapezoidal velocity...
2. A motor with armature moment of inertia,Ja 0.02 kg-m2, is directly coupled to a m ass Jı = 0.0...
2. A motor with armature moment of inertia,Ja 0.02 kg-m2, is directly coupled to a m ass Jı = 0.06 kg-m2. The motor is also con nected to a massless gearbox with N1-15 teeth on the input side and N2 75 teeth on the output side. Coupled to the gearbox output shaft is a load, J 1 kg m2. Refer to the figure, below It is desired to rotate the load three revolutions in 0.7 seconds using a trapezoidal velocity...
A flywheel has a moment of inertia of 0.015 kg m?. a How much torque do...
A flywheel has a moment of inertia of 0.015 kg m?. a How much torque do you need to create an angular acceleration of 3 rad/s“ ? b With this torque, what would the angular speed be after 6 seconds? C What would the angular momentum be after 6 seconds? d What would the kinetic energy of rotation be after 6 seconds?
A wheel with a moment of inertia of 5 kg-m² is turning at an angular velocity...
A wheel with a moment of inertia of 5 kg-m² is turning at an angular velocity of » = 25 rad/s. If the wheel is subject to a net torque of t= -0.75 N•m, how much time does the wheel take to come to a stop? A. 6.67 s B. 1.3 s C. 166.7 s D. 23.3 s E. 147.1 s
QUESTION 11 At the instant shown, the 30-kg disk has a counterclockwise angular velocity of 10 rad/sec. Determine the angular acceleration of the disk at this instant (Hint: The polar mass moment of inertia 4.05 Kg.m2. O 10 rad/s 0.3 m ad/sec2 5.19 r 15.57 rad/sec2 30 rad/sec? None of the choices is correct
QUESTION 11 At the instant shown, the 30-kg disk has a counterclockwise angular velocity of 10 rad/sec. Determine the angular acceleration of the disk at this...
otor shown below is controlled by the armature voltage va and load torque ease i ngular velocity w, and ts is the back-emf generated by op a model (first order differential equation) of armature current i in terms velop a model (irst order differential equation) of motor output speed w in terms ta and w as state variables, and va and Ti as inputs, write the state equations the motor. complete the following of motor output speed w and input...
Figure Q1(b) shows the simplified diagram of the armature controlled D.C. b) servomotors used in instruments and employed a fixed permane nt magnet field. The control signal is app lied to the amature terminals. The inductance of armature winding is negligible. Obtain the transfer function of the servo mot or (assume K, K, and K, are constant) i) (10marks) Derive a state spa ce model for the servomotor (armature resistance is 0.2) (5marks) i) La Fixed field (if) Ra ww00...
5. A wheel has initially an angular velocity of 2.5 rad/s, with a moment of inertia of 225 kg m? If a torque of 170 N-m torque acts on a wheel. How many revolutions complete the wheel in 3.0 ss?
2. A motor with armature moment of inertia,Ja 0.02 kg-m2, is directly coupled to a m ass Jı = 0.06 kg-m2. The motor is also con nected to a massless gearbox with N1-15 teeth on the input side and N2 75 teeth on the output side. Coupled to the gearbox output shaft is a load, J 1 kg m2. Refer to the figure, below It is desired to rotate the load three revolutions in 0.7 seconds using a trapezoidal velocity...
2. A motor with armature moment of inertia,Ja 0.02 kg-m2, is directly coupled to a m ass Jı = 0.06 kg-m2. The motor is also con nected to a massless gearbox with N1-15 teeth on the input side and N2 75 teeth on the output side. Coupled to the gearbox output shaft is a load, J 1 kg m2. Refer to the figure, below It is desired to rotate the load three revolutions in 0.7 seconds using a trapezoidal velocity...
A flywheel has a moment of inertia of 0.015 kg m?. a How much torque do you need to create an angular acceleration of 3 rad/s“ ? b With this torque, what would the angular speed be after 6 seconds? C What would the angular momentum be after 6 seconds? d What would the kinetic energy of rotation be after 6 seconds?
A wheel with a moment of inertia of 5 kg-m² is turning at an angular velocity of » = 25 rad/s. If the wheel is subject to a net torque of t= -0.75 N•m, how much time does the wheel take to come to a stop? A. 6.67 s B. 1.3 s C. 166.7 s D. 23.3 s E. 147.1 s
