A 240V compound machine with resistances of armature, shunt and series winding are 0.06ohm, 24ohm, 0.002ohm respectively. The line current is 100A at 240V. find the Back EMF and the Armature current when the machine is connected as

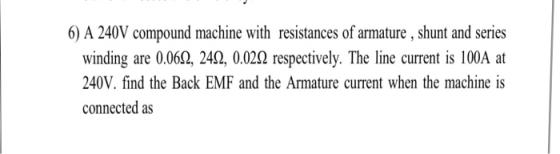

6) A 240V compound machine with resistances of armature, shun and series winding are 0.062, 242, 0.022 respectively. The line

connected as:
a. Long shunt compound motor.
b. Short shunt compound motor.
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Given, compound machint series resistance = ㅎ.02ΛΓ shant resistance = Zyn line VoHaRAv a)come ded as a Shot shJnk 006 項 0 0connected as, lorg shunt o 02 イse #24 40 24 Sh, Ia = 90 A 240 - Ea - 90 x (oo) Ea = 232.8V . Back e

0 0
Add a comment
Know the answer?
Add Answer to:
A 240V compound machine with resistances of armature, shunt and series winding are 0.06ohm, 24ohm...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • In a 110 V compound generator, the resistances of the armature, shunt and series windings are...

    In a 110 V compound generator, the resistances of the armature, shunt and series windings are 0.06 ohm, 25 ohm and 0.04 ohm respectively. The load current is 50 A at 120 V. Find the induced e.m.f. and the armature current when the machine is connected as (i) long-shunt and as (ii) short-shunt. How will the ampere-turns of the series field be changed in (i) if a diverter of 0.1 ohm be connected in parallel with the series winding? Allow...

  • In a 110 V compound generator, the resistances of the armature, shunt and series windings are...

    In a 110 V compound generator, the resistances of the armature, shunt and series windings are 0.06 ohm, 25 ohm and 0.04 ohm respectively. The load current is 50 A at 120 V. Find the induced e.m.f. and the armature current when the machine is connected as (i) long-shunt and as (ii) shortshunt. How will the ampere-turns of the series field be changed in (i) if a diverter of 0.1 ohm be connected in parallel with the series winding? Allow...

  • A) The input current to a 220 V, short-shunt compound motor at no load is 6 A. The shunt- field c...

    a) The input current to a 220 V, short-shunt compound motor at no load is 6 A. The shunt- field circuit resistance is 220 Ω; the armature resistance is 0.112, and the series-field resistance is 0.1 Ω, what is the stray power loss ? (b) Assume the input rating of the motor in Part (a) to be 66 A at 220 V with a no-load speed of 1000 rpm. If the stray power loss varies as the counter-electromotive force and...

  • A series of excitation DC motors have an armature winding resistance of 0.3 ohms, a field...

    A series of excitation DC motors have an armature winding resistance of 0.3 ohms, a field winding resistance of 0.1 ohms, a rotational speed of 650 rpm, a back emf is 120 V, and an armature current of 78 A. If the torque is constant, 0.6 ohms is connected in series with the armature, what is the speed of the motor after it is stabilized?

  • A 240V DC shunt motor runs at 800rpm at no load. Determine the resistance to be...

    A 240V DC shunt motor runs at 800rpm at no load. Determine the resistance to be placed in series with the field so that the motor runs at 950rpm when taking an armature current of 20A. The field resistance is 1600 and armature resistance is 0.40. Assume that the pole flux is proportional to the field current Additional Rf= A 240V DC shunt motor runs at 800rpm at no load. Determine the resistance to be placed in series with the...

  • A DC 220V shunt motor draws a no load current of 3.5A.Its armature and shunt resistances...

    A DC 220V shunt motor draws a no load current of 3.5A.Its armature and shunt resistances are: 0.25 and 440 ohms. At full load it draws a current of 65.5 A . Find the efficiency of machine at full load. pleas SHOW ALL WORK... i really need to learn it THANKS

  • Show all working 1. A 4 pole, 220 V, 10 H.P, d.c. shunt motor is rotating...

    Show all working 1. A 4 pole, 220 V, 10 H.P, d.c. shunt motor is rotating at a speed of 320 rpm. Then the developed useful torque is 2. A 4 pole, lap wound d.c. motor drawing an armature current of 20 A has 360 conductors. If the flux per pole is 0.015 Wb then the gross torque developed by the armature of motor is 3. A 220 V, d.c. motor draws an armature current of 20 A. Its armature...

  • A short shunt compound generator supplies 50kW at 230V. The shunt field, series field and armature...

    A short shunt compound generator supplies 50kW at 230V. The shunt field, series field and armature circuit resistances are 46 ohms, 0.02ohms and 0.01ohms respectively. The brush contact drop is 2V. Determine the percent voltage regulation. 3.73% b. 4.55% c. 3.88% d. 3.72% A DC series generator supplies a load of resistance of 1.4 ohms through a pair of feeder conductors of total resistance of 0.1ohms . The voltage at the DC generator terminal is 120 V. What is pd...

  • 3. A 20kW, 250V, 1000rpm shunt excited dc motor has armature and field resistances of 0.2...

    3. A 20kW, 250V, 1000rpm shunt excited dc motor has armature and field resistances of 0.2 ohm and 2002. When the motor takes 80A rated current at rated conditions. Draw the equivalent circuit and calculate induced torque at 1200rpm. Explain the starting current limiting methods for DC motors. (30 pts) 4. Explain the conditions for parallel operation of synchronous generators. A three phase, wye connected, synchronous generator is rated 150 MW, 0.85 lagging power factor, 12.6 kV, 60 Hz, and...

  • 1. A 300 V compound motor has armature resistance 0.18 Ω, series field resistance 0.3 Ω...

    1. A 300 V compound motor has armature resistance 0.18 Ω, series field resistance 0.3 Ω and shunt field resistance 100 Ω. The rotational losses are 200 W. On full load the line current is 25 A and the motor runs at 1800 rpm. Determine: (i) the developed mechanical power (ii) the output power (iii) the output torque (iv) the efficiency at full load 2. A 120 V series motor has 0.2 Ω field resistance. On full load, the line...
