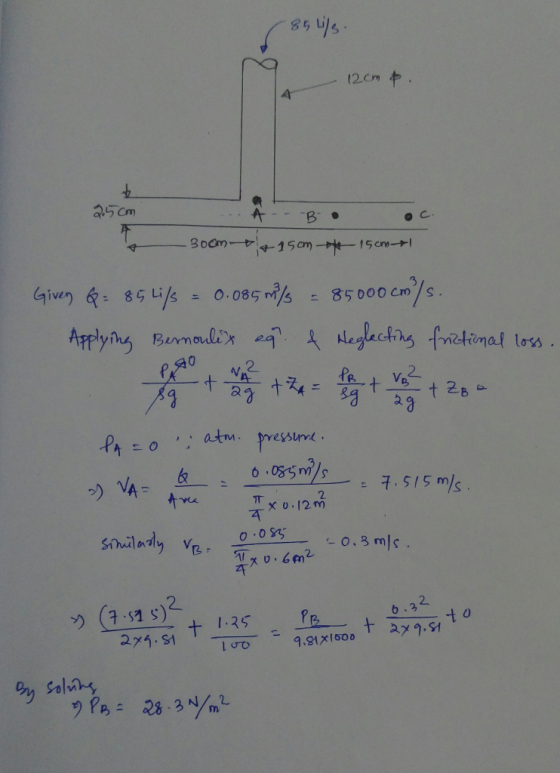

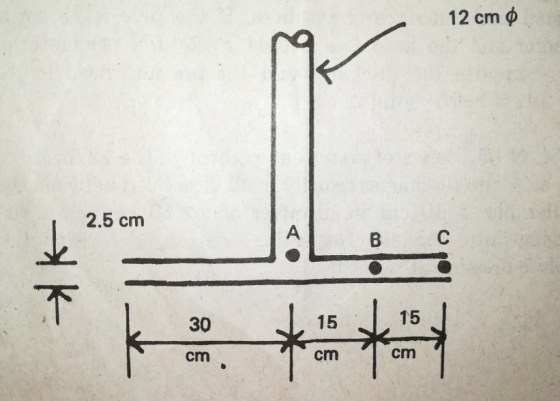

In figure shown, 85 Li/s of water enter through the 12cm diameter pipe at A and discharges radially in all directions between the circular plates 60cm in diameter and 2.50cm apart, discharging into the air. Neglecting friction, determine the absolute pressure at point B.
Answer : 96.40kPa (Absolute)
Please show your solutions here. Thanks.
