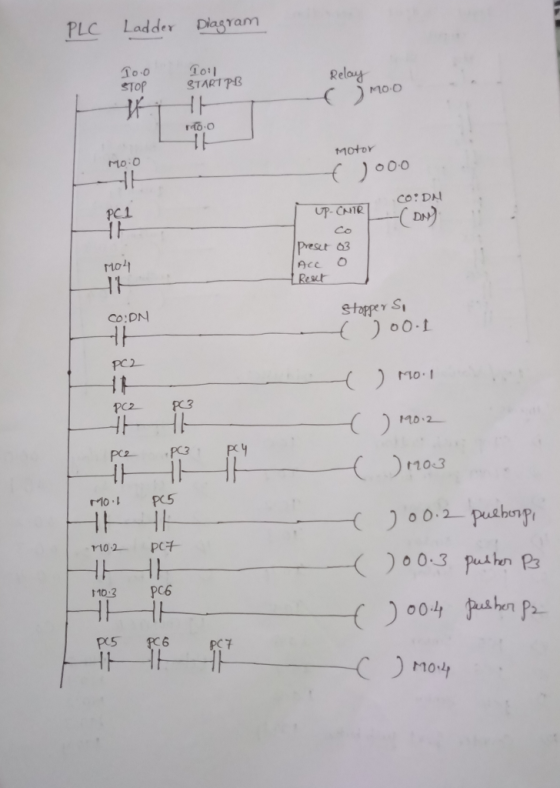

Please solve using plc ladder diagram and show its input output connections Its a complete Questi...

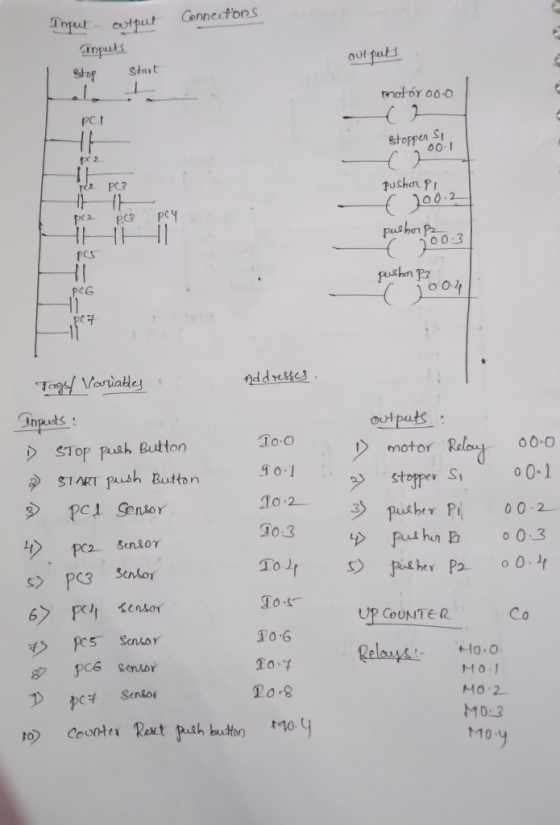

please solve using plc ladder diagram and show its input output connections

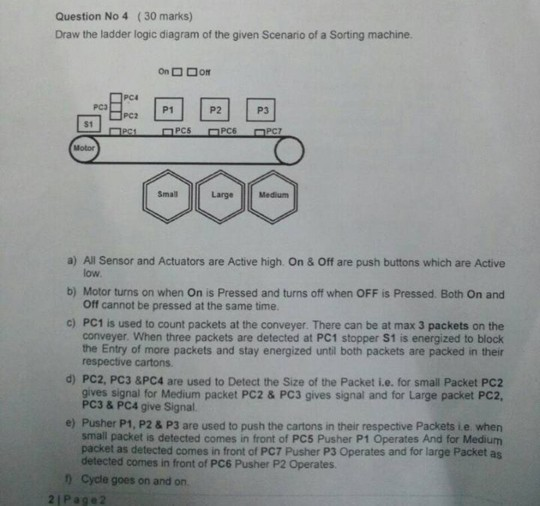

Its a complete Question which came in our last paper. Its not incomplete so please solve it
Homework Answers
Add Answer to:
Please solve using plc ladder diagram and show its input output connections Its a complete Questi...
Consider a PLC system with the following inputs and outputs. Design a ladder diagram using one an...
Consider a PLC system with the following inputs and outputs. Design a ladder diagram using one and only one counter instruction and as many timers as you need that does the following: 9. Every time S1 is turned from off to on, it causes a counter to increment its accumulated value. . Any time that S1 stays on for 10 seconds, PL1 should light until $1 is turned back off " Any time that S1 is on, PL2 flashes on...
solve only question 1 please !!!! 1-Take the following system with the input x, and output...
solve only question 1 please !!!!
1-Take the following system with the input x, and output y, y(n) = x(n) + 2x(n − 1) + 2x(n − 2) + x(n − 3). Find its output, if 2(n) = cos(won), , and . Is this system a filter, and if so what kind? where wo, takes values of 0, 2-Take the following system with the input x, and output y, y(n) = cy(n − 1) + x(n). Take y(n) = 0,...
please solve these two questions. Please 1-Take the following system with the input x, and output...
please solve these two questions. Please
1-Take the following system with the input x, and output y, y(n) = x(n) + 2x(n − 1) + 2x(n − 2) + x(n − 3). Find its output, if 2(n) = cos(won), , and . Is this system a filter, and if so what kind? where wo, takes values of 0, 2-Take the following system with the input x, and output y, y(n) = cy(n − 1) + x(n). Take y(n) = 0,...
please solve all the questions Q1 (30 pts) Design a state-based PLC program to control a...
please solve all the questions
Q1 (30 pts) Design a state-based PLC program to control a motor. The system specification is as follows. • Press a normally open push button, the motor will start. Motor stop will stop after 5 minutes or a normally close push button is pressed. . When the motor is running, a read light is ON. When the motor is stopped, a green light is ON. Use the "Fail Safe" concept, i.e., if the wire of...
