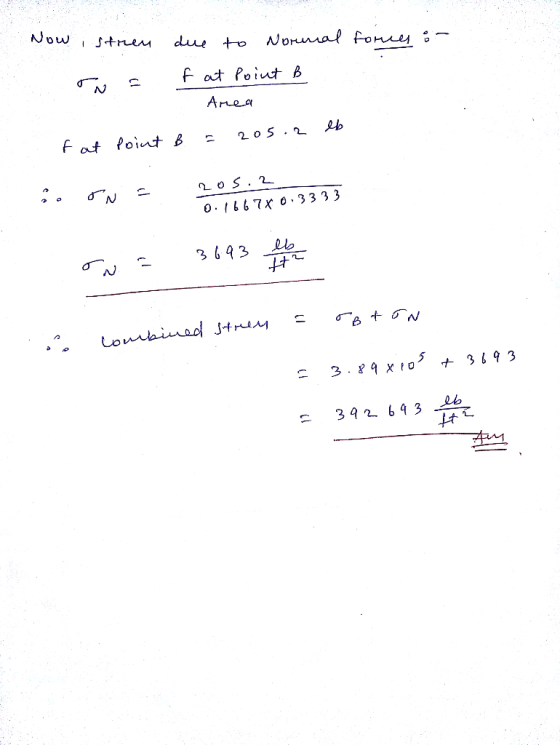

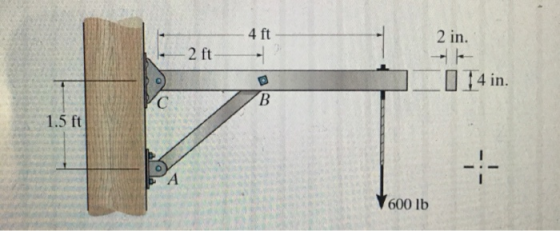

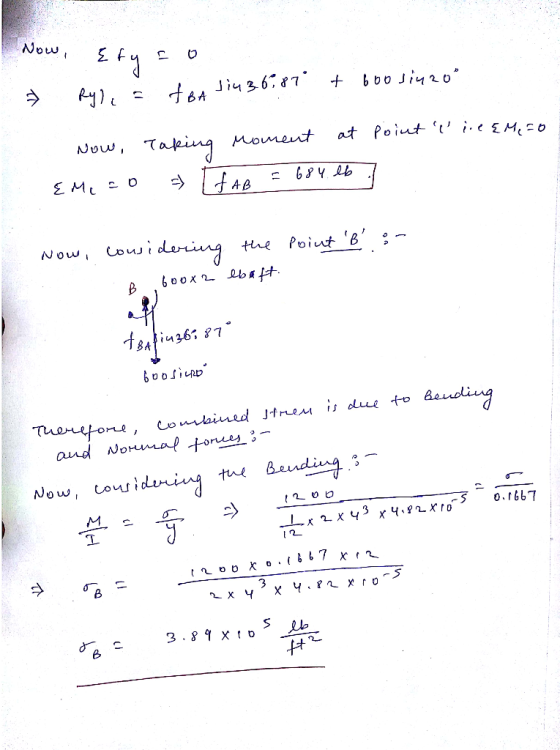

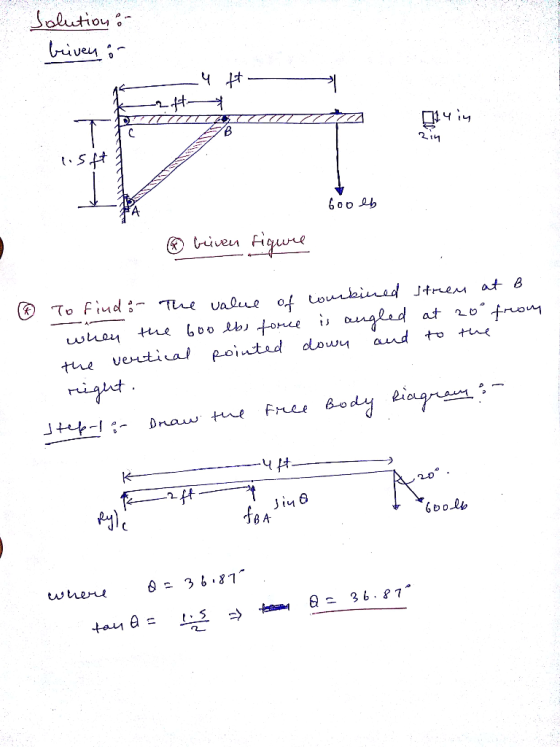

determine the combined stress AT B when the 600lbs force is
angled at 20 degrees from vertical pointed down and to the right .
thank you
Homework Answers
Add Answer to:
Determine the combined stress AT B when the 600lbs force is angled at 20 degrees from vertical po...
H G 300 lb 2 ft Question 3 (20 points) Determine the force in members BC,...
H G 300 lb 2 ft Question 3 (20 points) Determine the force in members BC, CJ, IJ, CH, and CD of the truss. State if the members are in tension or compression. B с D E F TISA -1.5 ft -1.5 -1.5 1.5 - 1000 lb 1200 lb 1200 lb 1200 lb 1200 lb
For each of the following trusses, determine the force in each member of the truss, and...
For each of the following trusses, determine the force in each member of the truss, and state if the members are in tension or compression. 3 kN 1.5 m V 0 = 30° В 2 m — 2m — 4 kN 6 ft- 8ft 8 ft 500 lb Тв 100 lb 800 lb 600 lb 60° 3 ft
K H G 300 lb o Question 3 (20 points) Determine the force in members BC,...
K H G 300 lb o Question 3 (20 points) Determine the force in members BC, CJ, IJ, CH, and CD of the 2 ft truss. State if the members are in tension or compression. с B D F ΙΕ -1. Sft -1.5 ft -1.5 tt-1.56 1.5 -- 1000 lb 1200 lb 1200 lb 1200 lb 1200 fb
Question: An initially stationary block of mass 0.5kg is on an incline angled 20° above the...
Question: An initially stationary block of mass 0.5kg is on an incline angled 20° above the horizontal. When released, it slides down the frictionless incline undergoing a vertical displacement of 4m and then travels across a rough horizontal surface to a spring constant 600 N/m. The block compresses the spring 20 cm from its equilibrium position before momentarily coming to a stop. A.) How fast was the block moving when it was at the base of the incline? B.) How...
A sled with mass 30 kg slides 40 m down a hill angled at 20 degrees...
A sled with mass 30 kg slides 40 m down a hill angled at 20 degrees to the horizontal. The coefficient of friction between the sled and the ground is 0.2. a) How much work does gravity do on the sled? b) How much work does the normal force do on the sled? c) How much work does friction do on the sled? d) What is the net work done on the sled e) if the sled begins at rest...
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position. The bar is subjected to a couple moment of M=20 [lb-ft] and a force F=50[l b], which is always perpendicular to the end of bar. Also, the spring is attached to bar at distance L / 2 from point A, and has unstretched length of l0=1.2[ft]. The spring remains in horizontal position throughout the motion due to the roller guide at B. Determine angular velocity of...
Bar ADB is supported by a thrust bearing at A and a vertical wire at B....
Bar ADB is supported by a thrust bearing at A and a vertical wire at B. Knowing that Fis vertical with a magnitude of F = 130 lb and that the section of bar from Dto Bis L - 1.9 ft long, determine the tension in the wire and the reactions at A. Enter the magnitude of the reaction Max below. Express you answer in ft-lb to the nearest whole ft·lb. 6 ft 1.5 ft Your written solution must include...
A, B and C. Assume (a) For the soil profile shown below, determine the effective stress...
A, B and C. Assume (a) For the soil profile shown below, determine the effective stress at points (b If the effective grain size of the silt is D -o 02 mm estimate the maximum height of capillary all of tho silt above the GWT is moist but not saturated. rise in the silt in units of feet. Soil Surface Clean Coarse118 lb/t Sand 22 lb/t 7 ft ds203 b/t ?'c = 4 3 20.11 lb/ft2 hc = 13 ft...
[15%] QUESTION 3 Determine the moment of the force F about the door hinge at B....
[15%] QUESTION 3 Determine the moment of the force F about the door hinge at B. 4 ft 7 ft F=80 lb 15 ft 45。 1.5 ft 5 ft 3 ft
Planar Kinetics of a Rigid Body: Force and Acceleration 2. A cylinder weighing 600-lb is lifted by a using the mechanism shown. The two rotating drums turn as a single unit about their center of mass...
Planar Kinetics of a Rigid Body: Force and Acceleration 2. A cylinder weighing 600-lb is lifted by a using the mechanism shown. The two rotating drums turn as a single unit about their center of mass at O and they have a combined weight of 300-lb and a radius of gyration about O of 1.5 ft. If the motor at A pulls the cord with a constant tension P-450 lb: A) NEATLY draw an accurate free-body diagram and kinetic diagram...
H G 300 lb 2 ft Question 3 (20 points) Determine the force in members BC, CJ, IJ, CH, and CD of the truss. State if the members are in tension or compression. B с D E F TISA -1.5 ft -1.5 -1.5 1.5 - 1000 lb 1200 lb 1200 lb 1200 lb 1200 lb
For each of the following trusses, determine the force in each member of the truss, and state if the members are in tension or compression. 3 kN 1.5 m V 0 = 30° В 2 m — 2m — 4 kN 6 ft- 8ft 8 ft 500 lb Тв 100 lb 800 lb 600 lb 60° 3 ft
K H G 300 lb o Question 3 (20 points) Determine the force in members BC, CJ, IJ, CH, and CD of the 2 ft truss. State if the members are in tension or compression. с B D F ΙΕ -1. Sft -1.5 ft -1.5 tt-1.56 1.5 -- 1000 lb 1200 lb 1200 lb 1200 lb 1200 fb
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position. The bar is subjected to a couple moment of M=20 [lb-ft] and a force F=50[l b], which is always perpendicular to the end of bar. Also, the spring is attached to bar at distance L / 2 from point A, and has unstretched length of l0=1.2[ft]. The spring remains in horizontal position throughout the motion due to the roller guide at B. Determine angular velocity of...
Bar ADB is supported by a thrust bearing at A and a vertical wire at B. Knowing that Fis vertical with a magnitude of F = 130 lb and that the section of bar from Dto Bis L - 1.9 ft long, determine the tension in the wire and the reactions at A. Enter the magnitude of the reaction Max below. Express you answer in ft-lb to the nearest whole ft·lb. 6 ft 1.5 ft Your written solution must include...
A, B and C. Assume (a) For the soil profile shown below, determine the effective stress at points (b If the effective grain size of the silt is D -o 02 mm estimate the maximum height of capillary all of tho silt above the GWT is moist but not saturated. rise in the silt in units of feet. Soil Surface Clean Coarse118 lb/t Sand 22 lb/t 7 ft ds203 b/t ?'c = 4 3 20.11 lb/ft2 hc = 13 ft...
[15%] QUESTION 3 Determine the moment of the force F about the door hinge at B. 4 ft 7 ft F=80 lb 15 ft 45。 1.5 ft 5 ft 3 ft
Planar Kinetics of a Rigid Body: Force and Acceleration 2. A cylinder weighing 600-lb is lifted by a using the mechanism shown. The two rotating drums turn as a single unit about their center of mass at O and they have a combined weight of 300-lb and a radius of gyration about O of 1.5 ft. If the motor at A pulls the cord with a constant tension P-450 lb: A) NEATLY draw an accurate free-body diagram and kinetic diagram...
