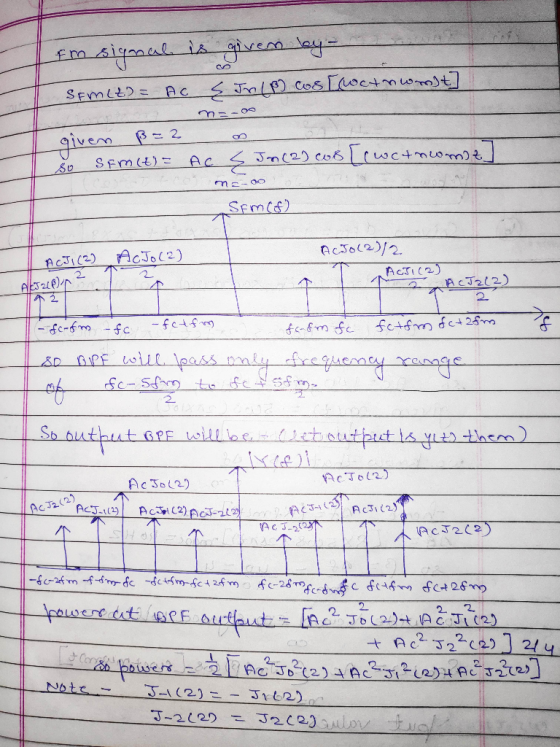

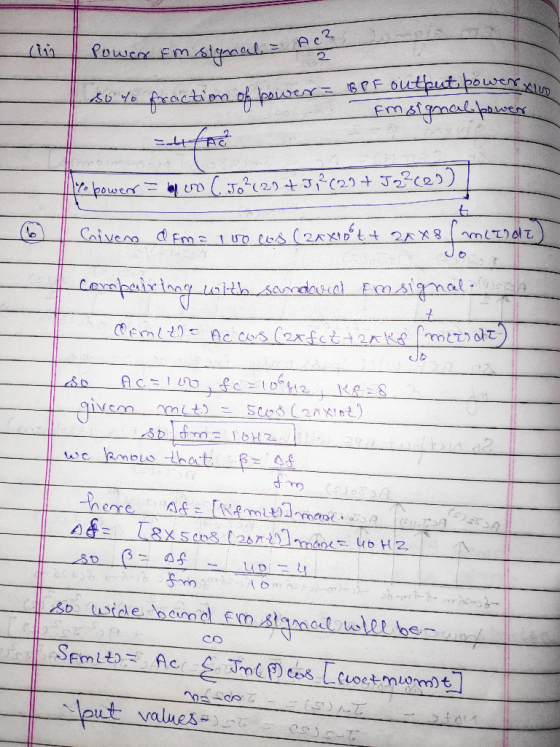

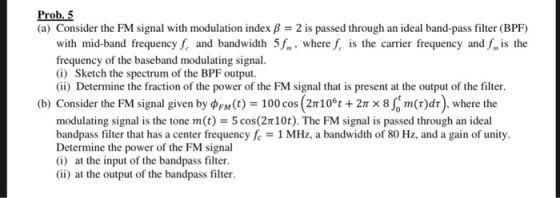

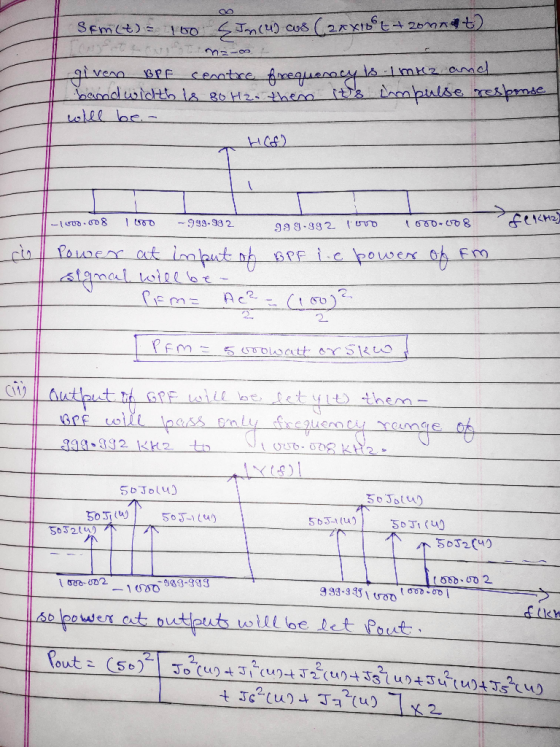

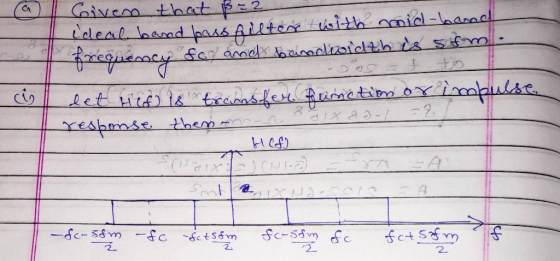

Prob. 5 (a) Consider the FM signal with modulation index B 2 is passed through an ideal band-pass...
3. The below signal is to be passed through the ideal lowpass filter below after modulation. What...
3. The below signal is to be passed through the ideal lowpass filter below after modulation. What is the maximum modulating frequency oe that can be used without distorting the signal? 10 Marks e(t) y(t) x(t) Lowpass Filter cos(wet) Carrier
3. The below signal is to be passed through the ideal lowpass filter below after modulation. What is the maximum modulating frequency oe that can be used without distorting the signal? 10 Marks e(t) y(t) x(t) Lowpass Filter cos(wet) Carrier
A single tone message signal, m(t) = 2 cos(211 X 1000 t), (freq. is in Hz)...
A single tone message signal, m(t) = 2 cos(211 X 1000 t), (freq. is in Hz) is applied to an FM modulator with the following parameters: Amplitude of the Carrier = 10 (V), Carrier Frequency = 100 (kHz), Frequency sensitivity factor = kx = 103 (Hz/Volt). The modulated signal s(t) is passed through a bandpass filter centered at 102 (kHz) with a bandwidth of 3(kHz), and the output signal sf(t) is obtained. (a) Express the output of the filter, sf(t)...
a. For the wideband FM signal given by SFM(t) = cos[2πfct+ 3sin2π25t]
a. For the wideband FM signal given by SFM(t) = cos[2πfct+ 3sin2π25t], draw only positive side of the spectrum, (from n=-5 to n=+5). Assume the carrier frequency (fc) of 1 KHz. Hint: First calculate β by comparing the signal with SFM(t) equation b. The FM signal of part (a) is passed through a bandpass filter centered at 1 KHz with a bandwidth of 210 Hz, as shown below. Draw the new spectrum and calculate the bandwidth and power of the filtered FM...
Please solve problem 4.5-2 ( a,b, and c) and be clear when you write by your hand.
Please solve problem 4.5-2 ( a,b, and c) and be clear when you
write by your hand.

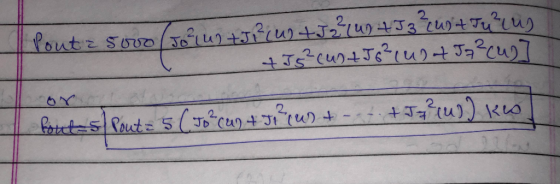

Problems Figure P.4.5-2 HI(f) ed 0.5 f, MHz 1.496 1.499 1.5 1.501 Figure P.4.5-3 Bandpass filter l us shoWn in Hz. Fig. P4.5-1. The carrier frequency is fe 10 kHz and the baseband signal bandwidth is 4k Find the corresponding transfer function of the equalizer filter Ho) shown in the receiver Fig. 4.21. Hint: Use Eq. (4.25). Figure P.4.5-1 H,(o) 0 9 10...
The following periodic signal is input to an ideal low pass filter of bandwidth 25 KHz. 1. x(t) 2...
The following periodic signal is input to an ideal low pass filter of bandwidth 25 KHz. 1. x(t) 2 a) Determine the average power of the signal x(t). b) If T 0.1 ms, give the output of the filter as a function of time, y(t) e) Determine the average power of the signal y(t) d) Determine the bandwidth of the signal y(), considered as a baseband signal. e) Now assume that the signal x() (with T-0.1 ms) is instead input...
) frequency modulatea100KHz carrier to produce the fl loo p narrowband FM signal: 120 pts PrBndt)...
find value of flo????
) frequency modulatea100KHz carrier to produce the fl loo p narrowband FM signal: 120 pts PrBndt) _ 5 cos (2a2. 10st + 0.0025 sin 2π 104t ) agram design) the wideband FM signal wrt) with carmer frequency of 100 MHz and a (peak) frequency deviation of So R Frequency Multipliers of any value following are available for the design Assume that the frequency can be tuned to any value between 200 나 A local oscillator whose...
(14%) 6. Consider an FM modulator with output )-100 cos(2(1000)r+(0) The modulator operates with fa = 8 and has the input message signal The modulator is followed by a bandpass filter with a...
(14%) 6. Consider an FM modulator with output )-100 cos(2(1000)r+(0) The modulator operates with fa = 8 and has the input message signal The modulator is followed by a bandpass filter with a a bandwidth of 56HZ, as shown in the following figure. Determine the power ratio and the power at the fiter oput center frequency of 1000HZ and Bandpass filter PM Output Center 1000 Hz Bandwidth 56 Hz mt-5 cos 2(8)r modulator -1000 Hz (a) FM system 39.1 39.1365...
3.(30 points) Pulse Code Modulation A-to-D Ideal Lowf Pass Filter xit)- #x) cos(2rfet) (10 points...
3.(30 points) Pulse Code Modulation A-to-D Ideal Lowf Pass Filter xit)- #x) cos(2rfet) (10 points) Consider the system in the above figure. The ideal low pass filter is one which has a brick-wall frequency response (or an ideal sinc function for its impulse response). If the bandwidth of the ideal low pass filter is IkHz and B 2kHz is the bandwidth of a bandpass signal x(t) that is centered at fo 19700Hz, determine the minimum sampling rate fs to avoid...
[MATLAB Scriptfile task] Design N-band tone vocoder with a given figure (below) in MATLAB implementing the...
[MATLAB Scriptfile task]
Design N-band tone vocoder with a given figure (below) in MATLAB
implementing the given script file(bands_cutoff). This program
should be able to process any sound(.wav) file. Then, graph the
band-passed signals and amplitude envelopes extracted(after
rectification and low-pass filtering) and waveforms of the original
sound and vocoded sound. Additionally, using the output of the
script file, make spectrograms of the original sound and the
synthesized sound.
Bandpass filter Modulation Band-limiting Envelope detection BPF RECT LPF BPF sine...
[MATLAB Scriptfile task] Design N-band tone vocoder with a given figure (below) in MATLAB implementing the...
[MATLAB Scriptfile task]
Design N-band tone vocoder with a given figure (below) in MATLAB
implementing the given script file(bands_cutoff). This program
should be able to process any sound(.wav) file. Then, graph the
band-passed signals and amplitude envelopes extracted(after
rectification and low-pass filtering) and waveforms of the original
sound and vocoded sound. Additionally, using the output of the
script file, make spectrograms of the original sound and the
synthesized sound.
Bandpass filter Modulation Band-limiting Envelope detection BPF RECT LPF BPF sine...
3. The below signal is to be passed through the ideal lowpass filter below after modulation. What is the maximum modulating frequency oe that can be used without distorting the signal? 10 Marks e(t) y(t) x(t) Lowpass Filter cos(wet) Carrier
3. The below signal is to be passed through the ideal lowpass filter below after modulation. What is the maximum modulating frequency oe that can be used without distorting the signal? 10 Marks e(t) y(t) x(t) Lowpass Filter cos(wet) Carrier
A single tone message signal, m(t) = 2 cos(211 X 1000 t), (freq. is in Hz) is applied to an FM modulator with the following parameters: Amplitude of the Carrier = 10 (V), Carrier Frequency = 100 (kHz), Frequency sensitivity factor = kx = 103 (Hz/Volt). The modulated signal s(t) is passed through a bandpass filter centered at 102 (kHz) with a bandwidth of 3(kHz), and the output signal sf(t) is obtained. (a) Express the output of the filter, sf(t)...
Please solve problem 4.5-2 ( a,b, and c) and be clear when you
write by your hand.
Problems Figure P.4.5-2 HI(f) ed 0.5 f, MHz 1.496 1.499 1.5 1.501 Figure P.4.5-3 Bandpass filter l us shoWn in Hz. Fig. P4.5-1. The carrier frequency is fe 10 kHz and the baseband signal bandwidth is 4k Find the corresponding transfer function of the equalizer filter Ho) shown in the receiver Fig. 4.21. Hint: Use Eq. (4.25). Figure P.4.5-1 H,(o) 0 9 10...
The following periodic signal is input to an ideal low pass filter of bandwidth 25 KHz. 1. x(t) 2 a) Determine the average power of the signal x(t). b) If T 0.1 ms, give the output of the filter as a function of time, y(t) e) Determine the average power of the signal y(t) d) Determine the bandwidth of the signal y(), considered as a baseband signal. e) Now assume that the signal x() (with T-0.1 ms) is instead input...
find value of flo????
) frequency modulatea100KHz carrier to produce the fl loo p narrowband FM signal: 120 pts PrBndt) _ 5 cos (2a2. 10st + 0.0025 sin 2π 104t ) agram design) the wideband FM signal wrt) with carmer frequency of 100 MHz and a (peak) frequency deviation of So R Frequency Multipliers of any value following are available for the design Assume that the frequency can be tuned to any value between 200 나 A local oscillator whose...
(14%) 6. Consider an FM modulator with output )-100 cos(2(1000)r+(0) The modulator operates with fa = 8 and has the input message signal The modulator is followed by a bandpass filter with a a bandwidth of 56HZ, as shown in the following figure. Determine the power ratio and the power at the fiter oput center frequency of 1000HZ and Bandpass filter PM Output Center 1000 Hz Bandwidth 56 Hz mt-5 cos 2(8)r modulator -1000 Hz (a) FM system 39.1 39.1365...
3.(30 points) Pulse Code Modulation A-to-D Ideal Lowf Pass Filter xit)- #x) cos(2rfet) (10 points) Consider the system in the above figure. The ideal low pass filter is one which has a brick-wall frequency response (or an ideal sinc function for its impulse response). If the bandwidth of the ideal low pass filter is IkHz and B 2kHz is the bandwidth of a bandpass signal x(t) that is centered at fo 19700Hz, determine the minimum sampling rate fs to avoid...
[MATLAB Scriptfile task]
Design N-band tone vocoder with a given figure (below) in MATLAB
implementing the given script file(bands_cutoff). This program
should be able to process any sound(.wav) file. Then, graph the
band-passed signals and amplitude envelopes extracted(after
rectification and low-pass filtering) and waveforms of the original
sound and vocoded sound. Additionally, using the output of the
script file, make spectrograms of the original sound and the
synthesized sound.
Bandpass filter Modulation Band-limiting Envelope detection BPF RECT LPF BPF sine...
[MATLAB Scriptfile task]
Design N-band tone vocoder with a given figure (below) in MATLAB
implementing the given script file(bands_cutoff). This program
should be able to process any sound(.wav) file. Then, graph the
band-passed signals and amplitude envelopes extracted(after
rectification and low-pass filtering) and waveforms of the original
sound and vocoded sound. Additionally, using the output of the
script file, make spectrograms of the original sound and the
synthesized sound.
Bandpass filter Modulation Band-limiting Envelope detection BPF RECT LPF BPF sine...
