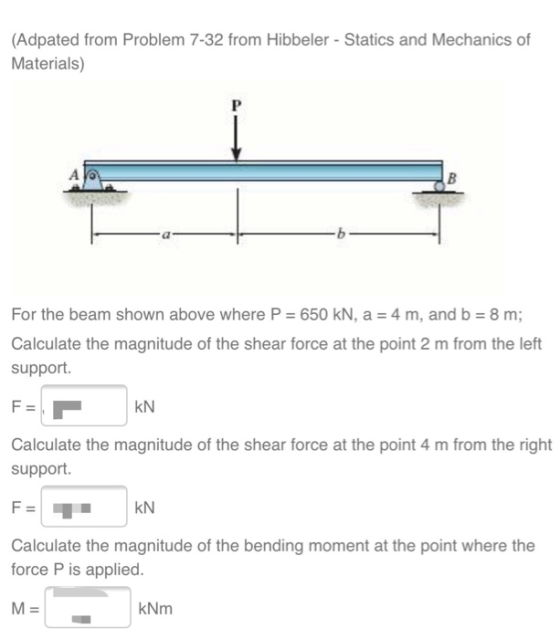

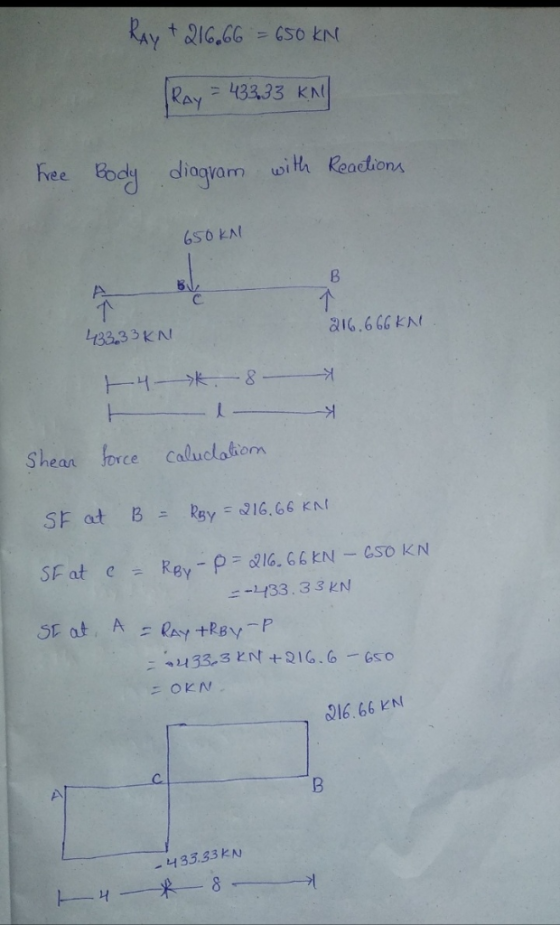

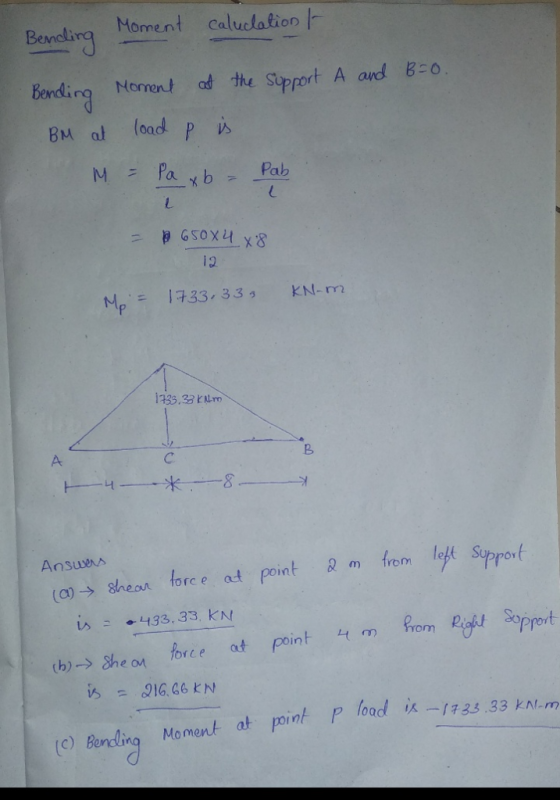

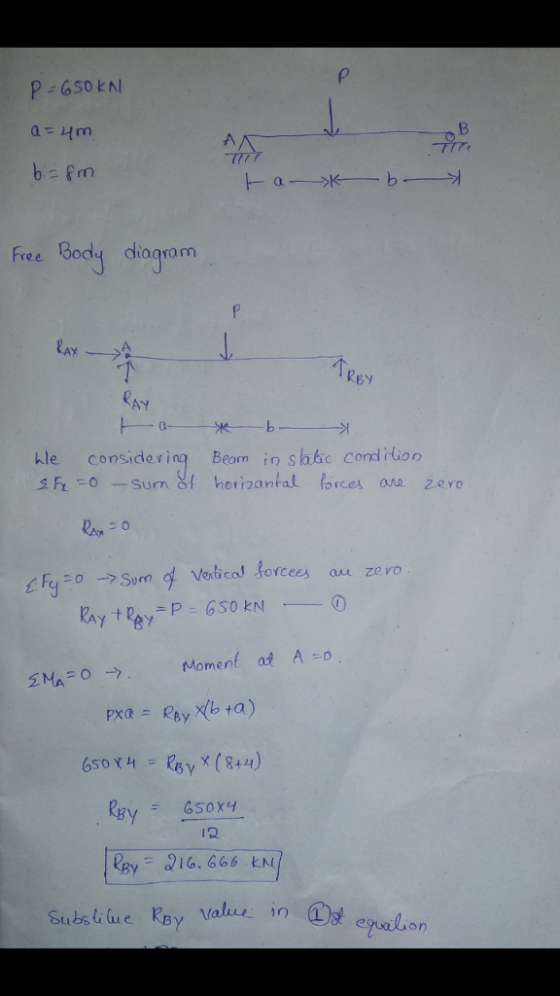

(Adpated from Problem 7-32 from Hibbeler - Statics and Mechanics of Materials) For the beam shown...
Shear and Bending Moment
Problem 7.81 Engineering Mechanics Statics
7-81. The beam consists of three segments pin connected at B and E.Draw the shear and moment diagrams for the beam. 9 kN/m IDE 4.5m -2 m-t-2 m-t-2 m- 4m- Prob. 7-81
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all significant points on each diagram and identify the maximum moments along with their respective locations. Additionally: (a) Determine V and M in the beam at a point located 1.50 m to the right of B. (b) Determine Vand M in the beam at a point located 1.25 m to the left of D. Leta - 3.0m, b = 6.1 m,w = 38 kN/m,...
A loaded beam with a pin support at B and a rller support at C is shown in Figure 1. The applied loads on the beam are: an anti-clockwise point moment at A, a variably distributed load between B and C, and a clockwise point moment at D g kN/m f kNm h kN m A C 4 m 2 m 2 m Figure 1 The magnitude of the anti-clockwise point moment f in units of kN'm can be found...
For the beam shown below, determine (1) magnitude of the bending
moment at the pin support A; and (2)the magnitude of shear force at
the immediate right side of the pin support A.
For the beam shown below, determine (1) magnitude of the bending moment at the pin support A; and (2) the magnitude of shear force at the immediate right side of the pin support A. 2 kN/m 1.5 kN 30° 1.2 m 0.6 1.2 m 1.8 m 1.2...
The number of significant digits is set to 3
A positive internal shear force V • acts downward on the right-hand face of a beam. • acts upward on the left-hand face of a beam. A positive internal bending moment M • acts counterclockwise on the right-hand face of a beam. • acts clockwise on the left-hand face of a beam. = = Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all...
A simply support beam is loaded as shown in the following figure. 1) Draw the shear force and bending moment diagrams. 2) Calculate the maximum bending stress in the beam. 3) Calculate the maximum shear stress in the beam. G0 KN 30 kNm B0 kN/m H NA 0.1 m 3 m e 1.5m to 1.5m. 0.1 m
Engineering Statics question?
The following beam has a fixed support at A. The right end is free. w- 9 kN/m Mc-3 kN-m TU Mc 1m VB" represents the shear force and MB the moment. The internal shear and moment at point B in the beam are most nearly: O A) VB = 18 kN, MB =-1.5 kN-m O B) VB = 27 kN, MB =-10.5 kN-m O c) Vg-4.5 kN, MB--3 kN-m
The figure below depicts the cantilever beam. Determine the magnitudes of bending moment (M) in kNm, axial stress() in kN/m2, and shear force (V) in kN acting at point A. The equation for finding the axial stress is = Axial load / cross-section area. Cable XX XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXI BT Beam (0.2 m × 0.2 m) Frictionless Pulley 3 m 50 kN Select one: a Bending moment (M) = 150 kNm, Shear force = 50 kN and axial stress = 1250 kN/m2...
As shown in Figure 8, the structural member (beam) is 7m long, carries a 2 kN point load, a 1.2 kN/m uniformly distributed load and is supported at points A and B. The beam is constructed from two pieces of steel plate (2 at 80mm x 8mm) that are welded together with 3mm welds. Section properties for the beam are also listed. Given the support reactions as RAv 5.8 kN and RBv 2.2 kN, as well as the shear force...
